Product Name:

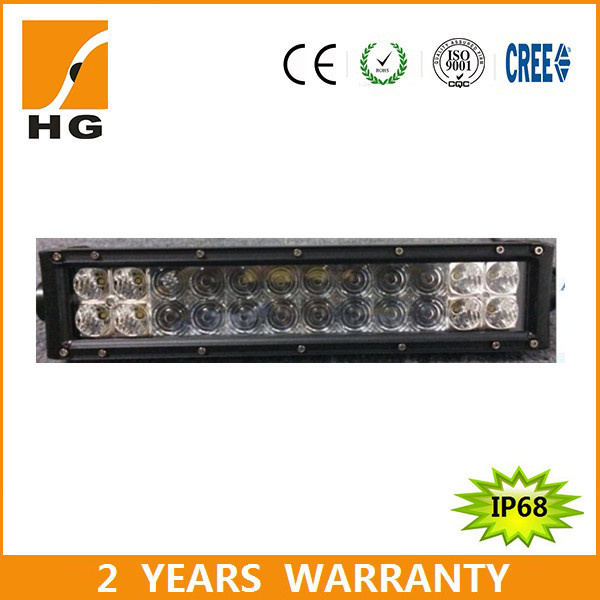

120W Waterproof Double Row 22inch LED Light Bar LED Work Light
Specifications:
Type: led light bar
Beam:spot/flood/combo beam
LED Chip:Cree LEDs
Certificate: CE,IP68,SGS,ROHS
24 months warranty
certificate: we have CE,SGS,ROHS certificate, high quality product with IP68 waterproof
| Part name | HG-8625D-120W |
| Beam Pattern | Spot/Flood/Combo beam |
| LED power | 120W with 3W Each CREE LED |
| Operating Voltage | 10-30V DC |
| Color Temperature | 6000k |
| Housing Color |
Black |
Materical | Diecasting aluminum alloy housing |
| Mounting Bracket | Alu firm Bracket |
| Shape | double row straight/curved led light bar |
| Working Life | 3000 hours above life time |
| Lens | PC |
| Waterproof rate | IP68 |
| Lumen | 85lm/led |
| Features | 3w each cree led CE approved Cree chip IP68 waterproof led light bar,Current draw change with your working voltage and power |
| Cup | flower cup |
Specifications:
. Wide operating voltage range: It can apply to different types of vehicles.
. Long life: More than ordinary advanced LED light bulbs, more than 30000 hours life.
. Aluminum casing, shock-proof waterproof better.
. Light perception: A softer light to prevent glare.
. Waterproof and anti-corrosion: It can in the rain or harsh environments.
. Lumen is 80-120LUMEN / W, much higher than ordinary halogen 20-30LUMEN / W.
Our advangtages:
(1).We have a strong core competitiveness,high quality and low price.
(2).We have strong technology,you can indentify our product from the color of the light uniformity,brightness and chip.
(3).All our circuit board adopts mechanial welding in the all dust workshop,and the product have the highest waterproof and heat dissipation.
(4).We have the most professinal quality inspection team,all products must pass through the professional inspection then placing on the market.
. 2 year limited warranty.
Available Size of 8625D Double row straight/curved Series(spot/flood/combo beam):
| Model No. | Power | Size | Unit Price(straight) | Unit price(curved) |
| HG-8625D-36W | 36W | 204*90*120mm 8inch | $19.17 | $22.17 |
| HG-8625D-72W | 72W | 357*90*120mm 14inch |
$32.5 | $37.5 |
| HG-8625D-120W | 120W | 561*90*120mm 22nch | $50.83 | $60 |
| HG-8625D-180W | 180W | 816*90*120mm 32nch | $72.5 | $84.67 |
| HG-8625D-240W | 240W | 1071*90*120mm 42inch | $95.83 | $111.33 |
HG-8625D-288W
| 288W | 1275*90*120mm 50inch | $110.83 | $129.17 |
HG-8625D-300W
| 300W | 1325*90*120mm 52inch | $116.67 | $141.67 |
Packaging$shipping led light bar
| Packaging | Standard Neutral Packing by Cartons,stronger exporting package |
| Delivery | 3-15 working days |
shipments of delivery: samples within 3 working days, 7-25 working days for bulk order
we will ship by express,by air ,or by sea ,specific shipment is according to the weight of goods ,We will choose the most suitable way for you according to your requirment!
Our Services:
1. Sample order is okay if you need it,but you need to pay for the sample and the freight cost.
2.We will give you our vip price if you are our regular customers .
3.Let us know If your order is urgent,we will choose the quickest delivery for you.
4.We will be online all the time,if there's no one answering,just leave a message,and we will give you reply as soon as possible.
5.we offer logo print service, customized sticker & packing box , we also accept custom led design.
Warranty:
our warranty is 2 years, if there is any warranty issues in the first years ,simply contract us with photos ,and we will change a new one for you after confirmed ;nd ian the second year,we may provide the accessories and help you to fix it.
Company information:(1).Huiguang Lighting Co,ltd is one of the leading professional led auto lamps
Manufacturers which is specialized in manufacturing , R&D and distributing led work light, led light bars,led driving light,led emergency lamps and so on led lights series.(2).Our company registered capital of 20 million,our company have a strong strength,we have professional manufacturing shop and technology. We produce lights in strict accordance with the SMT workshop ,all of our circuit board adopt mechanical welding in the all dustproof workshop to promise the quality,and all of lights must be passed the waterproof test,aging test, salt spray test, high and low temperature test, light type test and shock test to prolong their service life and make their highest quality.Company information:
(1).Huiguang Lighting Co,ltd is one of the leading professional led auto lamps
Manufacturers which is specialized in manufacturing , R&D and distributing led work light, led light bars,led driving light,led emergency lamps and so on led lights series.
(2).With the machine including environment labortory (high & low temperature test, programmable,waterproof,test machine,salt and spray. test machine and optical test labortory(intergrating sphere ), solid crystal machine, wire bonding machine, the point glue machine and so on led bulbs assembly machines AND SMT,machine to guarantee led bulbs and circuit board quality,which is the most important for led lighting.
FAQ:
1.what's your company's advantage promise?
(1).We apply ourselves in producing high quality car led , led work light, led light bar, well after-sales service and hope to help you to get more orders and earn more business.
(2) We promise the lowest price but the best quality.
2. what's your shipment and payment?
(1).Shipment: DHL, UPS, EMS, Fedex
(2).Payment way: T/T, Paypal, Western Union, L/C,D/A,D/P etc
(3).Welcome your sample order, warranty Two year.
3.what's your products apply for ?
(1). Engineering vehicles: Excavator, dozer, road roller, bulldozer, crane and mining truck etc.
(2).Specialized vehicles: Fire engine, police cars, rescue vehicle, communication vehicle, military command vehicle etc.
(3) .Off-Road vehicles: ATVs, SUV, truck, Fork lift, trains, boat, bus, and tanks.
I will reply your mail within 24 hours.
You can contact me any time if there is any question on our products.
If you want to know the shipping cost together pls advise your address and email.
I'm looking forward to your inquiry.
Located in Jiangning District, Nanjing, China with factory area over 10000 square meters, Huiguang Lighting Company Limited is specialized in LED auto light manufacturing.
Conceived and constructed in 2005, Nanjing Huiguang is specialized in producing LED light bar LED driving light and LED work lights. Our products meet the demands of various industries, such as auto industry and car lighting. HID Work Lights are widely used in Automobile and off-road vehicles, Engineering vehicles (excavators, tree dozers, road rollers, bulldozers, cranes, mining trucks, etc. ), Agricultural machinery trucks (Harvesters), Special vehicles (fire engines, police cars, rescue vehicles, communication vehicles and military command vehicles), Forklifts, ATV, UTV, Marine, Trains, Tanks, ambulances and so on.
Huiguang is an ISO9001: 2008 and SGS certified company with certificates of E-MARK, IP67, IP68, EMC, RoHS, etc...
With several years' efforts, our products are sold to customers all over the world and have been awarded with high reputation by customers for great quality and reasonable price.
As one of the earliest and most professional auto light supplier in China, Huiguang will continuously pursue outstanding quality, invest in new product research and development, and strive for customers' satisfactions!
