120W Module Designed UL/Dlc Listed LED High Bay Light with 5 Years Warranty
| Price: |
US $ 180-200/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

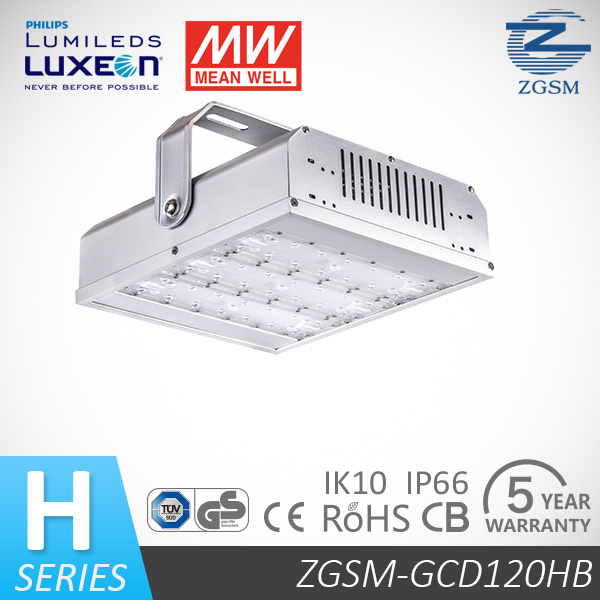

120W Module Designed UL/DLC Listed LED High Bay Light with 5 Years warranty
Major advantages of our H Series high bay light:
1. PHILIPS LUXEON® T luminous source with LM-80 report. 2. High Reliable MEANWELL® HLG driver with 5 Years Warranty. 3. Over then 100,000 hours operation life.
4. Available for 60°, 90° and 110° beam angle.
5. IK10&IP66.
6. Adjustable mounting bracket.
7. UL, DLC, RoHS, CE, GS, CB, SAA certificated.
8. Patent product with 5 patent certificates.
9. 5 years Warranty
10. Wide application range, can be applied as industrial Light,canopy light, flood Light, stadium lights,tunnel light,warehouse light,gas station light and so on.| Specifications |
| Model | ZGSM-GCD120HB |
| LED Brand | Philips LUXEON® T |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 120W |
| LED Module Quantity | 3 modules |
| Input Voltage | 100-240/277V/347V/480V AC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >100lm/w |
| Lamp Rated Lumen output | 12, 000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 4000 5000 or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25ºC |
| Storage Temperatures | '-40ºC~+70ºC |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 60000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | UL,DLC,SAA,CE,ROHS,GS,CB, |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer/Photocell Control |
| Warranty | 5 years |
| |
| Packing Details |
| Fixture Dimension | 312 x270 x1263 mm |
| Fixture Weight | 4.6 kg /10.1 lbs |
| Packing Dimension | 430 x370 x200 mm |
| Packing Weight | 5.4 kg /11.9 lbs |
| Prod Model: |
ZGSM-GCD120HB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Norminal Voltage: |
AC 100-240V/277V, 50/60Hz |
| Maximum Current: |
AC 1.23A-120V, 0.62A-240V, 0.53A-277V |
| Operating Temperature: |
-40 to 50 |
| Power Factor: |
More Than 0.9 |
| Driver Efficiency: |
More Than 90% |
| Lumen Output: |
12, 000 Lm (+/-5%) |
| CRI: |
More Than 70 |
| IP: |
66 |
| Lens: |
Clear PC |
| Heat Raditor: |
Anodized Aluminum |
| Certification: |
CB, Dlc |
| Lamp Body Material: |
Aluminum Alloy |
| IP Rating: |
IP66 |
| Lifespan: |
More Than 100, 000 Hours |
| Usage: |
Factory, Gas Station |
| Beam Angle: |
60, 90, 110 |
| Color: |
Silver |
| Color Temperature: |
4000k, 5000k, 5700k |
