Description:

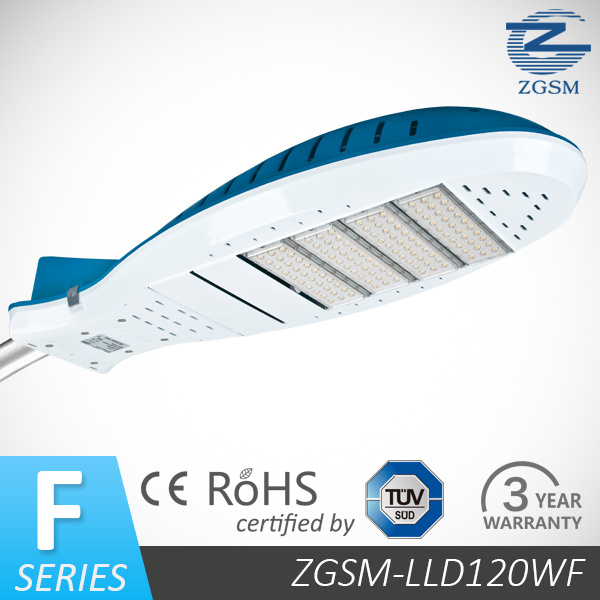

ZGSM F-Series LED Street Lights are designed for Use in city streets, municipal roadways, bridges, housing projects, Public parks, parking lots, yards and gardens, and other settings with Needs for high-brightness general illumination during the night time.
All of ZGSM's long life LED luminaires are designed to meet the most Demanding specification criteria while offering maximum energy Savings, reduced maintenance costs, and a superior quality of light.
Features:
| 1 | No UV | 12 | Significant energy savings |
| 2 | Long life | 13 | Wide input: 100 - 240V AC |
| 3 | Waterproof | 14 | Stable and efficient LED driver |
| 4 | Instant on/off | 15 | Significantly less generated heat |
| 5 | Mercury free | 16 | Resistant to shock and vibration |
| 6 | Maintenance free | 17 | Optimal heat sinking performance |
| 7 | Improved visibility | 18 | LED's maintain flux up to 100 lm/W |
| 8 | Ease of installation | 19 | Temperature compensation technology |
| 9 | Copper free aluminum | 20 | Exclusive appearance design with patents |
| 10 | Superior optical design | 21 | High quality and brightness LED light source |
| 11 | More than twice the average life of metal halide and high pressure sodium |
Datasheet
| Electrical Specifications |
| Nominal Wattage | 135W |
| Nominal Voltage | AC 100-240V, 50/60Hz |
| Maximum Current | AC 1.39A-120V, 0.69A-240V |
| Optimal Operating Temperature | - 40 ºC to 50 ºC |
| Operating Humidity | 10% to 90% |
| Power Factor (PF) | >0.95 |
| Driver Efficiency | >90% |
| Photometric Specifications |
| Correlated Color Temperature (CCT) | 3000-3500K, 4000-4500K, 5000-5500K, 6000-6500K |
| Lumen Output (3000-4500K) | 12150 lm ( +/- 5% ) |
| Lumen Output (5000-6500K) | 12825 lm ( +/- 5% ) |
| Color Rendering Index (CRI) | Ra≥75 |
| Mechanical Specifications |
| IP Rating | IP65 |
| Lifetime | 50000 hours |
| Housing | Die-casting Aluminum |
| Heat Raditor | Anodized Aluminum |
| Lens | PC |
| Fixture Dimension | 992 x 442 x 211 mm / 39.1 x 17.4 x 8.3 inches |
| Fixture Weight | 16 kg / 35.3 lbs |
| Aperture Diameter | Φ60 mm / Φ2.4 inches |
| Packing Informations |
| Packing Type | 1 unit / ctn |
| Packing Dimension | 1040 x 490 x 260 mm / 40.9 x 19.3 x 10.2 inches |
| Packing Weight | 19 kg / 41.9 lbs |
[Warranty]
3 years Since the date of purchase.
[Warranty Terms]
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, ZGSM will provide free maintenance service based on the proof-documents and invoice(copy) of failure product.
2. ZGSM will provide paid maintenance service by under coditions within warranty.
(1). Failure or damage due to force majeure.
(2). Failure or damage due to transport or unloading.
(3). Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
(4). Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service, ZGSM will not responsible for any failure or damage in transportation if customer use non-original packing or improper packing.
4. ZGSM reserves the right for final explanation of aforesaid terms.
[Caution]
ZGSM will not responsible for any other failure or damage by incorrectly usage.
