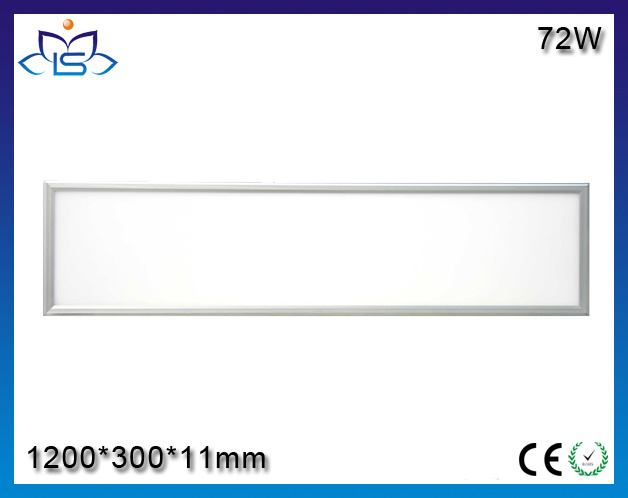

LED Panel Lights
Ultra-thin LED Panel Lights, There are a variety of reasons why we all should be using LEDs as alternatives to the standard lights used in our houses, offices, hotels, retail, clubs & decorative environments for both indoor and outdoors use. Look around and you will quickly find that the inefficient, high maintenance light sources, including filament, fluorescent, halogen & neon are still used in abundance. You can change this now and begin making serious energy cost savings by using xLedLight's LED lighting systems. We have so many dimension size of led panel lights for your choose.
Products Character:
A: SMD5630 with Epistar chips adopted, energy saving up to 50%;
B: MOSO CE external constant-current driver adopted, with power factor over 0.95;
C: Baseboard heat dissipation structure, long life span, normal use can reach over 50, 000hours;
D: Diversified installation methods can meet customers requirments.
E: Two difference frames for your options.
Trade terms:
A, Payment: T/T or L/C
B, MOQ: 100PCS(1-10 samples can be acceptable)
C, Logo: According to your need
D, EXW or FOB SZ(depends on order quantity).
|
Name |
IS LED Panel Light |
|
Lighting Source |
SMD5630 |
|
LED Chip Brand |
Samsung/Seoul/Epistar |
|
LED Quantity |
120/240pcs |
|
Driver Brand |
UL External Constant-Current Driver |
|
Power Consumption |
36W/48W/54W/72W |
|
Input Voltage |
AC100-277V |
|
Working Voltage |
30-42V |
|
Constant Current |
900MA/1150MA/1280MA/1800MA |
|
LED Luminous Efficiency |
2900+200lm/3600+200lm/4000+200lm/5400+200lm |
|
Power Factor |
>0.95 |
|
LED Life Expectancy |
50000hours |
|
Beam Angle |
120° |
|
Luminous Flux |
2900+200lm/3600+200lm/4000+200lm/5400+200lm |
|
Color Temperature |
WW/NW/CW |
|
Protection Grade(IP) |
IP20 |
|
Color Rendering Index(Ra) |
>80 |
|
Temperature Rising |
Pass according to En60598 |
|
Operation Temperature |
-10°~40° |
|
Relative Humidity |
Pass according to En60598 |
|
Fixture Material |
Junction Box, Hanglig Cable, Screws |
|
Cover Brand |
Al 6063 |
|
Housing Color |
Silver/White |
|
Dimension/Size |
1200x300x11mm/1200x300x12.5mm |
|
Net Weight |
4Kg |
|
Shock Test |
0.35-0.5Nm |
|
Insulation Class |
ClassII |
|
Certification |
TUV/CE/FCC/PSE/RoHS |
|
Warranty |
3years |
