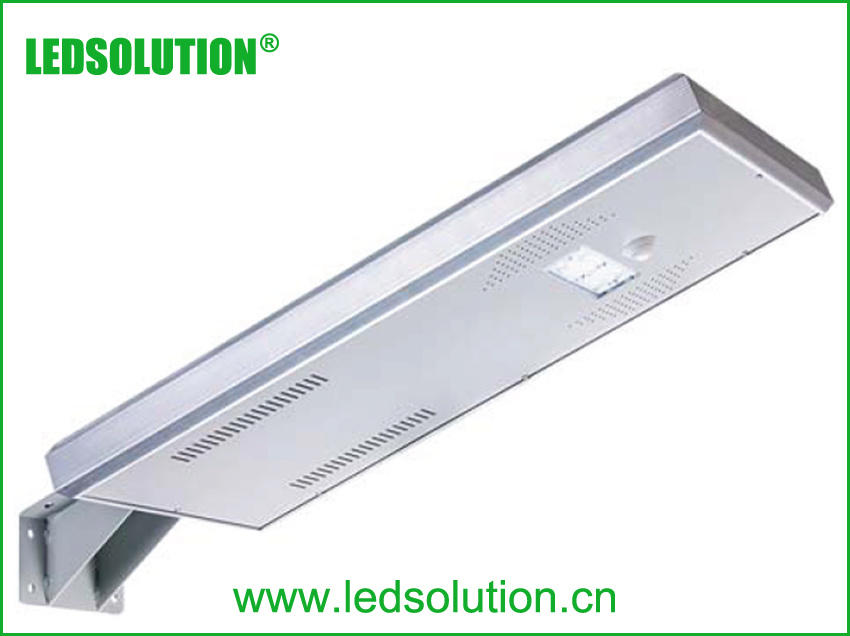

10w body sensor solar panel led solar street light
General Introduction:
1. Automatically light control;
2. Infrared body sensor;
3. Microwave induction;
4. After the infrared body signals being detected, there are two different reactions: When battery voltage works at the normal mode, the light will turn into energy-saving mode after 1-minute 100% lighting period (25%);
5. When battery voltage works at undervoltage condition, the light will turn into energy-saving mode after 1-minute 50% lighting period (25%).
Specifications:
| Electrical Specifications |
| Model No. | LS-SSL10I (led solar street light) |
| LED Number | 7 Units |
| Nominal Power | 10 W |
| Solar Panel Spec. | Monocrystal 16.8W/18V |
| Battery Spec. | 9 AH/12V |
| Constant Worktime at Full Power | 8 Hours |
| Worktime at Energy-saving Mode (25%) | ≥40 Hours |
| Charge Time | Max power 5~6 Hours |
| Charge Temperature | <60ºC |
| Discharge Temperature | -20ºC~60ºC |
| Photometric Specifications |
| Luminous Flux (full power) | 1100 lm (Lumen tolerance +/- 5%) |
| CCT | 3000K,4000K,5000K,6000K |
| Light Type | 1S |
| Mechanical Specifications |
| Installation Height | 3~4m |
| Installation Distance | 12 m |
| Lamp Pole Diameter | 40~60mm |
| Fixture Dimensions |
782 x301 x88 mm
30.8 x11.9 x3.5 inches |
Fixture Weight | 6.5 kg /14.3 lbs |
| Package |
| Packing Type | 1unit(s)/ctn. |
| Packing Dimensions |
825 x360 x145 mm
32.5 x14.2 x5.7 inches |
Packing Weight | 8.1 kg /17.9 lbs |
Led Solar Street Light Product benefits
1.LG Innotek LED LUMINOUS SOURCE
2.Infrared body sensor/ Microwave induction
3.All-in-one design
4.Unique luminarie design
Applications of 10W All in One Design Led Solar Street Light
1.Garden, Residence, Courtyard
2.Crosswalk, Roadway
3.Mine, Parking lot
4.Areas with no electrical supply
