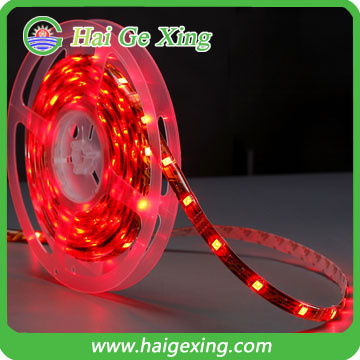

SMD 3528 outdoor LED strip light: 60LED/m data:
1. LED type: 3528 SMD LED
2. Available colors: White, Warm White, Cool White, Red, Green, Blue, Yello
3. Beam angle(θ ): 120
4. LED quantity: 300PCS
5. Life span: 50, 000h
7. Working voltage(V): DC12V
8. Standard length: 5meters/Reel
9. Power consumption(W): 24W
10. Color of PCB board: Yellow & white & black
11. IP grade: IP33, IP64, IP65
12. Sealing method: Epoxy dropper, Silicon tube
13. Driving method: Constant voltage
14. Double-side adhesive: 5000*8mm, 3M double-sided adhesive
15. Package: Each reel put in an anti-static bag, then put in a carton
Applications:
1) Architectural decorative lighting
2) Archway, canopy and bridge edge lighting
3) Amusement park, theater and aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
Remark
1. We have no MOQ limited for sample order
2. The lead time is about 3 working days for sample order
3. We offer 2 years warranty
4. Within the warranty, if the device stop working under correct using condition,
Please take pictures for us inspection, we will check it and arrange the free replacement
Part Number
|
Description |
Lumen |
HGX-F30W-3528-12V |
500*8*0.2mm, cooper or white pcb or black pcb, 30pcs 3528 leds/meter,
150pcs LEDs/roll, 12VDC, 2.4W/meter, 3 led cuttable,
white, red, green, blue, yellow,
SMD3528,
|
5-6lm/led |
6-7lm/led |
7-8lm/led |
|
HGX-F60W-3528-12V |
500*8*0.2mm, cooper or white pcb or black pcb, 60pcs 3528 leds/meter,
300pcs LEDs/roll, 12VDC, 4.8W/meter, 3 led cuttable,
white, red, green, blue, yellow,
SMD3528,
|
5-6lm/led |
6-7lm/led |
7-8lm/led |
|
HGX-F120W-3528-12V |
500*10*0.2mm, cooper or white pcb or black pcb, 120pcs 3528 leds/meter, 600pcs LEDs/roll, 12VDC, 9.6W/meter, 3 led cuttable,
white, red, green, blue, yellow,
SMD3528,
|
5-6lm/led |
6-7lm/led |
7-8lm/led |
|
HGX-F240W-3528-12V |
double line 3528 led strip
500*14*0.2mm, cooper or white pcb or black pcb, 240pcs 3528 leds/meter, 1200pcs LEDs/roll, 12VDC, 19.2W/meter, 3 led cuttable,
white, red, green, blue, yellow,
SMD3528,
|
6-7lm/led |
7-8lm/led |
|
5050 led strips
|
HGX-F30W-5050-12V |
500*10*0.4mm, cooper or white pcb or black pcb, 30pcs 5050 leds/meter,
150pcs LEDs/roll, 12VDC, 7.2W/meter, 3 led cuttable,
white, red, green, blue, yellow, RGB
SMD5050,
|
18lm/LED |
20lm/LED |
|
HGX-F60W-5050-12V |
500*10*0.4mm, cooper or white pcb or black pcb, 60pcs 5050 leds/meter,
300pcs LEDs/roll, 12VDC, 14.4W/meter, 3 led cuttable,
white, red, green, blue, yellow, RGB
SMD5050,
|
18lm/LED |
20lm/LED |
|
HGX-F120W-5050-24V |
double line 5050 led strip
500*18*0.4mm, cooper or white pcb or black pcb, 120pcs 5050 leds/meter,
500pcs LEDs/roll, 24VDC, 28.8W/meter, 3 led cuttable,
white, red, green, blue, yellow, RGB
SMD5050,
|
18lm/LED |
20lm/LED |
|
