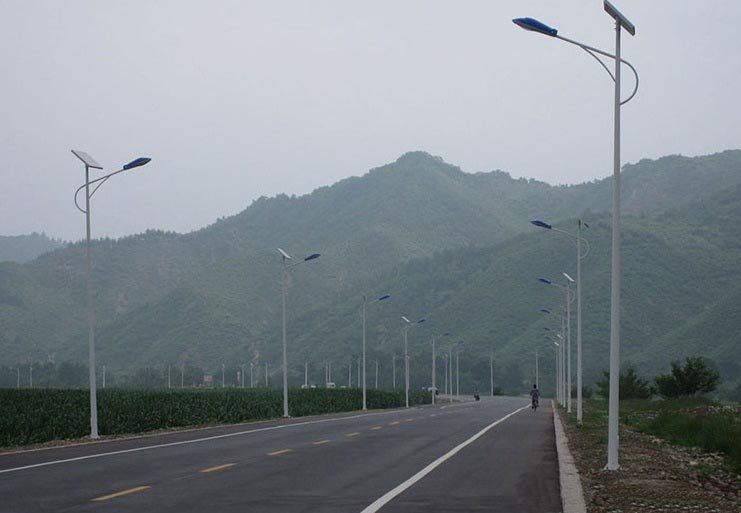

10M 80W LED Lamp Solar Street Light
Product Details
1. Solar Panel: High efficiency mono or poly crystalline silicon.
2. Light source: High bright LED, white, lifespan more than 50000hours.
3. Solar controller: Intelligent microcomputer controller for solar lighting, 10A 12V/24V auto, time control & light control, with over-charging and discharging protections etc.
4. Storage battery: Gelled valve-regulated sealed battery or lead-acid battery, maintenance free and deep cycle.
5. Light pole: Normal 5-10 meters, made of quality steel, plastic coated after hot dipped galvanizing, rust proof. Wind resistance ≥ 120KM/H
6. Ambient Temperature: -30 C----+60 C
7. Lighting time: According to client's request, usually 8 /10/12 hours per night, 3-4 / 5-6 rainy or cloudy days.
8. System voltage: Advisable DC24V for LED above 40W
Product ParameterLight source: High Power LED
Lifespan: 80000 hours
| 80W super bright LED, pure white color, 4800LM, IP65 cast aluminum lamp housing with high transmittance & density toughened glass. |
Solar Panel:
Lifespan:25 years | 2*130W polycrystalline silicon solar pane
Adding aluminum frame, tempered glass. |
Solar Controller
Lifespan: 5-8years | 12V/24V 15A waterproof solar charge controller, over charging/discharging protection,
reverse-connection protection, |
Maintenance Free Gelled Battery
Lifespan: 5-8years | 12V/2*120AH maintenance free gelled valve regulated sealed battery, deep cycle. |
Battery Box
| 24V/120AH Buried Battery Box |
| Light Pole | 10M, HDG & Powder Coated |
Note:1. Above configuration is designed on averaged insolation 5 kWh/m2/day
2. Lighting time: 12 hours per night, 3-4 overcast days
Applications:street lighting; park lighting; roadway lighting; fence lighting; pathway lighting; campus lighting; ramp lighting; boat dock lighting; sidewalk lighting; remote area lighting; private road lighting; farm & ranch lightingThe below points of solar street light are required for design and quotation:
1. Where is the final installation place (Country & City name)? Or tell us the latitude and longitude of lighting place.
The solar radiation will be checked according to the installation place to ensure the lighting time,
And save the cost at the same time
2. Lighting time per night & backup rainy or cloudy days?
The lighting time usually is 8 hours, 10 hours or 12hours, or choose half power design according to actual conditions.
Besides, how many backup days under rainy or cloudy weather will be required too.
3. Light pole height, and pole style?
Please choose your favorite pole style in our solar street lights, and tell us the pole height you need.
Solar street lights usually adopt light poles from 5M-10M.
4. The power of light source?
The light sources for solar street lights are usually 18W~120W LED.
Our ServicesReply you enquiry in 24HrsFeedback of complaint in 24HrsOEM/ODM are welcomed2~3 years warranty Life-long maintenance service for the productIf you want to know more information, please contact us, we will reply you in the earliest time! You can also log in our website, learn about other products. www.solar-street-light.com
