Features
Ø 25.4 mm (1 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Selection Guide

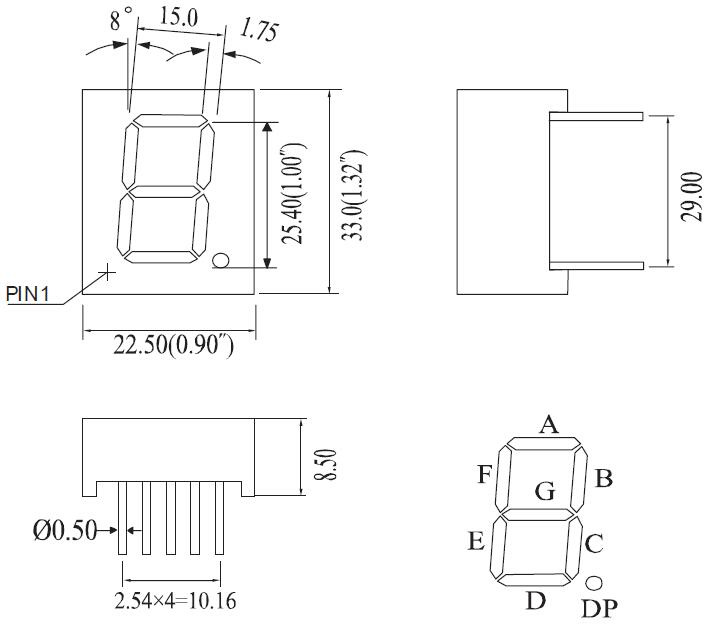

| Single Digit 7 Segment LED Display, Digit Height: 25.40mm(1.00inch), External Dimensions: 22.50x33.00x8.50mm (L x W x H ) |
| Part No. | Chip | Iv@IF=20mA | Iv@IF=20mA |
Common
Cathode | Common
Anode | Material | Color | WLD | One Seg | One DP |
| Min. | Typ. | Min. | Typ. |
| LD10012AR | LD10012BR | GaAlAs | Super Red | 640 | 12 | 15 | 8 | 10 |
| LD10012AD | LD10012BD | GaAlAs | Hi-Red | 640 | 27 | 37.5 | 18 | 25 |
| LD10012AO | LD10012BO | GaAsP | Orange | 625 | 10.5 | 13.5 | 7 | 9 |
| LD10012AY | LD10012BY | GaAsP | Yellow | 588 | 12 | 15 | 8 | 10 |
| LD10012AG | LD10012BG | GaP | Green | 568 | 10.5 | 13.5 | 7 | 9 |
| LD10012AUR | LD10012BUR | AlGaInP | Ultra Red | 640 | 45 | 67.5 | 30 | 45 |
| LD10012AUO | LD10012BUO | AlGaInP | Ultra Orange | 625 | 67.5 | 90 | 45 | 60 |
| LD10012AUA | LD10012BUA | AlGaInP | Ultra Amber | 605 | 45 | 67.5 | 30 | 45 |
| LD10012AUY | LD10012BUY | AlGaInP | Ultra Yellow | 595 | 45 | 67.5 | 30 | 45 |
| LD10012AUG | LD10012BUG | AlGaInP | Ultra Green | 573 | 45 | 67.5 | 30 | 45 |
| LD10012APG | LD10012BPG | InGaN | Pure Green | 525 | 180 | 450 | 120 | 300 |
| LD10012AUB | LD10012BUB | InGaN | Ultra Blue | 470 | 45 | 67.5 | 30 | 45 |
| LD10012AUW | LD10012BUW | SMD | Ultra White | \ | 150 | 180 | 100 | 120 |
| Unit: | \ | \ | \ | nm | mcd | mcd | mcd | mcd |
Available options
Ø Alternative emitting luminosity:
Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
