Features
Ø 25.4 mm (1 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Selection Guide

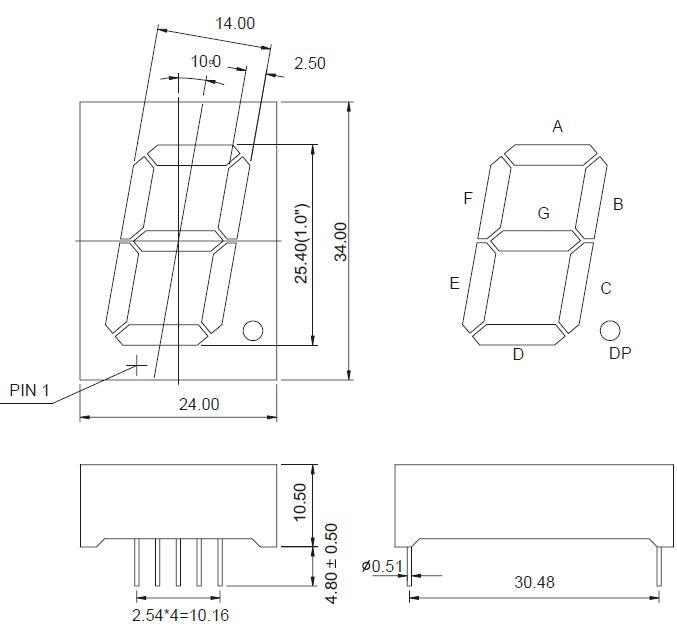

| Single Digit 7 Segment LED Display, Digit Height: 25.40mm(1.00inch), External Dimensions: 24.00x34.00x10.50mm (L x W x H ) |
| Part No. | Chip | IV@IF=20mA | IV@IF=20mA |
Common
Cathode | Common
Anode | Material | Color | WLD | One Seg | One DP |
| Min. | Typ. | Min. | Typ. |
| LD10016ERG | LD10016FRG | GaAlAs | Super Red | 640 | 12 | 15 | 8 | 10 |
| GaP | Green | 568 | 10.5 | 13.5 | 7 | 9 |
| LD10016EURUG | LD10016FURUG | AlGaInP | Ultra Red | 640 | 45 | 67.5 | 30 | 45 |
| AlGaInP | Ultra Green | 573 | 45 | 67.5 | 30 | 45 |
| Unit: | \ | \ | \ | nm | mcd | mcd | mcd | mcd |
Available options
Ø Alternative emitting luminosity:
Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
