Prod Model: |
CST-LP-3060-25W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model No: |
Cst-Lp-3060-25W |
Lighting Source: |
SMD2835 0.2W Per LED |
LED Qty: |
132PCS |
Cct: |
2800-6500k for Option |
Lumens: |
2200lm |
CRI: |
> 80 |
Material: |
Aluminum Alloy + PMMA Light Guider Plate |
Input Voltage: |
AC85-265V 50-60Hz |
IP Grade: |
44 |
Size: |
300*600*10mm |
Light Source: |
LED |
Appearance: |
Square |
Emitting Color: |
White |
Certification: |
VDE |
Housing Material: |
Acrylic |
Base Material: |
Metal |
Voltage: |
85V-265V |
Dimmable: |
With Dimmable |
Type: |
Embedded or Hanging |
Beam Angle: |
120 Degree |
Product Description

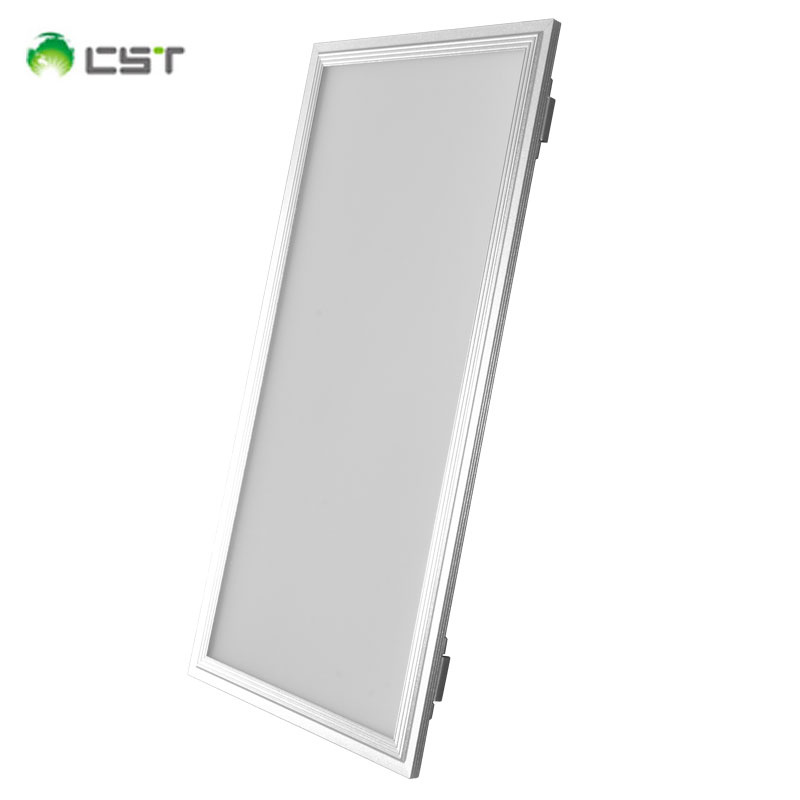

Wholesale factory price 30*60 cm 25W square ceiling panel
1, Advantages of led ceiling lamp:
design Simply replace the grill lamp or false ceiling, or hang from the roof using chains;
ceiling panel with Super Slim of 10mm thinckness, making for attractive and versatile signage;
Edgewise, the LEDs emit evenly lighting through a LGP ( Acrylic ), the luminosity is bright, soft and comfortable for eyes;
Cooler than traditional display, versatile in size, shape and configuration;
ceiling panel with four Sides illuminating,beat heat sink,with temperature rise less than 20 degree,good for extending the panel's lifespan;
Optimized circuit design ensures no interference with any other LEDs when a single one fails.
2, Feature:
80% less power consumption than traditional lighting source;
Ceiling panel from Epistar or San'an with superb feature;
Ultra slim and light, with thickness only 10mm;
Ceiling panel with external high PF Constant Current LED Driver,instant start, No flickering and No humming, safe and reliable;
Long lifespan >50,000hours, 3 years warranty,CE,ROHS approved.
3, Applications:
Ceiling panel are used for Ceiling, Walls, art gallery, the car, the counter,etc.
4, Installation:
1, Fix the Ceiling panel ;
Embedded installation and replace the ceiling with the LED Panel lighting which has the same specifications;
A, Take off the ceiling and put the Ceiling panel into the ceiling from the diagonal;
B, Fix the Ceiling panel to the T shelf.
(2,) Inhaled installation
Mount the ceiling frame to the hole, fix the Ceiling panel as showed in the above A.
2, Fix Ceiling panel
Fix the wall frame to the wall with screws;
(2,) Settle the driver into the frame;
(3,) Screw the ceiling on four angles of the frame and tighten the screws;
(4,) Fix the hanging rope to the ceiling;
(5,) Screw the hanger into the threads in the four angles of the panel;
(6,) Adjust to the proper height.
Wholesale factory price 30*60 cm 25W square ceiling panel
Ceiling panel Certificate:
Factory Demonstration:
Ceiling panel Production:
Model No
CST-LP-3060-25W
Power
25W
Size
300*600*10mm
LED Qty
132 SMD2835
Lumens
2200lm
CCT
2800-6500k for option
CRI
> 80
Beam Angle
120 degree
Material
Aluminum Alloy + Acrylic
Power Factor
0.93
Certificate
CE,ROHS,FCC,SAA
Warranty
2 years
