North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:
256mm*128mm
Module Resolution:
32dots(W)*16dots(H)
Max Power Consumption:
25W
Module Thickness:
2.8cm
Module Weight:
0.55kg
Interface Way:
Hub75b
Driving Device:
IC Constant Current Driving
Control Mode:
Synchronization with PC
Power Switch:
Automatic
Display Mode:
800*600/1024*768/1280*900
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
350W / m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC,EMC,IP65
Pixel Pitch:
8mm
Pixel Density:
15625
Product Description
Certifications

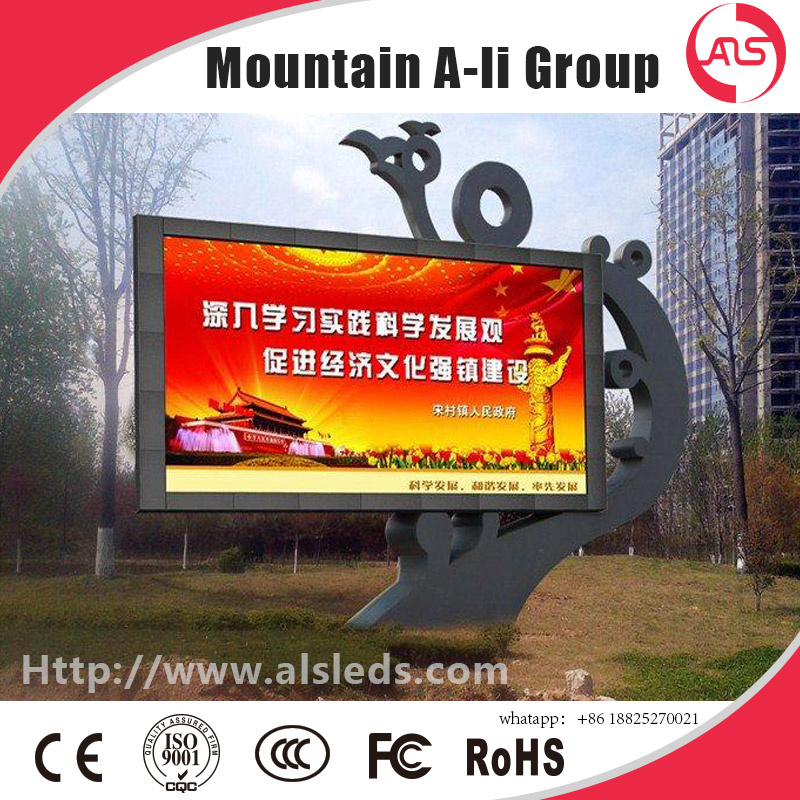

Product description: The configuration of P8 outdoor full color led display is 1R1G1B3 in 1.Under the same condition it can use two more years than SMD. Widely used in a variety of needs large hall,sports arena,banking,telecommunications,goverment agencies,terminal,pier,railway stations,the stock market and other trading market,medical systems.electric power,galleries and other publicity,advertising,infomation dissemination,the guide places.
Product Advantage: (1)Low energy consumption , long lifespan. (2)No lolor difference, well concentrating . (3)Well waterproof, well radiation,well dust proof. (4)High brightness,high refresh. (5)Simply installation, easy to maintain, easy to use.
p7 full color led display technical parameter
Number
Item name
Parameter and index
unit module
1
Module Size
256mm*128mm
2
Module Resolution
32dots(W)*16dots(H)
3
Pixel Pitch
8mm
4
Pixel Configuration
1R1G1B3 in 1
5
Pixel pitch
8mm
6
Brightness
≥7500cd/m²
7
Scan Method
1/4 Scan
unit cabinet
1
Cabinet Size
768mm*768mm
2
Cabinet Resolution
96*96dots
Power
1
Operation Voltage
AC220V±10%
2
Average Power
300W/H
3
Max Power Consumption
≤600W/m²
4
Current
≤20mA(s
