LED Encapsulation:
SMD3528
Module Size:
500X250mm
Cabinet Size:
500X1000mm
Cabinet Material:
Aluminum Alloy
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Certification:
ETL
Display Function:
Video Display
Average Power Consumption:
300W / m²
Pixel Pitch:
6.944mm
Application:
Stage Performance,Advertising
Scanning Mode:
1/9scan
Pixel Density:
20736dots/Sq.M
Product Description
Waterproof P6.944 Outdoor LED Display for rental with panel size of 500x1000mm
Product Features:
1. SMD led encapsulation confirm high brightness,eyes friendly
2. Good waterproof IP54,long life span
3. Wide view angle, High definition, Good uniformity
4. With rental design cabinet,easy and quick to assemble without tools in short time
5. The cabinet size of 500x1000mm,convenien to be abnormal shape and size, better for stage background
6. low power consumption,no noise created, low transportation costs, and low installation costs.
7. Widely used for stage, concert ,show, banquet, wedding ,rental display

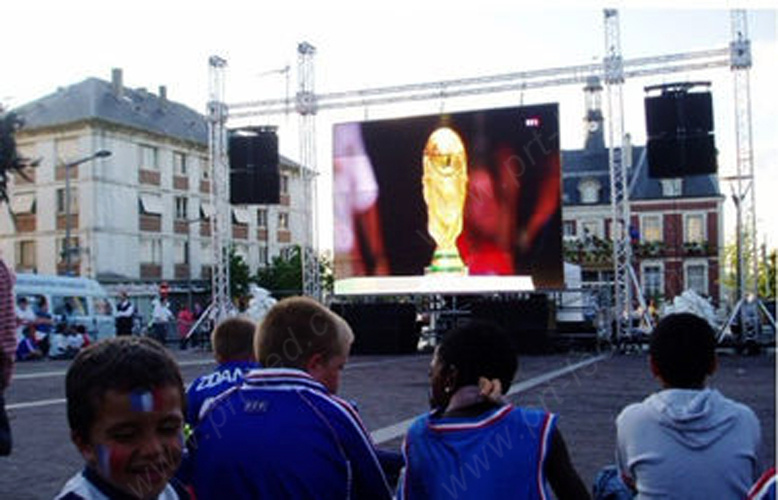

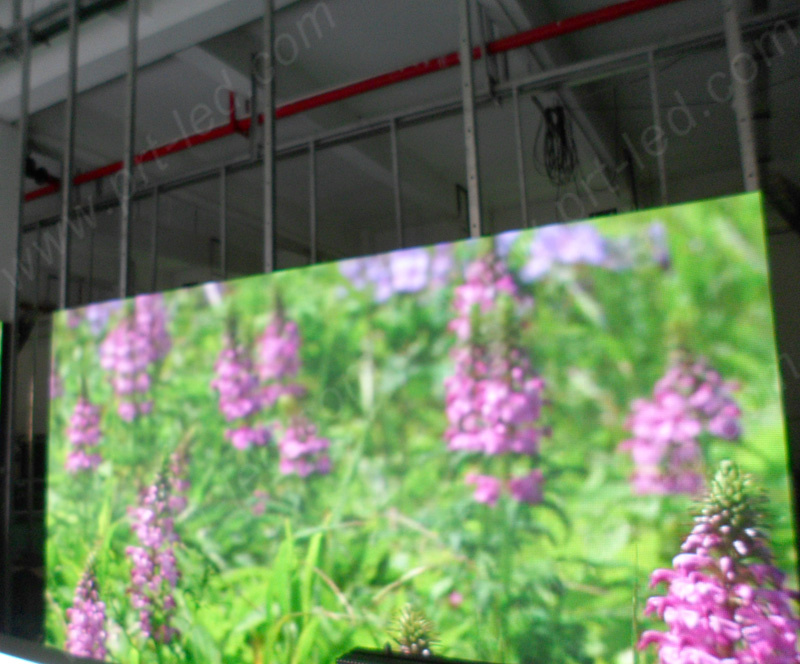

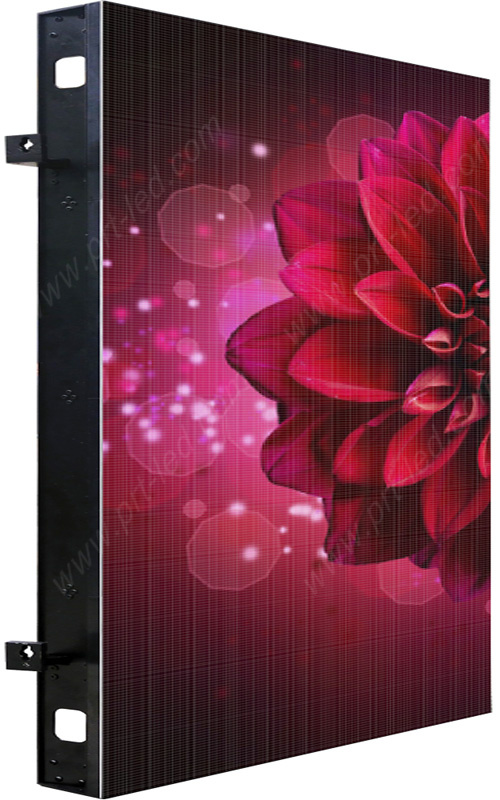

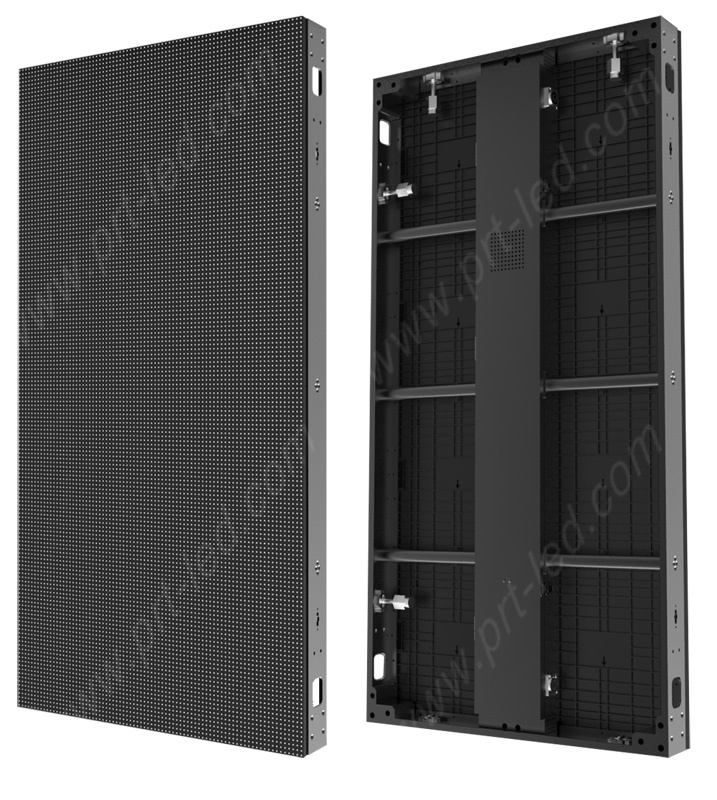

More pictures for reference:
P6.944 Outdoor Full Color LED Display Main Parameters
Visual Characteristics
Unit
Value
Pixel Pitch
mm
6.944
Pixel Density
Dots/sq.m
20736
Pixel Configuration
SMD3528
Cabinet Resolution
dots
72×144
Refresh Rate
Hz
≥1200
View Angle(H/V)
°
150/120
Brightness
nits
≥1500
Gray Scale
Bit
687Million
IP Rating
54
Power Consumption(Max/Avg)
W/sq.m
900/300
Input Voltage(AC)
V
110~240
Modular Characteristics
Cabinet Size(W×H×D)
mm
500×1000χ70
Cabinet Material
Aluminum
Cabinet Weight
Kg
15
Module Size(W×H)
mm
500×250
Environment
Operation Temperature
ºC
-20~+40
Operating Humidity
10%~90%
Driving Mode
1/9 Scan
Control Distance
Cat 5E <100m,Single mode fiber<10Km
