North America,South America,Southeast Asia,Mid East,Western Europe
Module Size:
160mm*160mm
Module Resolution:
16dots(W)*16dots(H)
Max Power:
20W
Module Thickness:
25cm
Module Weight:
0.5kg
Brightness:
7500CD/M2
Optimal Viewing Distance:
10m~50m
Control Mode:
Synchronization with PC
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Application:
Advertising
Pixel Configuration:
1R, 1G, 1B
Pixel Pitch:
10mm
Display Function:
Video Display
Scanning Mode:
1/4 Scan
Certification:
FCC /IP65
Pixel Density:
10000 dot / m²
Average Power Consumption:
600W / m²
Product Description

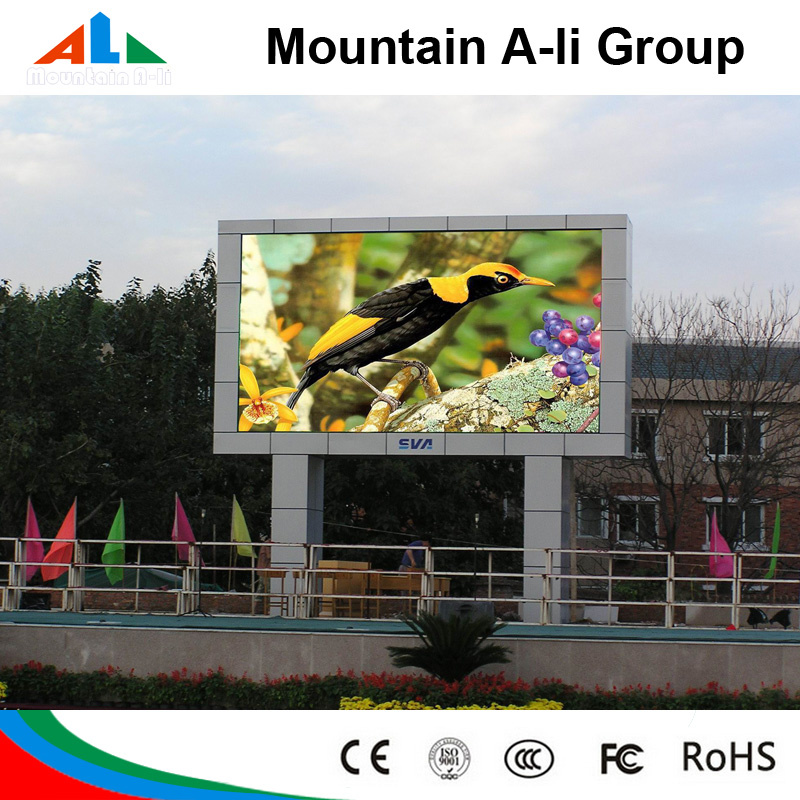

P10 Outdoor LED Display Screen For Video
Application and Market 1. Application Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc 2. Market: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Our service 1. Your inquiry related to our products or price will be replied in 24hrs 2. OEM&ODM, any your customized lightings we can help you to design and put into product 3. Distributoership are offered for your unique design and some our current models 4. Protection of your sales area, ideas of design and all your private information 5. Top quality+Reasonable price+Responsible After Service=Successful & Win

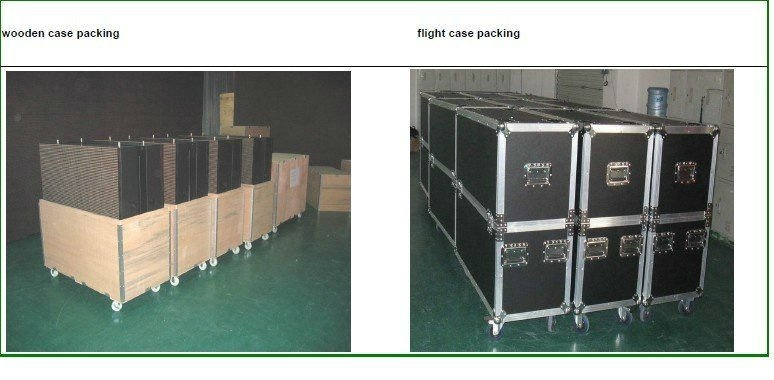

Trade Terms 1. Package: Anti-shaking wooden package, Air flight case or Carton package 2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery 3. Shipping freight are quoted under your requests 4. Shipping port: Shenzhen, Mainland China 5. Warranty time: 7years 6. Delivery time: 5-12working days
Description
Technical parameter

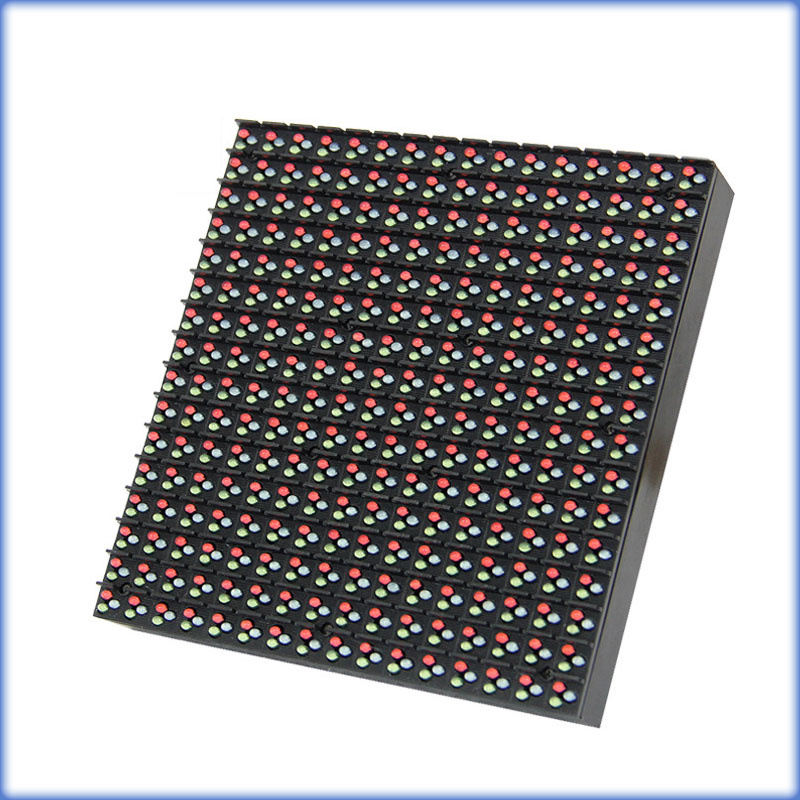

Unit module
Module size
160*160mm
Pixel pitch
10mm
Pixel density
10, 000dots/m2
Pixel configuration
1R1G1B
Led specification
DIP348
Pixel resolution
W: 16dots*H: 16dots
Cabinet
Dimension
960mm*960mm*150mm
Quantities of module
36pcs
Power supply
6pcs
Thermal discharge
Fan*2pcs
Total weight
50kg
Best viewing angle
10-100m
Temperature
Storage: -35degree~+80degree
Working: -35degree~+85degree
Thickness
15cm can adjustable
Remarks: cabinet size can changed, upon project need.
Power
Working voltage
AC220V/110V± 10%
Average power consumption
300-400W
Max. Power consumption
≤ 600W/sqm
Current
≤ 20mA(single LED)
Control system
CPU
Pentium4 or above
Operating system
WIN98/2000/NT/XP
Control method
Synchronization
Main technical parameter
Driving device
1/4scanning
Drive type
Constant Current driver IC
Refresh frequency
≥ 800Hz
Grey scale/colors
256 levels of each color(R/G/B)/16.7M color
Brightness of white balance
More than 8000cd/sqm
Brightness adjustment
256 levels of each color(R/G/B)by software
Operating ambient humidity
10%--95%
Video signal
PAL/NTSC
Control system
DVI display card+full color controller card
MTBF
≥ 10, 000hours
Life span
≥ 100, 000hours
Flatness
Tolerance of interpixel ≤ 0.3mm
Tolerance of modules clearance≤ 0.6mm
Power switch
Automatic switch
Display mode
960x960
Software
LED media player
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
