North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Lamp:
130 Lm-140lm/W
Solar Panel:
Monocrystalline/Polycrystalline
Solar Controller:
PWM
Battery:
Gel, Free Maintenance
Battery Box:
Polypropylene/PP Plastic
Pole:
Q235 Steel
Warranty:
5 Years
Light Source:
LED Lamp
Lamp Body Material:
Aluminum
Light Type:
Solar
Illumination Time:
12h
Charging Time (',H):
4
Usage:
Street
Certification:
CE
Voltage:
12/24V
With Light Source:
With Light Source
Color Temperature:
2700k-8000k
Power:
30W-120W
Technics:
Die-Cast Aluminum
Cell Type:
Gel
IP Rating:
IP68
Product Description
a. Specification:
Can be customized according heights
1. Certificates:
ISO9000, CE, ROHS,FCC, SGS
2. Solar panel:
1,Poly-crystalline
2,Conversion rate>17%
3,life span>25 years
20W~250W(option)
3. Battery:
1,Maintenance-free Gel-battery.
2,Battery life span: 5-7 years
Location: top of pole, bottom of pole, underground
Storage battery: 24AH~200AH(options)

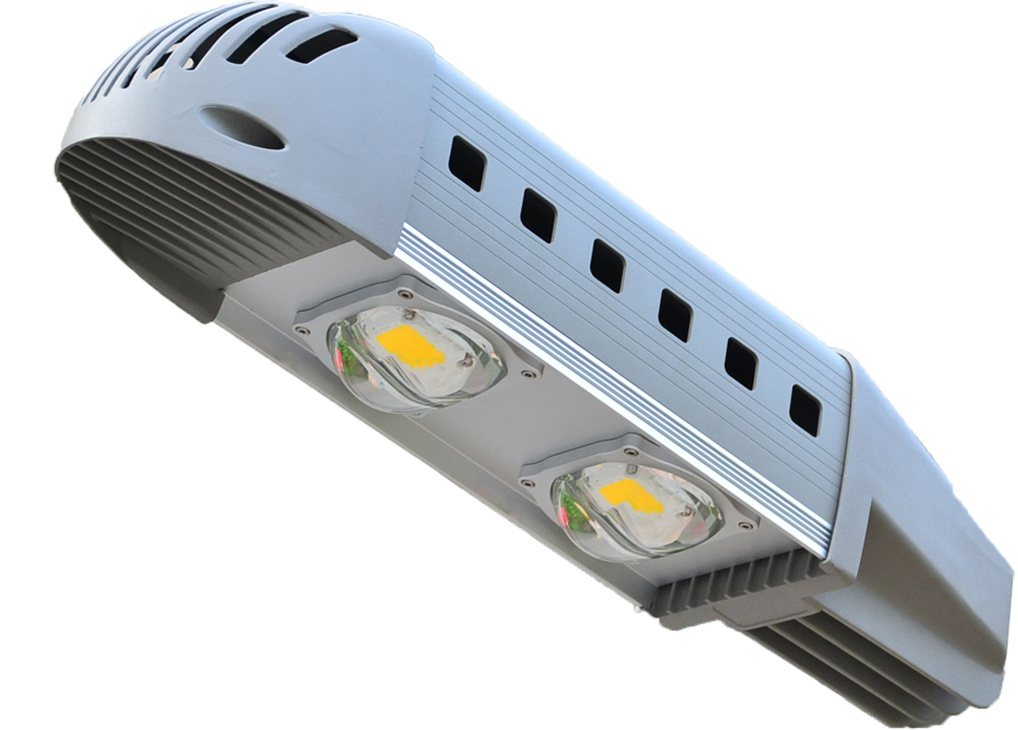

4. LED light:
1,High-power LEDs.
2,Luminous flux: 105+ 3%lm/w
3,LED life span:>50,000 hours
LED light: 28W~182W available
5. Controller:
1,Switch on/off by light & time
2,Controller:>10 years
Controller: 12V/10A,24V/15A,24V/20A
6. Pole:
3,Hot dipped galvanized steel pole.
4,Q235.Pole:>20 years
Pole: 2m~14m
7. Charging time:
1,Charging 4-4.5 hours.
2,2~10 rainy days
Running hours:4h~12h/day
8. Wind resistance:
≥130 km/h
9. Working temperature:
-30°C~+70°C
10. Protection grade:
IP 68
11. Delivery time:
1~100units/15days, 100~500units/15-21days
12. Payment Terms:
T/T Or L/C
(The quality of whole set can be guaranteed 5 years)
solar panel
80-400W, 12V/24V
LED lamp
30W-120W, 12V/24V
gel battery
85Ah-400ah 12V
controller
10A, 20A 12V/24V
battery box
1pc
steel pole
4-12m
accessory
1 set
installation guide
1 book
Charging time
1.2 days
Usage
1-15 hours each night
Last days
2-7 days depend on daily use
We can design the product according to your requirements. At the same time to provide the IES file as a reference.

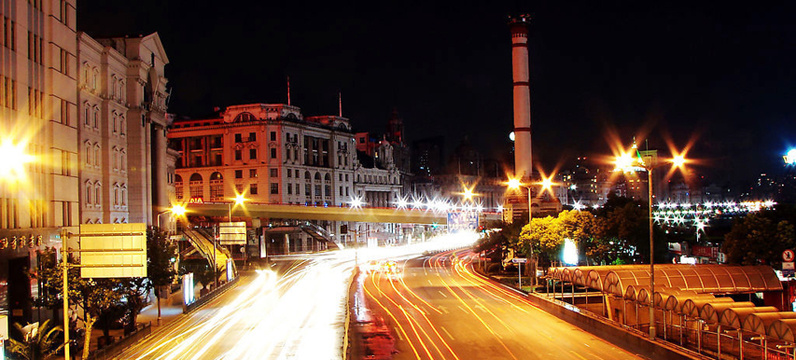

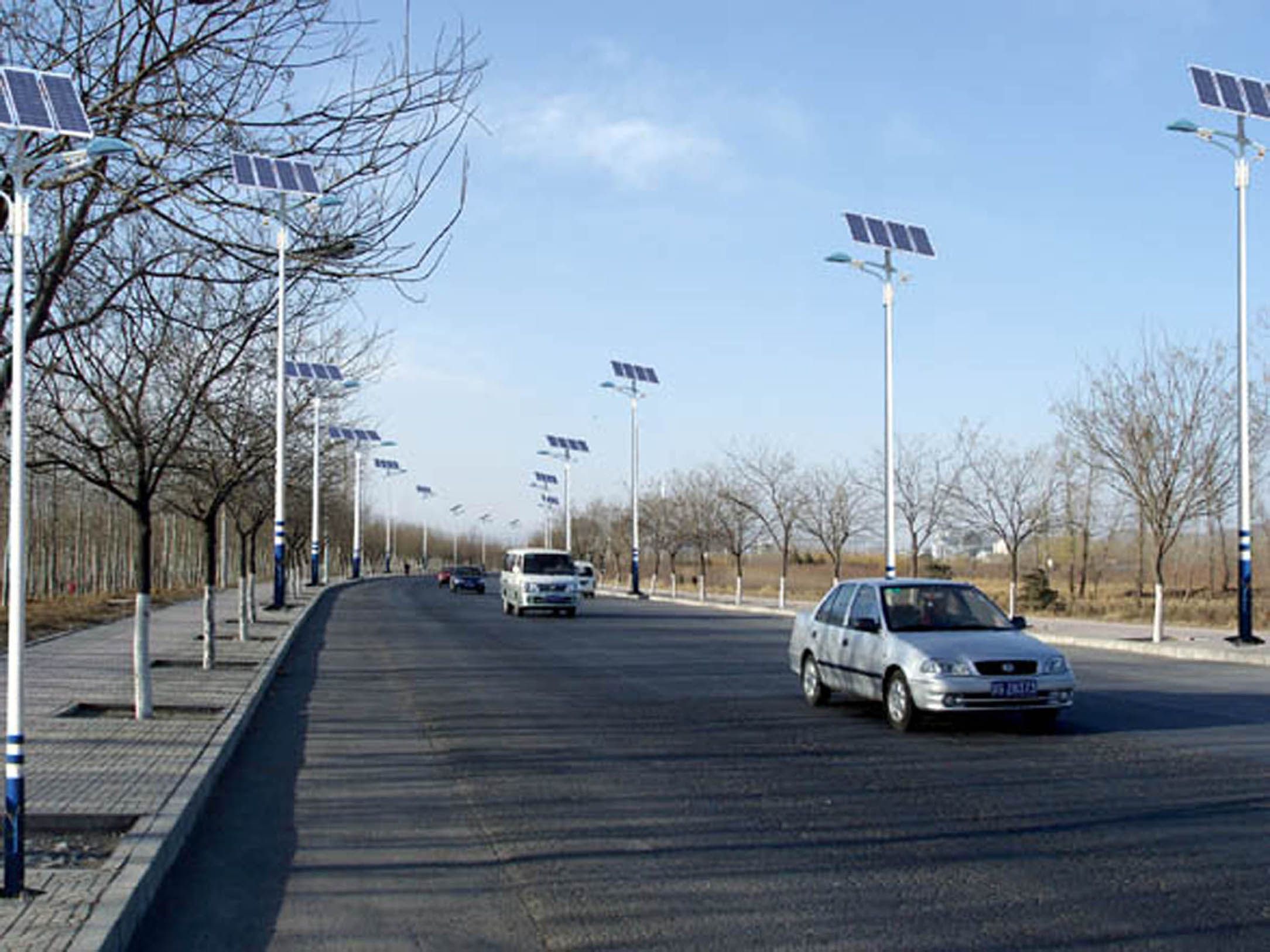

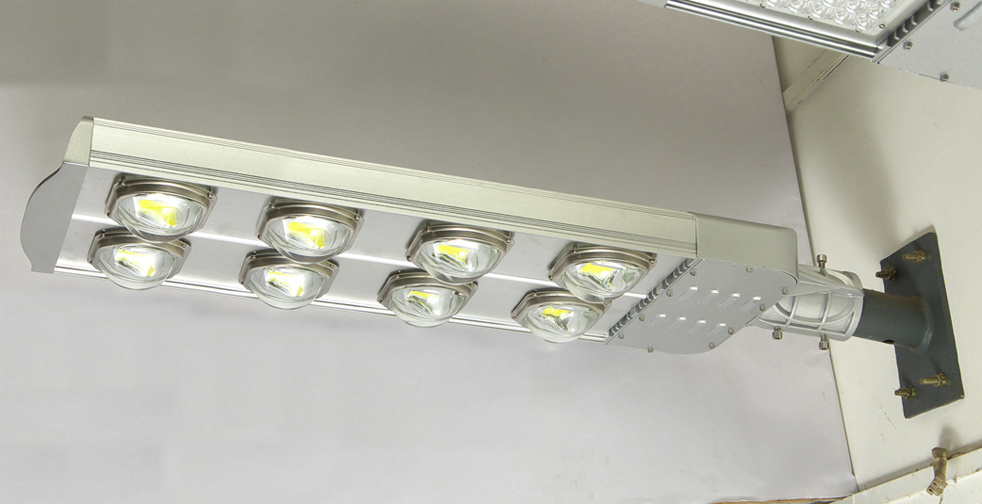

PHOTO:
Tianjin ET Technology Co., Ltd. is specialized in solar/LED street lighting, with 10 years experience of export and installation for solar/LED Street Light, solar power system. ET Technology provides design of solar lighting system for specific area, and after service of problem solution.
Our products are CE and RoHS certificated, we are renowned as one of China's leading providers of high quality.
Tianjin ET Technology offers a better economic and environmental choice to save energy and contribute to reduction of carbon emissions.
In 2016 Tianjin ET Technology enlarged the business scope to home decoration. ET Technology built new plant and workshop to print painting on ceramic tiles and glass as wall decoration. The painting content could be customized according to Clients' preference.
The pigment will be kept more than 10 years, no fade and no discolor.
Looking forward to build good business relationship with you.
