| Prod Model: |
LB-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Any Size |
| Type: |
Ultra Slim Light Box |
| Usage: |
Advertising |
| Material: |
Aluminum |
| IP Rating: |
IP66 |
| Shape: |
Square |
| Suitable For: |
Indoor |
| Installation: |
Ceiling Hanging |
| Certification: |
UL |
Product Description
Usage

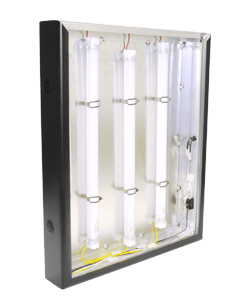

RigidLyte Econo light boxes are for applications where you need the tough, workhorse performance of extruded aluminum, at the lowest possible price. Available for indoor use.
Lightweight
All-aluminum construction, ready to hang
Slim profile
3'' deep, side-loading frame
Upgraded components
All electronic ballasts, all UL-listed components, all USA-assembled
Lenses
Clear + diffused acrylic panels
Finish options
Standard colors include natural aluminum, black, white and off-white
Warranty
90-day Ltd. Parts warranty (lamps not incl. )
| NOMINAL SIZE GRAPHIC SIZE | OUTSIDE DIM. | VISIBLE AREA | CASE DEPTH | FRAME WIDTH |
| 10" x 20" | 10.75 x 20.75" | 9" x 19" | 3" | 0.875" |
| 12" x 12" | 12.75 x 12.75" | 11" x 11" |
| 12" x 24" | 12.75 x 24.75" | 11" x 23" |
| 12" x 36" | 12.75 x 36.75" | 11" x 35" |
| 13" x 60" | 13.75 x 60.75" | 12" x 59" |
| 14" x 28" | 14.75 x 28.75" | 13" x 27" |
| 15" x 36" | 15.75 x 36.75" | 14" x 35" |
| 16" x 20" | 16.75 x 20.75" | 15" x 19" |
| 16" x 30" | 16.75 x 30.75" | 15" x 29" |
| 16" x 48" | 16.75 x 48.75" | 15" x 47" |
| 18" x 36" | 18.75 x 36.75" | 17" x 35" |
| 18" x 48" | 18.75 x 48.75" | 17" x 47" |
| 20" x 20" | 20.75 x 20.75" | 19" x 19" |
| 20" x 40" | 20.75 x 40.75" | 19" x 39" |
| 20" x 60" | 20.75 x 60.75" | 19" x 59" |
| 24" x 30" | 24.75 x 30.75" | 23" x 29" |
| 24" x 50" | 24.75 x 50.75" | 23" x 49" |
| 24" x 60" | 24.75 x 60.75" | 23" x 59" |
| 30" x 48" | 30.75 x 48.75" | 29" x 47" |
| 30" x 70" | 30.75 x 70.75" | 29" x 69" |
| 36" x 48" | 36.75 x 48.75" | 35" x 47" |
| 40" x 60" | 40.75 x 60.75" | 39" x 59" |
| 48" x 60" | 48.75 x 60.75" | 47" x 59" |
