200W 5r / 230W 7r Sharpy Beam Moving Head / 200W Sharpy Beam Stage light / Sharpy Beam 200W Moving Head Light / Sharpy 230W Beam 7r Moving Head / 200W Beam 5R Moving Head (ES-C001)

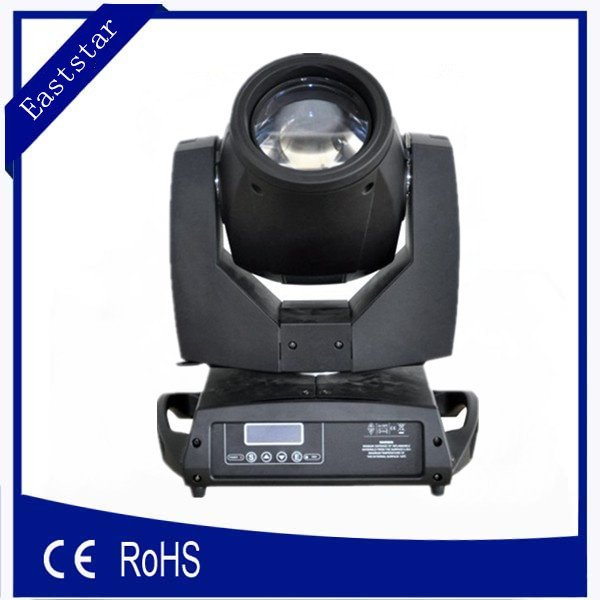

Name: 200W 5R/7R 230W Sharpy Beam Moving Head
Type: Sharpy Beam Light
Model: ES-C001
Used Style 200W Beam Moving Head Light with Jenbo Lamp ES-C001)
Technical parameters:
- Voltage: AC100V-240V/50Hz-60Hz
- Lamp: Phillps 200W
- Control channel: 1
6CH/20CH
- Color: 5600-8000K
- Function: A color wheel, 14colors + white, a pattern plate, 17Pattern + white
- Replaceable pattern plate, high speed wobble effect, an atomizer, a eight prism, positive and negative direction of rotation
- And positioning function with prism. Focus, zoom, LCD display.
- Optical device, 3 lens type lens group, zoom 0-3.9 degree
- Electronic focusing20 meters
- Body: Aluminium structure with die-cast plastic cover
- Ballast: Electronic rectifier
- Channel: 16-20CH
- Strobe: 13 times/second
- Motor: Three-phase motor
- Horizontal scanning: 540 degrees (16bit precision scanning )
- Vertical scanning: 280 degrees (16bit precision scanning )
- NW: 17KG
- GW: 19KG
- Carton size: 40x45x51CM /carton
- Flycase size: 79x47x73 CM(2in1)
Applicable place:
- Indoor and outdoor party
- Live show
- Music show
- Concerts
- Wedding
- Special events
- TV station
- Theatre
- Meeting room
- Studio
- Ceremony
- Mobile DJ
- Exhtition booth
- and so on
Light source |
PHILIPS 5R,189W |
Rated lifespan |
2000hrs |
Color |
1 color wheel with 14 colors + white |
Gobo |
1 gobo wheel with 16 gobos+ white |
Control mode |
DMX512,master/slave, self-working |
Channel |
16CH |
Beam angle |
parallel beam angle of 0-2.3° adjustable, frost effect |
Pan |
540° |
Tilt |
270° |
Shutter/strobe |
0.5-9 times/s adjustable, double flash |
Dimming |
0-100% linear adjustable |
IP |
IP20 |
East Star Photoelectric Tech Co., Limited is a company with 6 years of professional experience in intelligent stage lighting, LED lighting applications, intelligent building lighting fixtures, and LED product development, production and sales of integrated comprehensive high-tech enterprises.
East Star Photoelectric Tech Co., Limited is located in No. 2 East Xinlian Street, Jiaoxin Village, Shijing Town, Baiyun District, Guangzhou, Guangdong, China. A group of excellent professional engineers and highly qualified technicians. For the high-speed high-quality customer service basis.
At present, the East star power more than 95% of products exported to Europe, America, Africa, Asia and other countries and regions.
Create world-class lighting company, casting the light of international top brand" for the long-term development goals, the same companies also accept OEM service.
