Prod Model: |
Unfold Round LED Panel Light |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Installation: |
Unfold |
Size: |
120*120*20 |
Life Span: |
50000hours |
CRI: |
80 |
Light Source: |
LED |
Housing Material: |
Acrylic |
Dimmable: |
Without Dimmable |
Appearance: |
Round |
Type: |
Ceiling |
Base Material: |
Metal |
Certification: |
RoHS |
Voltage: |
220V |
Beam Angle: |
60?? |
Emitting Color: |
Warm White,Natural White,White |
Product Description
Product Description

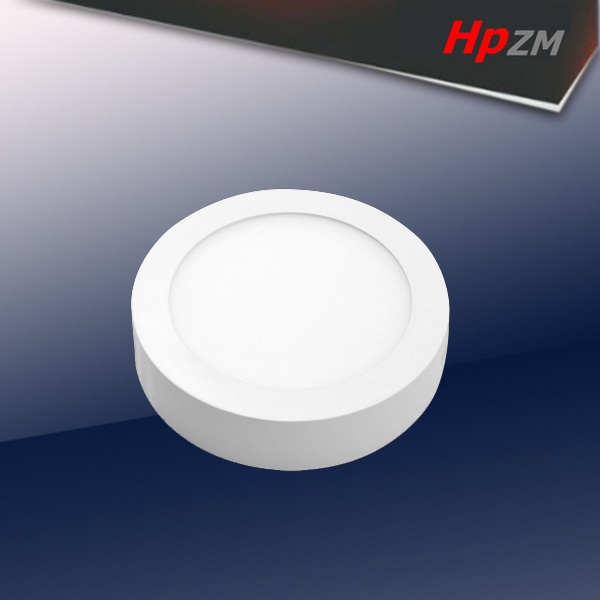

12W Round LED Panel Light LED Panel
Product Description
12W Round LED Panel Light LED Panel,3/4/6/7/9/12/15/18/25W Is Optional
High Brightness LED Panel Light,SMD2835 LED Panel Light,Energy-Saving LED Panel Light
Feature:
1. Beautiful and clean appearance,easy installation
2. High light and high luminous efficiency SMD2835 LED as light source
3. High quality light guide plate and diffusion plate,ensure the light uniform and soft
4. Superior die casting aluminum makes good heat dissipation,no heavy metals and harmful gas,environmental friendly
5. Adopting outside power supply with wide input voltage,no flicker,no glare,no radiation
6. Low power consumption,can save energy more 80% than traditional fluorescent lights
7. CE, RoHS approved,safe and reliable
8. Long life time, up to 30,000 hours
Applications:
1. Commercial and exhibition locations
2. Hotel,shopping mall
3. Conference/meeting room
4. Factory, office, residence
5. School, hospital and other public places
Installation:
1. Cut a hole on the ceiling where the panel light will be installed
2. Install the LED driver and imbed the panel light in the hole
3. Connect the power supply and start
SEPECITION:
Model No. | PL-12W-RD |
Power consumption | 12W |
Input voltage | AC85-265V |
Working frequency | 50-60HZ |
Size | 170*14mm |
Cutout | 155mm |
LED type | SMD2835 |
LED qty. | 60pcs |
IP grade | IP20 |
Luminous | 890lm |
Luminous efficiency | 70lm/w |
Beam angle | 120° |
Color temperature | Warm White:3000-3500K Nature White:4000-4500K White:6000-6500K |
CRI | Ra>70 |
Power factor | >0.9 |
Working temperature | -20 ~ +60centigrade |
Operating lifespan | >30,000hrs |
Warranty | 2years |
