Prod Model: |
NS-SB432-150W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
150W LED Area Lighting |
LED Chip: |
Samsung |
Driver: |
Waterproof Mean Well |
Heat Sink: |
Integrate Aluminum |
Beam Angle: |
120 |
Size: |
L22.9*W15.8*H7.1 |
Power Factor: |
>0.95 |
Color Temperature: |
3000k/4000k/5000k |
Warranty: |
5 Years |
Lifesan: |
50000 Hours |
Light Source: |
LED Light |
Color Temperature(',CCT): |
Cool White |
Lamp Body Material: |
Aluminum Alloy |
Lamp Power: |
>200W |
Power Supply: |
AC |
Average Life: |
>8000h |
Application: |
Garden |
IP Rating: |
IP65 |
Certification: |
EMC |
Voltage: |
100-277V |
Product Description

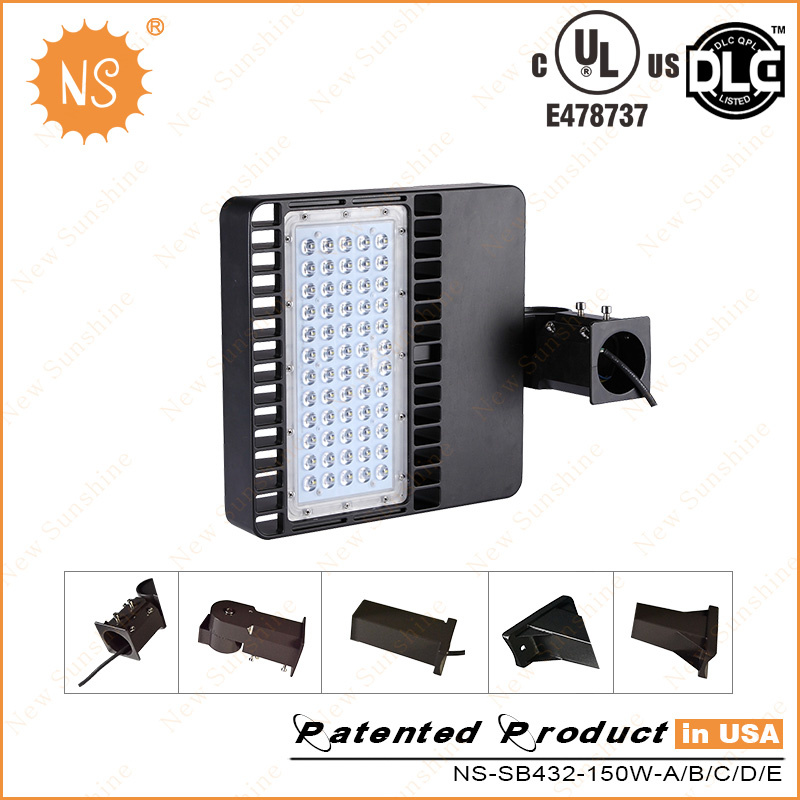

UL DLC listed IP65 15000lm 150W led area lighting
Product Information
Part Number: NS-SB432-150W
Item Weight: N\W: 10.5KG, G\W: 12KG
Product Dimensions: L32.3″xW15.8″Hx7.1″
Warm White(3000-3500K) Neutral White:(4000-4500K) Cool White(6000-6500K)
Material: Die-Cast housing
Wattage: 150watts
Item Package: Quantity 1
Luminous Flux: 15000lm
Certification: UL cUL DLC
Item Code | Power(W) | Volltage(V) | Lumens(Lm) | G*W (Kg) | QTY/Carton | Size/Carton(inch) |
NS-SB432-80W | 80 | AC100-277 | 7200-8000 | 6.5 | 1 | L22.9″xW15.6″xH4.6″ |
NS-SB432-100W | 100 | AC100-277 | 9000-10000 | 7 | 1 | L22.9″xW15.8″xH7.1″ |
NS-SB432-150W | 150 | AC100-277 | 13500-15000 | 7 | 1 | L22.9″xW15.8″xH7.1″ |
NS-SB670-200W | 200 | AC100-277 | 18000-20000 | 12 | 1 | L32.3″xW15.8″xH7.1″ |
NS-SB670-300W | 300 | AC100-277 | 27000-30000 | 12 | 1 | L32.3″xW15.8″xH7.1″ |
Technical Details
1, Designed with a large cast aluminum body and a vertical vent pattern designed to improve thermal dissipation and provide a low side view profile.
2, The standard mounting hardware is comprised of a knuckle joint to allow for -90° through +90° degree angle and rotation capability.
3, An additional assortment of mounting kits allow for direct mounting to square poles and round poles.
4, Samsung LEDs and is powered by Meanwell drivers.
5, Luminaires are Dark Sky compliant,UL and DLC listed and are rated as IP65 (dust tight and will withstand powerful water jets).
6, Products be free of charge within 6 month of replacement service,5 years warranty for repair parts
Product Specifications:
1. Lamp Type: 150W led can light retrofit
2. Install: Screwed
3. Rating Power(W): 150W
4. Luminous Flux(lm): 15000LM
5. Input Voltage: 100~300VAC, 50/60Hz
6. LED chip: 100PCS, Sumsung
7. Color Temperature(K): 2700-6500K
8. Beam Angle: 120 degree
9. Operation temperature: -20C~50C
10. Storage temperature: Normal temperature
11. Storage humidity: Normal humidity
12. Life Time (Hrs): 50000H
13.Waterproof Rating: IP65
Advantage:
1, Die-Cast housing with UV resistant powder coating
2, UL/CUL DLC listed,suitable for wet location,IP65
3, High impact polycarbonate diffuser
4, Operating temperature: -20°C to 50°C
5, THD<15%,Power Factor >0.9
6, 5 years warranty
6. Instant start, No flickering, No humming
7. Easy to install and operate
Package details:
1 150W led can light retrofit
Carton size : L22.9″xW15.8″xH7.1″ inch,1PCS/CTN, G.W.: 12KG
Notice:
1. Make Sure To Cut Off The Power Before Install led can light retrofit
2. Not suitable for dimmers or electronic switches or remote controls.
