Prod Model: |
p10 outdoor led display |
Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
Module Size: |
160mm*160mm |
Scan Method: |
1/4 Scan |
Brightness: |
>8500CD/M2 |
Optimal Viewing Angle: |
160°(W) 120°(H) |
Refresh Rate: |
≥2200Hz |
Display Type: |
LED Video Display |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Application: |
Advertising |
Pixel Configuration: |
1R, 1G, 1B |
Pixel Pitch: |
10mm |
Display Function: |
Video Display |
Scanning Mode: |
1/4 Scan |
Certification: |
FCC |
Pixel Density: |
10000 dot / m² |
Average Power Consumption: |
600W / m² |
Product Description
Product Description

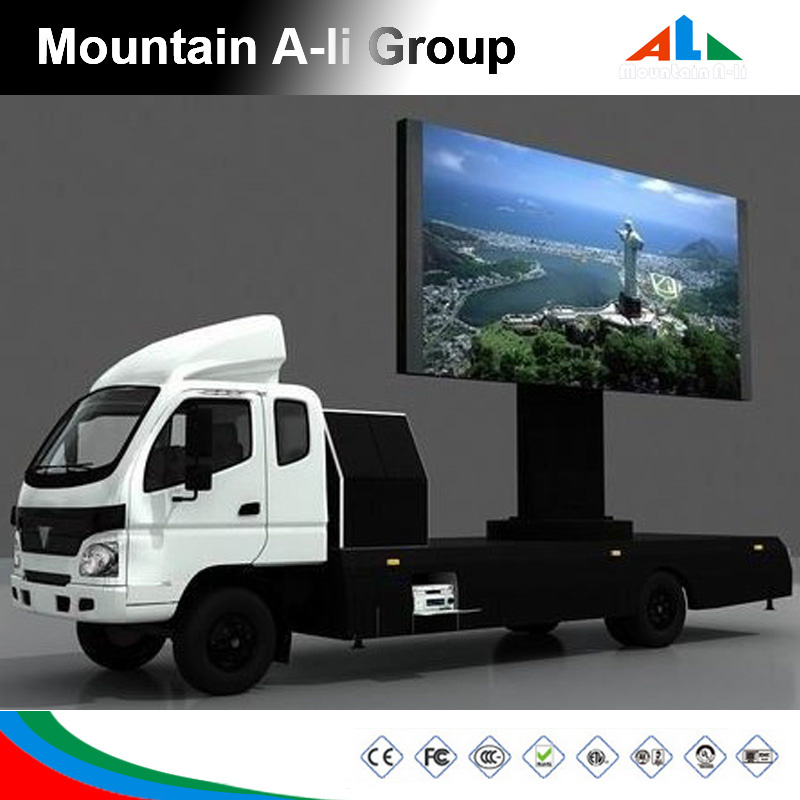

Outdoor Full Color LED Display (P10 advertising LED Display Screen)/LED sign/LED wall
1. Full color outdoor LED display/led display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
(LED stage display, LED Outdoor video wall, Wedding LED display, The stage LED electronic screen, LED large screen full color display, advertising led display, outdoor led display, indoor led display)
2. P10 Outdoor LED display Features of the product:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.
3. Description: LED Display /led display screen/LED sign/LED video wall
1). Model No.: P6mm, P7mm, P8mm, P10m, P12mm, P16mm, P18mm, P20mm(DIP LED)
2). Display Color: 256*256*256
3). LED Chips: Nichia, Cotco, CREE, AXT, Taiwan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight box, wooden box package
7). Guarantee: 2 year with parts
P10 Outdoor Full Color LED Display /LED screen/LED sign/LED video wall
Certification(Mountain A-Li LED DISPLAY)
3C certification
CE certification
ISO9000
ROHS certification
IP65 certification
EMC certification
The specifications of modules |
Items |
Parameter |
Product Model |
P10 Full Color Led Module |
Module size |
160mm*160mm |
Pixel pitch |
10mm |
Pixel density |
10000dots/m2 |
Pixel configuration |
1R1G1B |
Module resolution |
16dots(W)*16dots |
Module maximum power consumption |
20W |
Module Thickness |
25CM |
Module Weight |
0.55kg |
Driving method |
Constant Current Driving |
Scanning method |
1/4 scan |
Interface |
HUB75B |
Brightness |
≥8500cd/m2 |
The specifications of cabinets |
Cabinet size |
960mm*960mm |
Module quantity |
36pcs |
Power supply |
5V/40A 5V/60A |
Cabinet resolution |
96*96dots |
Optimal viewing distance |
10M ~ 50M |
Optimal viewing angle |
160°(W) 120°(H) |
RHWorking temperature |
(Work :-20 degree~ +50 degree ) |
System operating humility |
10%-95% |
The specifications of power supplier |
Operating Voltage |
AC220V±10% |
Average power consumption |
350W/H |
Maximum power consumption |
≤700W/m2 |
Electric current |
≤20mA(single LED) |
The specifications of control card |
Control Panels |
Pentium4 or above |
Operating system |
WIN98/2000/NT/XP |
Control model |
Synchronization with PC |
The specifications of the main technical parameters |
Driving device |
Constant Current Driving |
Refresh rate |
≥2200HZ |
Grey scale |
RGB Each 256, can display 16.7M colors) |
MTBF |
≥9000hours |
Power switch |
Automatic Switch |
Display Mode |
800*600/1024*768/1280*900 |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
