Module Size:
256mm * 256mm
Module Resolution:
16dots(W) * 16dots(H)
Max Power Consumption:
35W
Driving Method:
Constant Current Driving
Optimal Viewing Distance:
10m - 50m
Optimal Viewing Angle:
160o(W) 120o(H)
Operating System:
Win98/2000/Nt/XP
Control Mode:
Synchronization with PC
Refresh Rate:
≥600Hz
Power Switch:
Automatic
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Pitch:
16mm
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
350W / m²
Scanning Mode:
Static Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC,EMC, IP65
Pixel Density:
3906CD/M2
Product Description
Product Description Product features: 1) Ultra-high- definition display, high-precision seamless 2) The new structure designed to meet the lifting, stacking requirement, to meet the requirements for indoor and outdoor 3)Ultra-high refresh rate, support the camera recordor , to ensure a clear picture quality 4) Simply installation, easy to maintain, easy to use

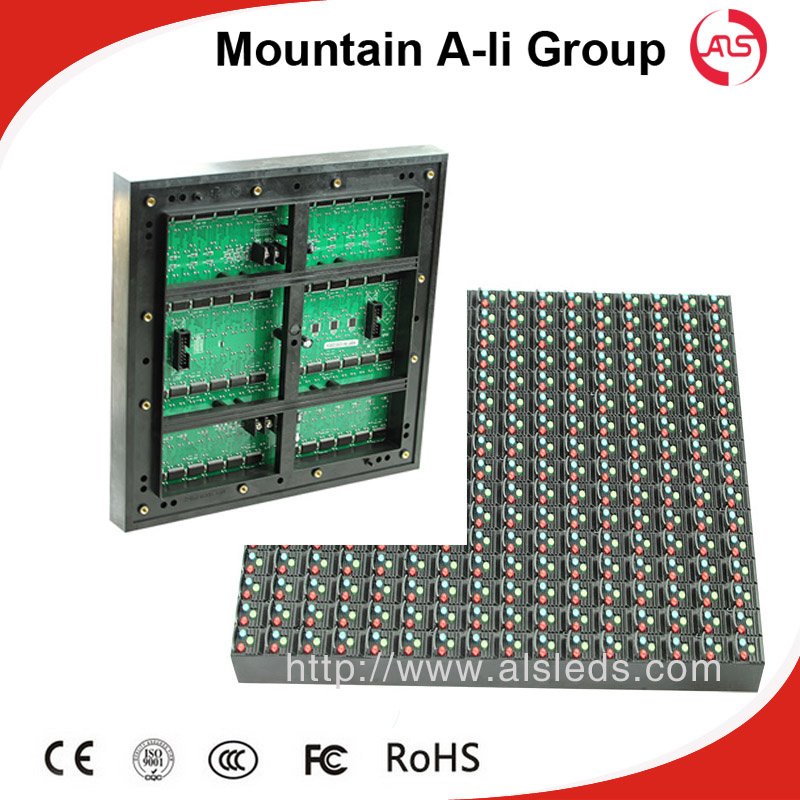

P16 Outdoor Full Color Module Technical Parameters
Item
Parameter
Model
P16 full color LED module
Module size
256mm * 256mm
Pixel pitch
16mm
Pixel density
3906dots/m²
Pixel configuration
1R1G1B
Module resolution
16dots(W) * 16dots(H)
Max power consumption
35W
Module thickness
33mm
Module weight
1KG
Driving method
Constant current driving
Scan method
Static scanning
Interface way
HU40
Brightness
≥7500cd/m²

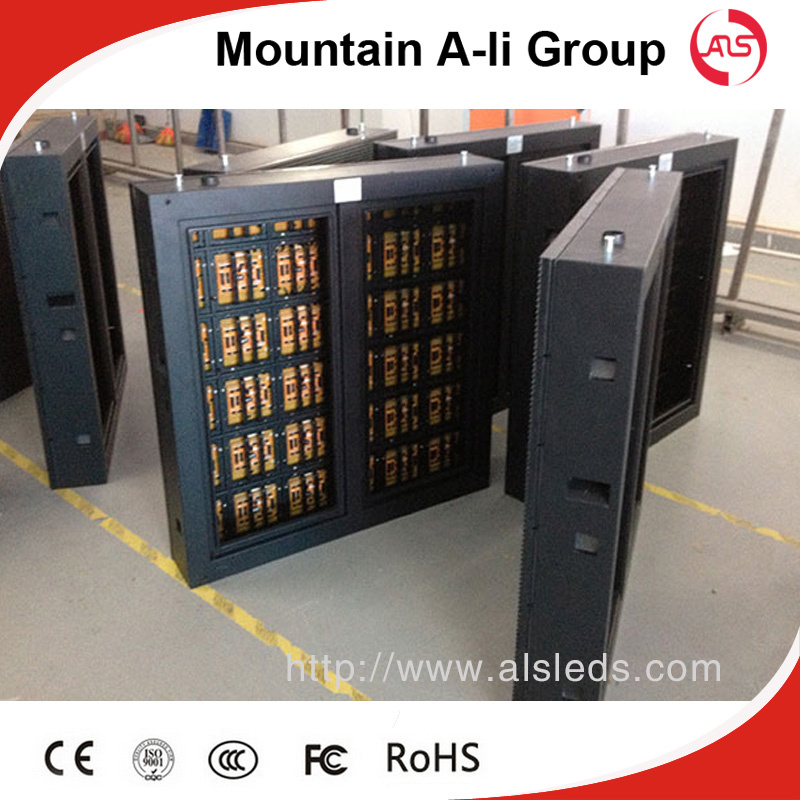

Cabinet size
1024mm * 1024mm
Power supply mode
5V/40A 5V/60A
Optimal viewing distance
10M - 50M
Optimal viewing angle
160º(W) 120º(H)
Environment temperature
-20º ~ +50º
Relative humidity
10% - 95%
Operating voltage
AC220V ± 10%
Average power
350W/H
Max power consumption
≤800W/m²
Control mode
Synchronization with PC
Driving device
IC constant current driving
Refresh rate
≥600HZ
Gray/Color
RGB each 256 grade,can display 16.7M color
MTBF
≥9000hours
Power switch
Automatic switch

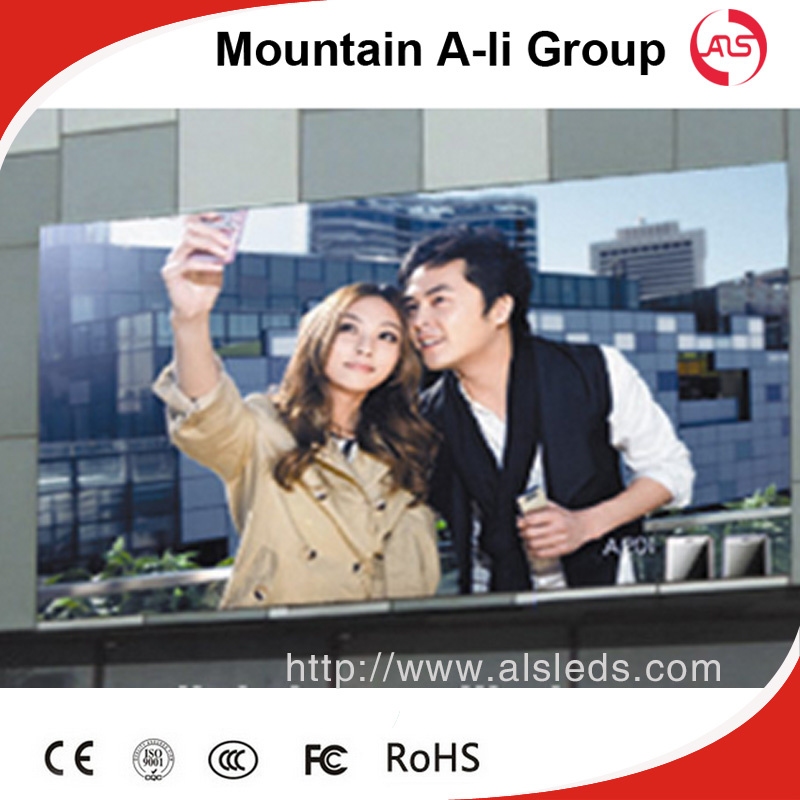

Application: 1) Large hall, sports arena, banking, telecommunications, 2)Government agencies, terminal, pier, railway stations, 3) The stock market and othertrading marketm medical systems, 4) Electric power,galleries, and other publicity, adverting, information dissemination, the guide places, and so on.
product certificates: product:
