Prod Model: |
PT-P56M-18*1W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Lumens: |
1300lm±10% |
Life: |
50000h |
Power Source: |
AC |
Electric Current Type: |
DC |
Emitting Color: |
RGB |
Usage: |
Garden |
IP Rating: |
IP68 |
Certification: |
RoHS |
Input Voltage: |
12V |
LED Chips: |
Epistar |
Power: |
18W |
Product Description

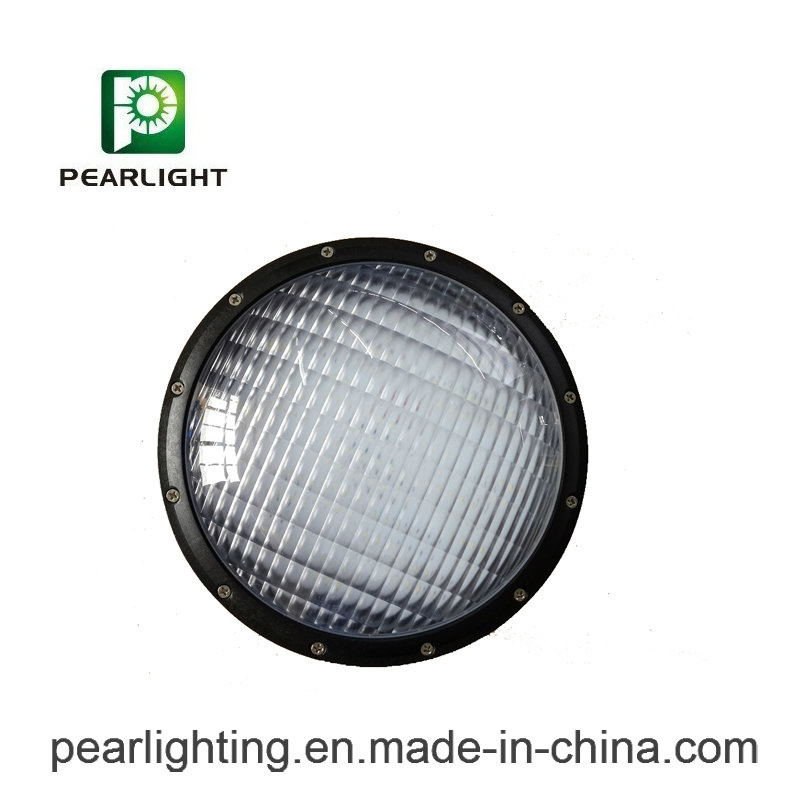

IP68 Waterproof LED Lights for Pool
Features:
Size: PT-P56M-105S5/252D5/315D5: 295(diameter) * 65(height) mm
PT-P56M-18x1W/18x3W: 300(diameter) * 70(height) mm
Plastic body & pc cover or Stainless steel body & pc cover, easy to install.
IP rating: IP68
Constant driver to make sure LED light working stably, avoid any flashing and noisy
Voltage:AC/DC 12V, Frequency: 50/60HZ
High quality and brightness LED source.
Projection distance: 10-20 meter
Color: Single color white, red, green, blue, yellow
Color: RGB, 14 kinds of color changing P.
6 kinds of RGB control mode: Remote control, WIFI control, DMX 512 control, Remote & switch remote control, Automatic control, Single color
Beam angle:DIP-25°or 120°,SMD5050/3528/5730-120°,high power-25°or 30°or 45°or 60°;
Life span 30000 hours
Overcurrent protection
Applications: Swimming pool,water-fall, park,fountain spring,garden.
COLOR: Single color or RGB
(1) Single color: White (pure white, warm white, cool white), Red, Green, Blue, Yellow.
(2) RGB: 14 kinds of RGB color Change patterns
1. Red (solid color red)
2. Green (solid color green)
3. Blue (solid color blue)
4. Red + green
5. Green + blue
6. Red + blue
7. Red + green + blue = white
8. Dynamic change: red change to green
9. Dynamic change: green change to blue
10. Dynamic change: red change to blue
11. Dynamic RGB change
Dynamic color change: from Red to Green, then Blue
12. Dynamic & Colorful change
Dynamic color change: from Red to Green, then Blue, Red+ blue, Green+ blue, Blue+ red, RGB
13. RGB fading effect
Fading from Red to Green, then Blue
14. Colorful fading effect
Control method: Remote control w/RGB controller, WiFi control, DMX control, Remote & switch control Auto control
Caution :
1. Please read product manual carefully and make sure the working circumstance is compliant with the condition requests in the manual before use the lamps.
2. Make sure that power is cut off before connect the lamps to power supply systems.
3. The lamp should be used under water
4. Lamps require Toroid transformer, electronic transformer is not applicable.
Specification
Parameters
Model No.
PT-P56M-18*1W
LED Qty
18 pcs 1W High Power
Input Voltage
AC/DC 12-13V
Frequency
50/60 Hz
Power
18±1w(RGB)
14±1w (R)
18±1w(G)
18±1w(B)
Color Temperature
w.w.3000-3500K
p.w.6000-7000K
c.w.8000-10000K
Luminous Flux
P.W. 1300Lm±10%
W.W./C.W. 1100Lm±10%
400Lm±10%(R)/ 800±10%(G)/200±10%(B)
RGB: 450±10%Lm
Color Rendering Index(CRI)
P.W.Ra≥70
Wave Length
R/G/B:620-630/515-525/
460-470 K/nm
Beam angle
30°/45°/60°
Dimension
300*70mm
Working
temperature
-10~+50ºC
Storage
Temperature
-10~+50ºC
Constant driver
yes
IP rate
(w/housing)
IP68
Packing
6 Pcs/ctn
70*39*39mm G.W.12 kg
