Shape:
Round or Flat Is Available
Power Consumption:
6watt 12watt 18watt 24watt
Input:
AC 85~265V
Size:
D120*H40mm
Installation Way:
Surface Mounting
Certification:
RoHS
IP Rating:
IP33
Warranty:
3 Years
Lamp Body Material:
Metal
Installation:
Exposed Type
Application:
Home Furnishing
Color Temperature:
2700~6500k
Source Number:
SMD2835
Product Description

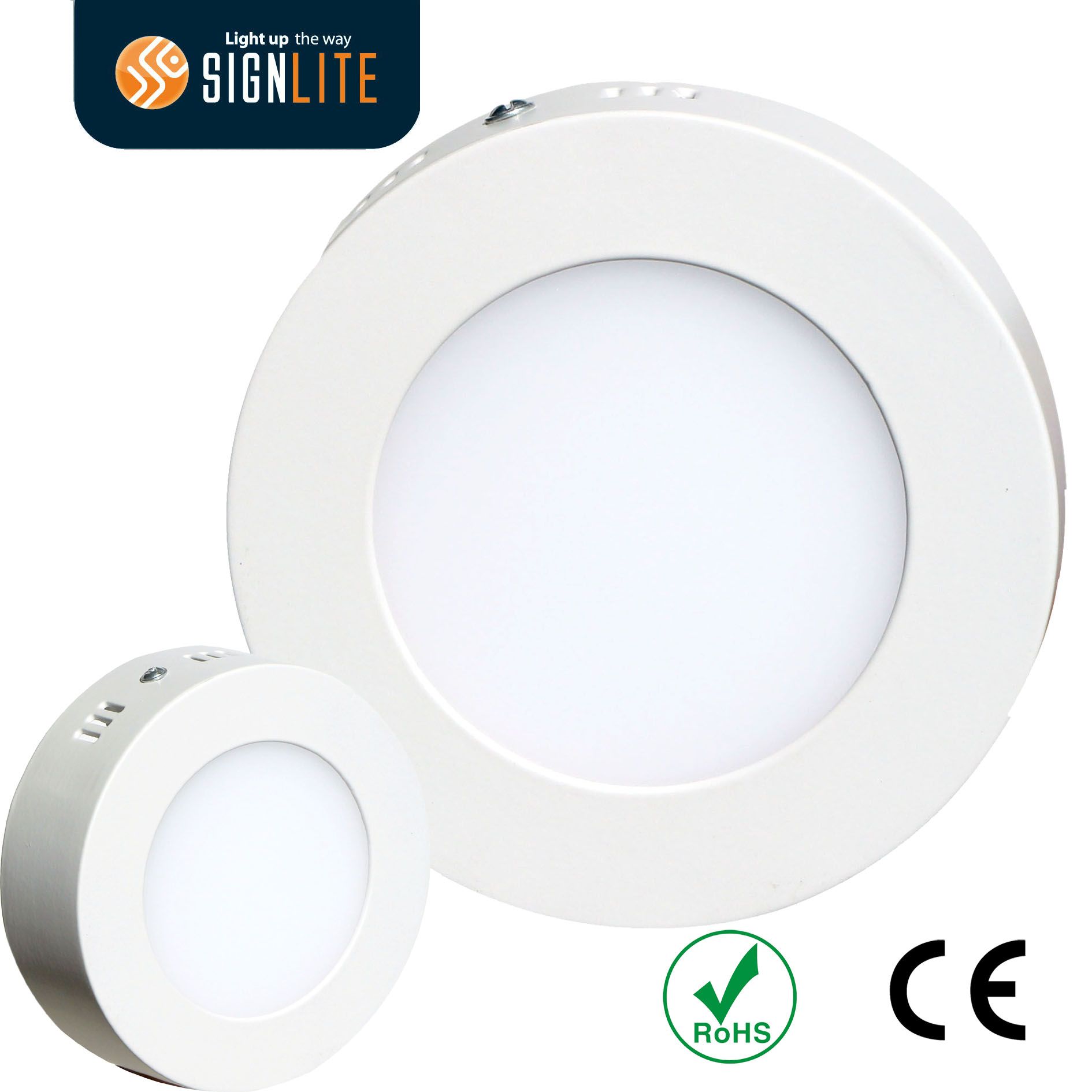

Surface mounting LED Down light with CE 3years guarantee
Article NO.: SMTHD01-6W
Features 1. Beautiful and clean,easy installation,different fixture color is available 2. High brightness and high luminous efficiency SMD2835 LED as light source 3. High quality imported PMMA light guide plate,ensure the light uniform and soft,no dark space 4. Adopting superior aero aluminum alloy,high heat dissipation design,will effectively extend the service life of light source 5. Adopting outside power supply with wide input voltage,constant current output,no flicker,no glare,no radiation 6. CE, RoHS approved,safe and reliable 7. Long life time, up to 30,000 hours
Specification Power consumption: 6watt 12watt 18watt 24watt Input voltage: AC85-265V Working frequency:50-60HZ Size: 120*40mm Installation way: surface mounting Package: 470*280*150mm,20pcs/carton 6.5kg LED type: SMD2835 LED qty. 30pcs IP grade IP20 Luminous 340lm Luminous efficiency 60lm/w Beam angle 120° Color temperature Warm White:3000-3500K Nature White:4000-4500K White:6000-6500K CRI Ra>80 Power factor >0.9 Working temperature -20 ~ +60centigrade Operating lifespan >30,000hrs Warranty 3years
Signlite Opto-electronics Co., Ltd was founded in 2006, original from sunsignled, which regularly manufacture signage back lighting LED modules and strips, we now expand our business from signage to indoor commercial lighting, and we successfully make network of distribution partners in Germany, Russia, Italy, France, Netherland, Poland, Dubai, Turkey, India, Japan and so on.
We have ISO9001, UL, CE, RoHS, REACH certification, We ensures a strong production capability with stable and safe raw material supplier chain. We always support distributors high performance products. We always make stock of raw material and finished products upon distribitors' order frequency by high efficiency ERP sysytem to ensure fast shipment.
We always driven by two simple principles: employ the latest technologies to develop quality lighting products and take really good care of our customers.
Signlite can provide OEM services according to our partner in different area request, and provide different IC, PCB and solution for the relevant market level. Signlite respect our partners' profit at first place.
Signlite dedicates great attention to our partners and supply high quality products all over the world. Our SMD LED systems for commercial lighting, sign&decoration are tested and proven through 8 years of experience. Long-term cooperation with our customers, team work and cooperation is very important to us.
Signlite first decoration project start on 2008, which our German customer use LED strip in a hotel lobby of Radisson hotel. We are the queit and brilliant Chinese manufacturer work together with our distributor to win a lot of projects.
Signlite always making brilliant and bright LED lite for you! We really appreciate distributors all over the world participate us to make a brighter, economier, and more environmental earth!
