| Prod Model: |
LED PAR 64 204- 10 S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No,: |
LED PAR 64 204-10 S |
| Light Source: |
204 10mm High Mcd LEDs |
| DMX Channel: |
8 DMX Channels |
| Voltage: |
AC 120-230V 50/60Hz |
| Beam Angle: |
30 Degrees |
| Electronic Dimming: |
0-100% |
| Housing: |
Long Silver/Black Housing |
| Operational Modes: |
DMX 512 Protocol, Sound Active, Auto, Master/Slave |
| Dimensions: |
300*270*240mm |
| Net Weight: |
2.0kgs |
| Waterproof: |
Not Waterproof |
| Electric Current Type: |
AC |
| IP Rating: |
IP20 |
| Emitting Color: |
RGB |
| Certification: |
RoHS |
| Type: |
PAR64 |
| Diffuser: |
Tempered Glass |
| LED Chips: |
Epistar |
| Shell Material: |
Long Silver / Black Housing |
| Life: |
100000hrs |
| Input Voltage: |
AC 120V-230V |
Product Description

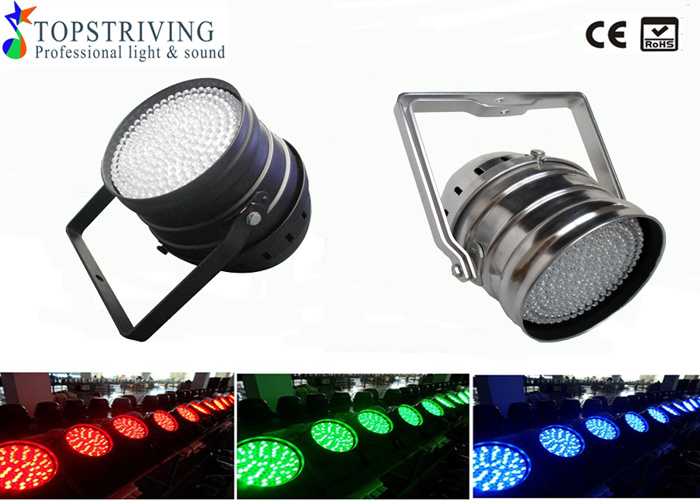

Stage Lighting/ 204 10mm LED PAR 64 / LED PAR Can (LED PAR 64 204- 10 S)
Technical Specifications:
Operational Modes: DMX 512 protocol, Sound Active, Auto, master/slave
Power supply: 220-240V AC 50/60Hz
Power consumption: MAX. 40W
Fuse: 250V 1.0A
DMX-control-channels: 8 channels
DMX-512-connection: 3-pin XLR
Number of LED: 204 high output 10 LED:
R/G/B/W 51 PCS FOR EACH
Flash-rate: Max. 10 Hz
Dimensions: 310*270*230mm
Weight: 3.00 kgs
AUTO: Run the preset shows;
CF00: Increasing brightness, then decreasing brightness, the speed of increasing brightness,
Then decreasing brightness can be adjusted by the buttons of UP and DOWN from 00 slowest to 99 fastest.
CCO8: Color changes, the speed of color changes can be adjusted by the buttons of UP
And DOWN from 00 slowest to 99 fastest.
CS99: Color selections, the color selections can be done by the buttons of UP and DOWN from 00 to 99. R000:
Press the button FUN five seconds, till R000 shows in the led display,
The red color brightness can be adjusted by the buttons UP or DOWN;
G000: Press the button FUN five seconds, till G000 shows in the led display, the green color
Brightness can be adjusted by the buttons UP or DOWN;
B000: Press the button FUN five seconds, till B000 shows in the led display, the blue color
Brightness can be adjusted by the buttons UP or DOWN;
|
Channel 1 |
red from small to big brightness(dimmig) |
|
Channel 2 |
green from small to big brightness(dimmig) |
|
Channel 3 |
blue from small to big brightness(dimmig) |
|
Channel 4 |
master dimmer from small to full brightness |
|
Channel 5 |
strobe from slow to fast |
|
Channel 6 |
dimmer,color macro |
|
Channel 7 |
dimmer, increasing brightness, then decreasing brightness, colors following one by one |
|
Channel 8 |
running speed adjustments |
