| Prod Model: |
UP-PL100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
120 |
| LED: |
Taiwan High Mcd 100W LED White |
| LED Life Time: |
80000~100000 Hours |
| Color: |
7colors |
| Pan/Tilt: |
Pan=530°;Tilt=280° |
| Contrl: |
DMX 512 , Sound ,Auto, Master/Slave |
| Display: |
Four-Digital LED Display |
| Shell Material: |
Aluminum Alloy Composites Plastic |
| Light Source: |
LED |
| Material: |
Aluminum Alloy |
| Emitting Color: |
Changeable |
| Control Channel: |
16CH |
| Strobe: |
Electronic Strobe |
| Control Mode: |
Dmx Signal Control |
| IP Rating: |
IP20 |
| Certification: |
RoHS |
| Voltage: |
AC100~240V, 50~60Hz |
Product Description

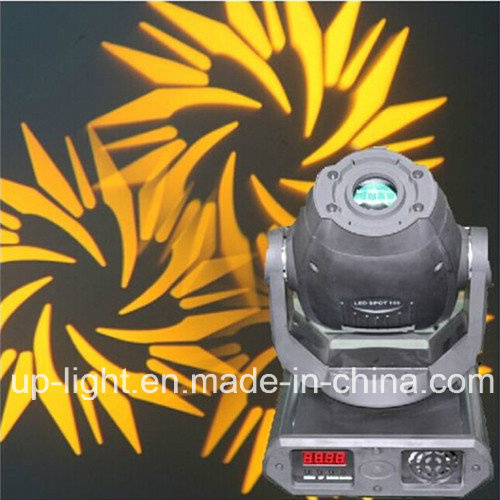

Stage Lighting 100W LED Mini Moving Head Spot Light
TECHNICAL SPECIFICATIONS
Power supply: 100-240V AC 50/60 Hz
Power consumption: 120W
Light source: Taiwan high MCD 100W LED WHITE
DMX-control-channels: 16
DMX-512-connection: 3-pin XLR
Dimensions:400*270*280mm
Net Weight:10kgs
Maximum ambient temperature ta: 45° C
Function of the control channels
| Channel | Function |
| Channel 1 | dimmer |
| Channel 2 | strobe |
| Channel 3 | Color-wheel |
| Channel 4 | semi-wheel |
| Channel 5 | Horizontal movement (Pan) |
| Channel 6 | Vertical movement (Tilt) |
| Channel 7 | prism |
| Channel 8 | prism rotations |
| Channel 9 | rotating gobo-wheel |
| Channel 10 | Gobo rotation |
| Channel 11 | Gobo running forward and backword |
| Channel 12 | focus |
| Channel 13 | Pan fine 16 bit |
| Channel 14 | Tilt fine 16 bit |
| Channel 15 | Speed of PAN / TILT movement |
| Channel 16 | reset |
