Module Size:320mm*160mm:
Cabiet Size:960mm*960mm
Tube Chip Color:
Full Color
IP Rating:
IP43
Pixel Pitch:
10mm
Display Function:
Video Display
Average Power Consumption:
300W / m²
Pixel Density:
10000 dot / m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC,ISO9001
Pixel Configuration:
SMD 3in1
Product Description
The specifications of modules
Items
Parameter
Product Model
p10 full color module
Module size
320mm*160mm
Pixel pitch
p10 mm
Pixel density
10000dots/m2
Pixel configuration
RGB 3in1
Module resolution
32dots(W)*16dots(H)
Module maximum power consumption
15W
Module Thickness
14CM
Module Weight
0.45kg
Driving method
Constant Current Driving
Scanning method
1/4 scan
Interface
HUB75
Brightness
≥1500cd/m2
The specifications of cabinets
Cabinet size
960mm*960mm
Module quantity
18
Power supply
5V/40A 5V/60A
Cabinet resolution
96*96dots
Optimal viewing distance
10M~50M
Optimal viewing angle
160°(W) 120°(H)
RHWorking temperature
Work :-20ºC~+50ºC
System operating humility
10%-95%
The specifications of power supplier
Operating Voltage
AC220V±10%
Average power consumption
150W/H
Maximum power consumption
≤900W/
Electric current
≤20mA(single LED)
The specifications of control card
Control Panels
Pentium4 or above
Operating system
WIN98/2000/NT/XP
Control model
Synchronization control
The specifications of the main technical parameters
Driving device
IC Constant Current Driving
Refresh rate
≥400HZ
Grey scale
RGB Each 256, can display 16.7M colors)
MTBF
≥9000hours
Power switch
Automatic Switch
Display Mode
800*600/1024*768/1280*900

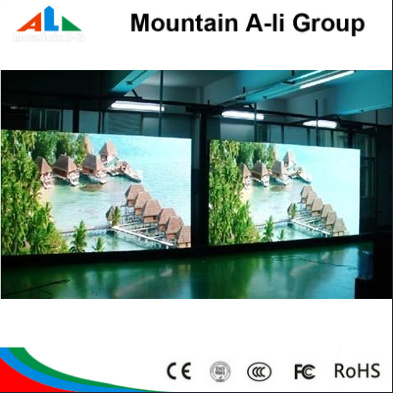

Indoor p10 led screen SMD 3 in 1 320mm*160mm
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
