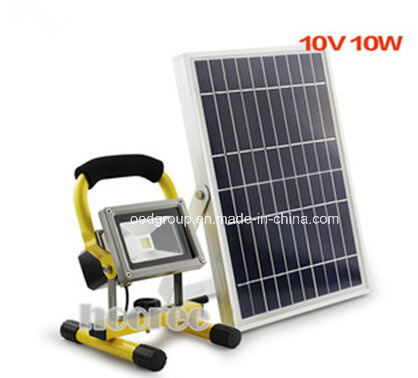

Solar Flood Light 10W Solar Rechargeable LED Flood Light

Prod Model:	OED-SL-330B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Optically Controlled Induction To Adjust:	5lum-20lum
COB LED:	3528SMD
Light Source:	LED Lamp
Lamp Body Material:	Aluminum Alloy
Light Type:	Solar
Color Temperature:	Pure Wihte
Power:	6W-10W
Technics:	Painted Matte
Illumination Time:	8h
Cell Type:	Ni-MH Battery
Charging Time (',H):	10
Usage:	Street
IP Rating:	IP65
Certification:	RoHS
With Light Source:	With Light Source
Voltage:	10V

Product Description

Product Description
Model: JCH-TGD-10W
Power: 10W
Working voltage: 12V/24V DC, 100-240V AC
Color: 2800-7000K
Luminous flux: 1000-1100lm
Lifetime: >50000hours
Ra: >80
Power Factor: >95%
Efficiency: >90%
Beam degree: 120° -140°
Body Size: 190mm
With holder: 1500 mm
Lamp material: Aluminum die-casting and toughened glass
Housing color: Green/ Yellow/ Red/ Silver gray
Battery: Li-ion, 7.4V/ 4800mA
Workign temperture: -40~60 Centigrade
Warranty: 3years
Certification: CE&RoHS
NW: 3.2KG

Features:
1)High efficiency, high brightness, energy saving.
2)CE & RoHS approved, Quality Guaranteed
3)Environmental protection, no pollution(no lead and mercury), no radiation, conducive to the recycle and reuse;
4)Color having the diversity, controllability;
5)Widely used in building facades, the Plaza lights, garden trees and the landscape greening lighting and
The outdoor places where need spot lighting and lights decoration
6)Reliable quality & credit, 2 years warranty and 50.000 hours lifespan.
7)Chargeable battery: Working hours last for 4 hours with full charged battery.

Trade terms:
1. Payment: 30% deposit before production, 70% balance to be paid before delivery.
2. Production lead time for 100~500PCS: About 7days, 500~1000PCS: About 15days.
3. Sample can be delivered in 3days.
4. Shipping freight are quoted under your requests.
5. Shipping port Shenzhen or HongKong, China.
6. Discounts are offered based on order quantities.

Application:
Emergency lighting, vehicle maintenance

Light Source		High power Integrated LED
LED Chip		Epistar /Bridgelux
LED Total Power		10W
LED Luminous Efficiency		90LM/W
LED Initial Flux		900-1000lm(Tj=25°C)
Average Illumination and Effective Illuminated Area	1M  Height	≥480LUX
	2M  Height	≥150LUX
	3M  Height	≥40LUX
	4M  Height	≥35LUX
Color Index(CRI)		Ra > 72
Color Temperature(CCT)		Warm white: 2700-3500K Nature white:3500-5000K Cool white:    5500-6000K
Beam Angle		The Horizintal Axis:120° ; The Vertical Axis:60°;
Light Distribution Curve(Beam Pattern)		Asymmertric(Bat Wing)/Rectangular Beam
Battery type		Battery capacity can be customized
Running time		Running can be customized
Housing color		Color can be customized
PCB protection		Running with constant current,over-charging and dis-charging protection
LED indicator	Charging indicator	Indicator LED flash red and green
	Full charge	Indicator LED turn to green
	working	Indicator LED off
	Battery capacity drop to 10% Battery capacity drop to 5%	Battery Indicator LED flash red one time/second Indicator LED flashes red two times/second
Input Voltage		12V/24V
Frequency		50/60Hz
Total Harmonic Distortion(THD)		<20%
Storage Temperature		-40°C--60°C
Working Temperature		-4 0 °C --60°C;
Charging Temperature		0 °C --45°C
Light Body and Lampshade Material		Aluminum and PC
Warranty		2 years or 500 times charging cycle
IP level		IP65
Battery capacity		LI 3600mAH
Packing		1ps/box, 8pcs/ctn
Unit Size		L175*W160*H180mm
White Box Size:(mm)		L175*W160*H180mm
Carton Size:(mm)		L346* W322*H362mm
Working time:		5 hours
