LED Type:
SMD3535
Module Size:
320X160mm
Module Resolution:
40X20dots
Cabinet Material:
Iron/Aluminum
Brightness:
Over 6000nits
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
350W / m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Certification:
FCC
Pixel Pitch:
8mm
Pixel Density:
15625dots Per Sqm
Application:
Stage Performance, Advertising
Product Description
Full Color Outdoor P8 LED Display for advertising with high brightness, good uniformity, good stability and good waterproof, is sold very well on the market for good display performance and reasonable cost.
Product Features:
1. SMD led encapsulation technology confirm the wide view angle and good uniformity
2.High quality leds with black body with high contrast,high brightness up to 5500nits
3. Good Waterproof IP65, can be used under heavy rain weather and humid area
4. Stability Iron cabinets for fixed installation, with fast lock and aviation plugs, conveninet to install and dismantle
5. High quality, meet the request of international standard of CE, FCC,RoHs
6. Long life span >100000hours, and 3 year warranty

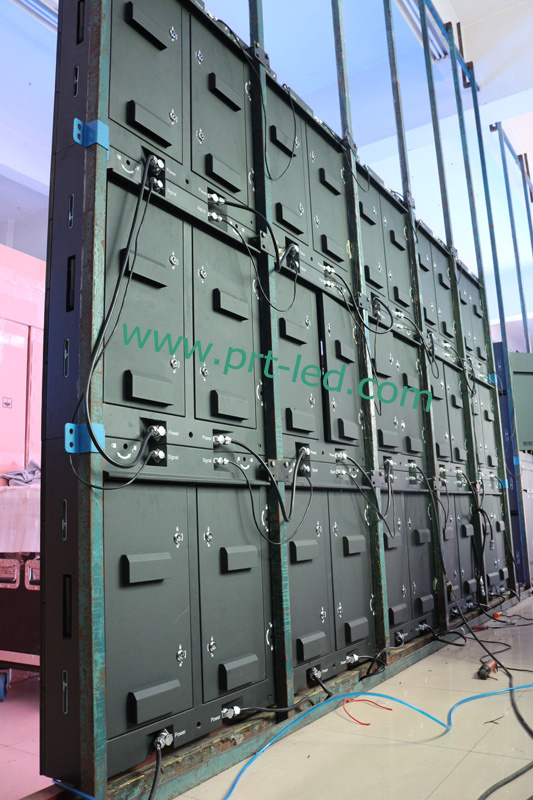

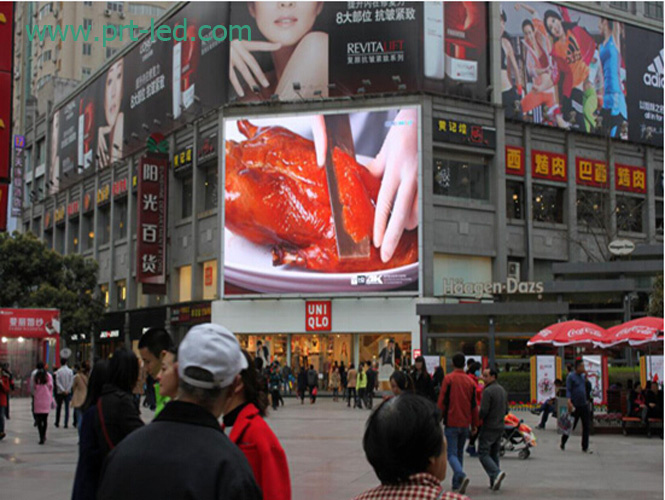

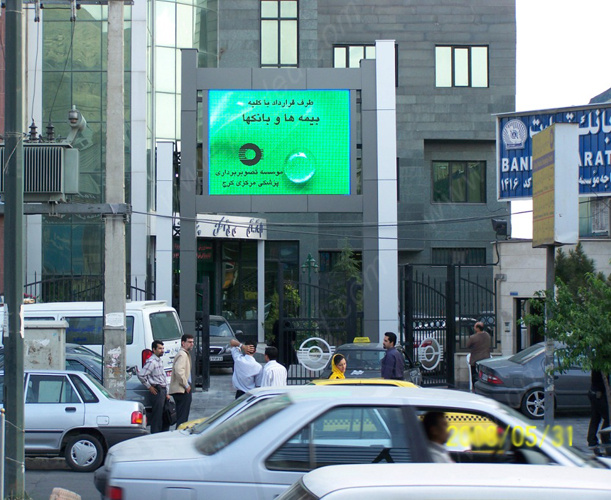

More pictures for reference:
P8 SMD Outdoor full Color LED Screen Specification
Pixel pitch
8mm
Size of module
320mm χ 160mm
Resolution of module
40 X 20
Size of cabinet
960mm X 960mm*150mm
Resolution of cabinet
120*120
Weight of Cabinet
<45KGS
Brightness
>5500cd/sq.m
Density
15625dots/sq.m
Best viewing angle
120 /120
Pixel Configuration
1R1G1B
Best viewing distance
8-75M
Maximum power consumption
<1000W/sq.m
Driving method
1/5 scan
Control method
Synchronization
Gray scale
16 bits
Colors
16.7million
Color temperature
6500k
Working voltage
AC220V/110V±10%
Working temperature
-20ºC~+50ºC±10%
MTBF
>10,000 hours
Frame frequence
≥60Hz
Refresh frequence
>1800Hz
IP grade
IP65
Life Span
100,000 hours
Data transafer method
RJ45
Effectivce Communication Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Systems operating platform
WINDOWS(WIN95,WIN2000,WINXP,WIN7), and interfaces for secondary development
