Module Size:
320mm*160mm / 256mm*128mm
Cabinet Size:
640mmx 640mm
Pixel Configuration:
1r1g1b 3 in 1
Package Mode:
SMD2121
Module Weight:
0.55kg
Control Mode:
Synchronization with PC
Certificates:
CE/ RoHS /ISO / CCC / FC
Delivery Time:
7-10working Days
Warranty:
2 Years
Other:
Low Energy Consumption ,Long Lifespan , Less Maint
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
600W / m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC,ISO9001,EMC,IP65
Pixel Pitch:
8mm
Pixel Density:
15625dots/M2
Product Description
P8 screen adversting 2 years warranty ,low energy consumption ,long lifespan ,less maintenance performance .
SMD P8 Outdoor LED Display for Advertising display techincal parameters
Unit Module
Item
parameter
Model
P8 surface mounted module
Module size
320mm*160mm / 256mm*128mm
Pixel Pitch
8mm
Pixel Density
15625dots/m2
Pixel Configuration
1R1G1B 3 in 1
Package mode
SMD2121
Module Resolution
40dots(W)*20dots(H) / 32dots(W)*16dots(H)
Max power consumption
25w
Module Thickness
2.8cm
Module Weight
0.55kg
Driving Method
Constant Current Driving
Scan Method
1/5scan / 1/4scan
Interface Way
HUB75B
Brightness
≥6200cd/m2 / ≥6500cd/m2
Unit Module
Cabinet size
640mmx 640mm
Quantity of Module
8
Power supply Mode
5V/40A / 5V/60A
cabinet resolution
80dots *80dots
Optimal Viewing Distance
8M-50M
Optimal Viewing angle
160°(W)120°(H)
Enviroment Temperature
Storage :-35ºC-+85ºC work :-20ºC-+50ºC
Power
Relative Humidity
10%-95%
Operating Voltage
AC220V±10%
Average power
400W/H
Max power Consumption
≤800W/m2
Current
≤20mA (Single LED )
Control system
CPU
Pentium4 or above P4 or above
Operate system
WIN98/2000/NT/XP
Control Mode
Synchronization with PC
Main technical parameter
Driving Device
IC Constant current driving
Refresh Rate
≥600HZ
Gray/Color
RGB each 256 grade, can display 16.7M clolor
MTBF
≥9000hours
Power Switch
Automatic Switch
Display Mode
800*600/1024*768/1280*900
SMD P8 Outdoor LED Display for Advertising display

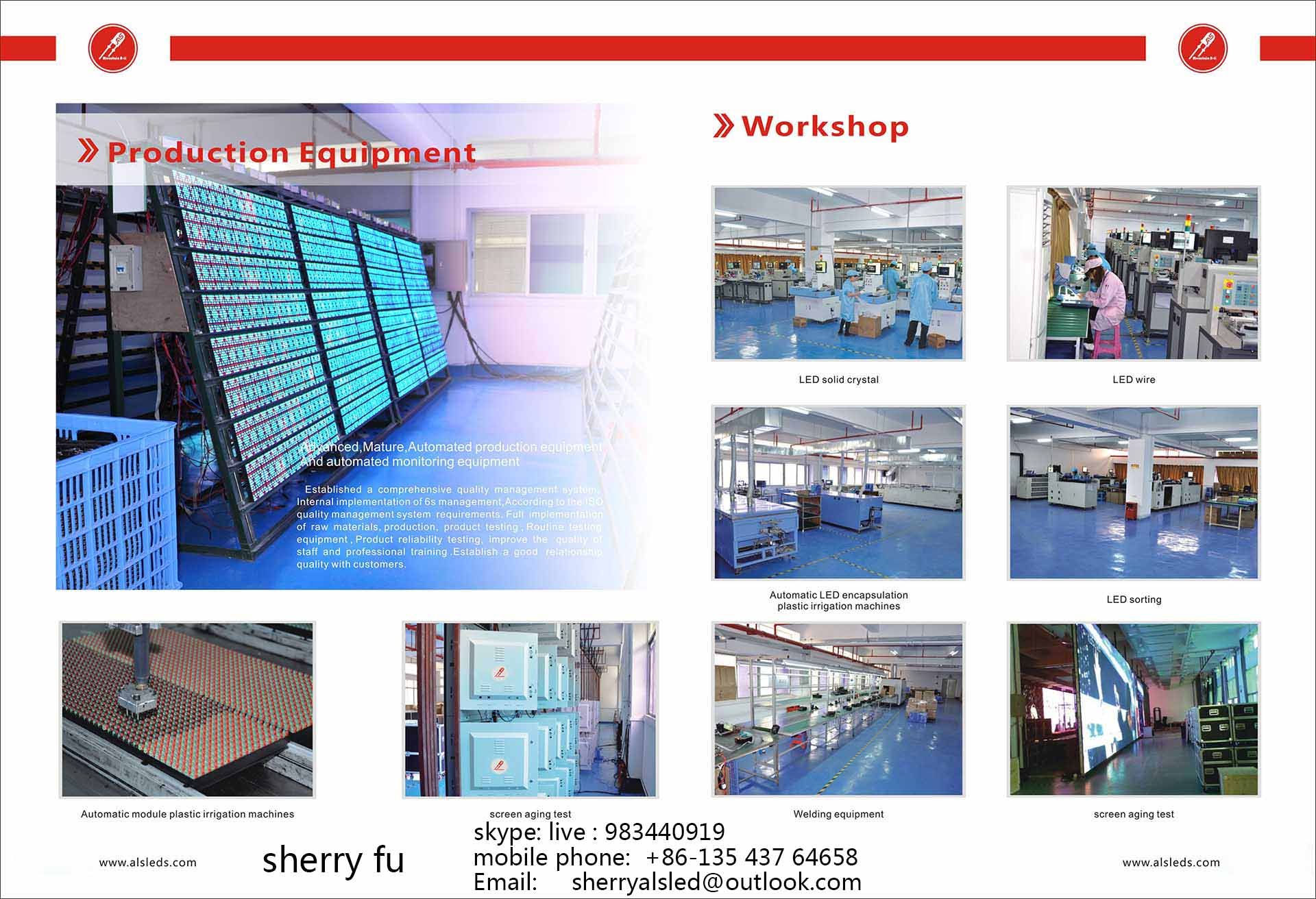

Workshop :
certificates :
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
