Display:
Blue LCD Display
Gobo:
14 Fixed Gobos + Open
Color:
13 Colors + Open
Ballast:
Electronic Ballast
Prism:
8-Faced Prism
Material:
Aluminum Alloy
Emitting Color:
Changeable
Strobe:
Combined Type Double Strobe
Control Mode:
Dmx Signal Control
IP Rating:
IP20
Certification:
RoHS
Light Source:
Osram Siruis Hri 230W
Control Channel:
13 Channel
Voltage:
AC90~240V
Product Description

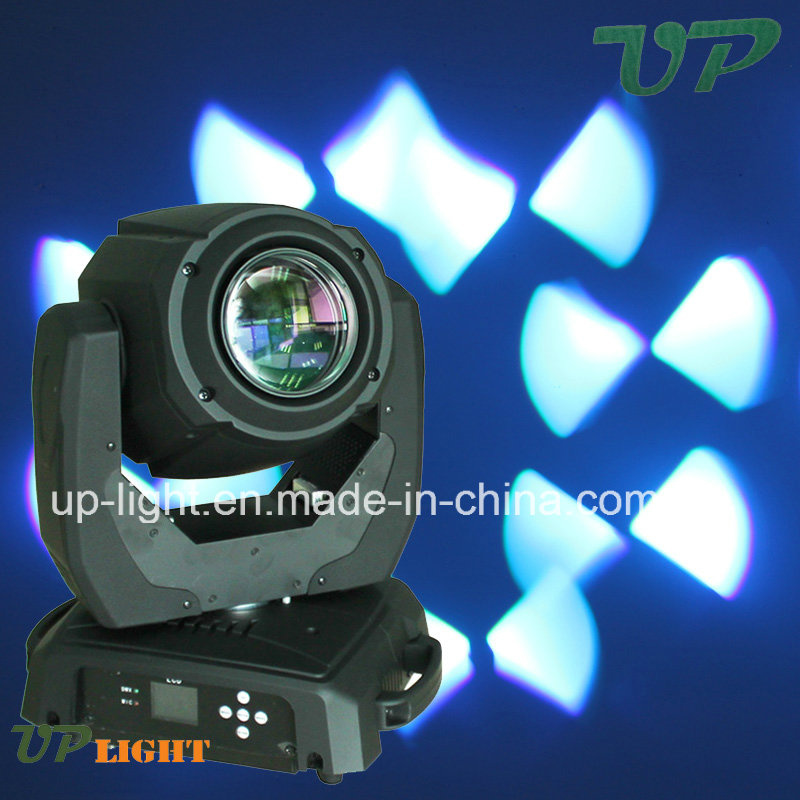

Sharpy beam 120W 2r moving head light
16 Prism Effect Beam Effect Input voltage: 110V / 240V AC, 50/60Hz; Machine Power: 150W; Light source: Osram 2r 120W (Philips 2r 120W); Color temperature: 8, 000 K; Average life: 2, 000 h; Color system: One color wheel with 13 colors; Single rotation rainbow effect; Gobo system: One Gobo wheel with 14 gobos and high speed shake effect; Optics: 3-Layer HD Optics Glass Lens, Optical Focus, 70, 000 Lumens at 10 meters (33 feet); Strobe: Mechanical shutter (1-13 times / s) and adjustable speed strobe effect; Prism: 8-facets rotation prism; Focus: Electronic linear focus; Beam angle: 1° To 3.8° ; Control mode: DMX512 signal control mode with 3 pin interfaces, Master-slave mode, Auto mode; Channel: 13CH; Ballast: Electronics ballast and AC/DC power supply. Power factor is more than 99%, THD<20%. Head movement: Horizontal: 540° , 8bit/16bit precision scanning with auto position correction; Vertical: 270° , 8bit/16bit precision scanning with auto position correction; Features: Color temperature correction, 0-100% Linear Color temperature reducing system, Color Temperature Linear adjust from 2700-7200K; Environment temperature: -15° C ~45° C; IP rating: IP20; Shell material: Aluminum alloy composites plastic Package size: 335*225*410mm Gross weight: 15KG
Production
Channel
function
Ch 1
Pan
Ch 2
Tilt
Ch 3
Pan fine
Ch 4
Tilt fine
Ch 5
Pan/Tilt speed
Ch 6
Dimmer
Ch 7
Strobe
Ch 8
Atomization
Ch 9
Color
Ch10
Color fine
Ch 11
Gobo
Ch 12
Gobo shake
Ch 13
Prism
Ch 14
Prism rotate
Ch 15
Prism amplification
Ch 16
Focus
Ch 17
Lamp on/off
Ch 18
Reset
