Lumen:
120000lm at 10 Meters 60000lm at 20 Meters
Prism:
16-Facet Prism
Dimmer:
0-100% Mechanical Dimmer
Beam Angle:
0-3 Degree
Colour:
14 + Blank
Gobo:
17 Gobos + Blank
Focus:
Linear Focus
Warranty:
1 Year
Application:
Stage, Disco, DJ Light, Night Club, Bar
Light Source:
Gas Discharge Bulb
Emitting Color:
Changeable
Control Channel:
16CH
Strobe:
Adjustable Speed Strobe
IP Rating:
IP20
Certification:
RoHS
Material:
Metal Frame + Die-Case Plastic Cover
Control Mode:
DMX512, Master-Slave, Sound Active and Auto
Voltage:
AC90-240V
Product Description

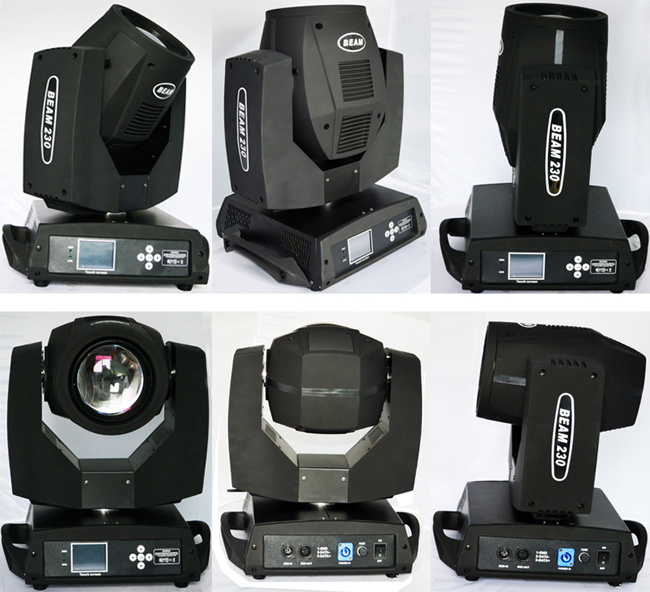

7R 230W Sharpy/7R 230W Beam Moving head light Original OSRAM SIRIUS HRI 7R 230W
Features:
With Photoelectric reset system,auto reset for mis-operation 3-phase motor,fast and very quiet and stable Original Sunon fans,noise below 38FB Double track design,no stuck for color wheel Prism: 24-facet prism (prism zooming) Bent design for colour wheel which decrease the lamp temperature and prolong lifetime With Voltage stabilizer inside, can work with unstable input volt. Lens: High quality optical lens, double film coated.
Light source:
Lamp: OSRAM SIRIUS HRI 7R 230W Electronic ballast Input volt: 110-240V/50/60Hz Luminou Flux: 110,000LM at 10M distance,60000Lumen at 20 meters Colour temperature: 8000K
Lighting Effect:
Gobo wheel: 17 gobos + blank (Gobos can be customized) Colour wheel: 14 + blank Channel: 16/20CH Prism: 16-facet prism Focus: Linear Focus Pan scan:540°(8/16bit) electric correction Tilt scan:270°(8/16bit) electric correction Control mode:DMX512, Master-slave, Sound active and Auto 0-100% mechanical dimming,mechanical strobe and speedable strobe, support Strobe macro function. Beam Angle:0~3°
Control programming:
Channel: 16/20CH Control mode:DMX512, Master-slave, Sound active and Auto
Packing: Net.W:16.5KG G.W (Paper CTN): 17.5kgs G.W(Flight case/1pc):35kgs G.W(Flight case/2pcs)63kgs Paper CTN Size:450*410*520MM Flight case/1pc:460*380*71MM Flight case/2pcs:680*460*780MM Accessaries: quick lock 2pcs clamp/hook: 2pcs safety rope: 1pc signal wire: 1pc power wire: 1pc user manual:1pc Many different power plugs for different countries and resigons
Products:
Lighting Effect:
DMX CHANNEL LIST
Standard Mode
Expand Mode
Channel
DMX value
Description
1
Color
0-255
2
Strobe
0-255
3
Dimmer
0-255
Dark to bright
4
Stactic Gobo
0-255
5
Prism
0-255
6
Prism rotation
0-255
7
Effect
0-255
Effect movement
8
Frost
0-255
frost
9
Focus
0-255
focus
10
Pan
0-255
11
Pan fine
0-255
12
Tilt
0-255
13
Tilt fine
0-255
14
Function
0-255
PAN/TILT FUNCTION.(FAST)
15
RESET
0-255
16
Lamp
0-255
No function
17 Pan/Tilt speed
0-255
Pan - Tilt - (Pan fine - Tilt fine)
18 Colour time
0-255
Colour wheel
19 Beam time
0-255
Dimmer - Frost - Prism
20. Gobo time
0-255
Static Gobo
FAQ:
Q1,Are you a factory or trading company?
A,We are factory with more than 8 years in lighting industry and we are SGS varified manufactuer.
Q2,How can I trust you? A,Please kindly check our business license and certificate issued by Bureau Veritas from home page.
Q3,How can I get a good quotation?
A,Please email your interested products,more information we get,better price we provide. Your quantity,your country,your requirement,quantity,shipping way,your package or any other requirement will help to give you correct quotation.
Q4,How about the delivery date?
A,For sample,we always have products in stock,we can send it once get your payment.For small order,it takes 5-15 working days.For container,it takes 3-4 weeks depend on what's products.
Q5,How about the shipping way?
A,By door-door express(such as DHL,UPS,TNT,EMS),by air freight(airport to airport),by sea(port-port).
Q6,How about payment terms?
A,We recommend T/T,Western Union Paypal is available but takes extra handling charges.
Q7,How about the MOQ?
A,Depends on the products,sample is available.
Q8,How could you promise the quality?
A,First,we have inspections both for material and complete products,during the assembly,our QC team will take care of the whole procedure, Second,we have 1 year warranty for all our products,if you have any problem,please help to provide picture or video,we will provide free parts for any quality problem.We provide life-long after-sale service for our clients.
Q9,Where is your factory located? How can I visit there?
A,Our factory is located in Guangzhou City, Guangdong Province, China, about 20 minutes away from Baiyun Airport,welcome to visit!
Q10: Dose the unit with any certificate here?
A: yeah, our product all ready passed CE, ROHS, TUV, CCC, etc.
Q11: What's the warranty ?
A: Our warranty is one year , we will provide free spare part to replace if any of them not working in one year .
