North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lamp:
Philips/Osram Lamp
Display:
Touch Screen LCD
Static Gobo:
14 Static Gobos Plus Open
Hs-Code:
95054090
Package:
Carton/Flight Case
Pan:
360° /540°
Tilt:
270°
Packing Dimensions:
53.5 X 400 X 41cm
N.W:
16 Kgs
G.W:
17kgs
Material:
Aluminum
Strobe:
Electronic Strobe
IP Rating:
IP20
Certification:
RoHS
Light Source:
Osram Sirius
Emitting Color:
14 Color+White
Control Channel:
16/20CH
Control Mode:
DMX 512 Control
Voltage:
90-245V
Product Description

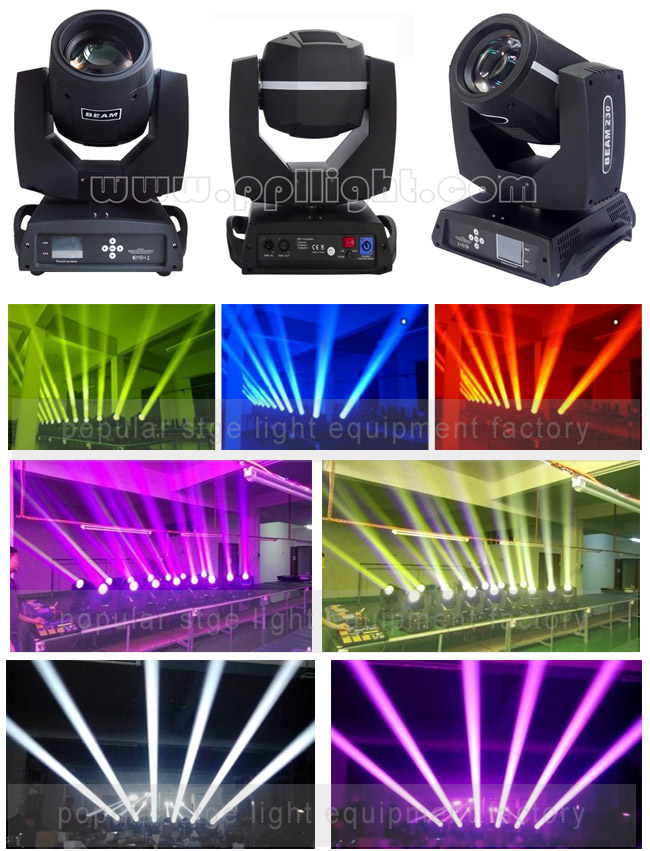

Features : 1.with a very bight philips lamp 2.powerful beam effect with output of 50000 lumen at 20m. 3.with speed adjustable and double direction 8 facet rotating prism,freewill location. 4.it offers 14 colors ,with speed adjustable and double direction rotation stream and rainbow effect. 17 gobos ,with gobos shaking effects . 5.with it's light weight ,it is small enough to be used in many place ---on trusses ,at live and on stage ,TV events ,in showrooms and conference rooms,etc.
Technicial Parameter : Products Name: 200W/230W Beam Moving head light Power supply: AC90-245V, 50/60Hz Ballast: Electromagnetic Ballast or Electronic Ballast Lamp source:200W philips /230W osram lamp Power consumption: 200W/230W Pan and tilt movement :8 and 16 bit resolution,For smooth and precise motion Movement: Pan: 360° /540° Optional, Tilt: 270° Speed of pan/tilt movement adjustable Scan position memory, auto reposition after unexpected movement Colors: Basic color wheel with 12 dichroic mirrors, plus White, two direction rainbow effect Static gobo: 14 static gobos plus open with different speed Gobo shaking and gobo indexing Prism and prism rotating: With 16 prism macros Linear dimmer in precise speed from 0%-100% Stepless frost: 0%-100% linear change frost Strobe/shutter: High speed shutter, 0-13 Hz or random strobe Packing dimensions: 53.5 X 400 X 41cm N.W:16 kgs G.W: 17kgs

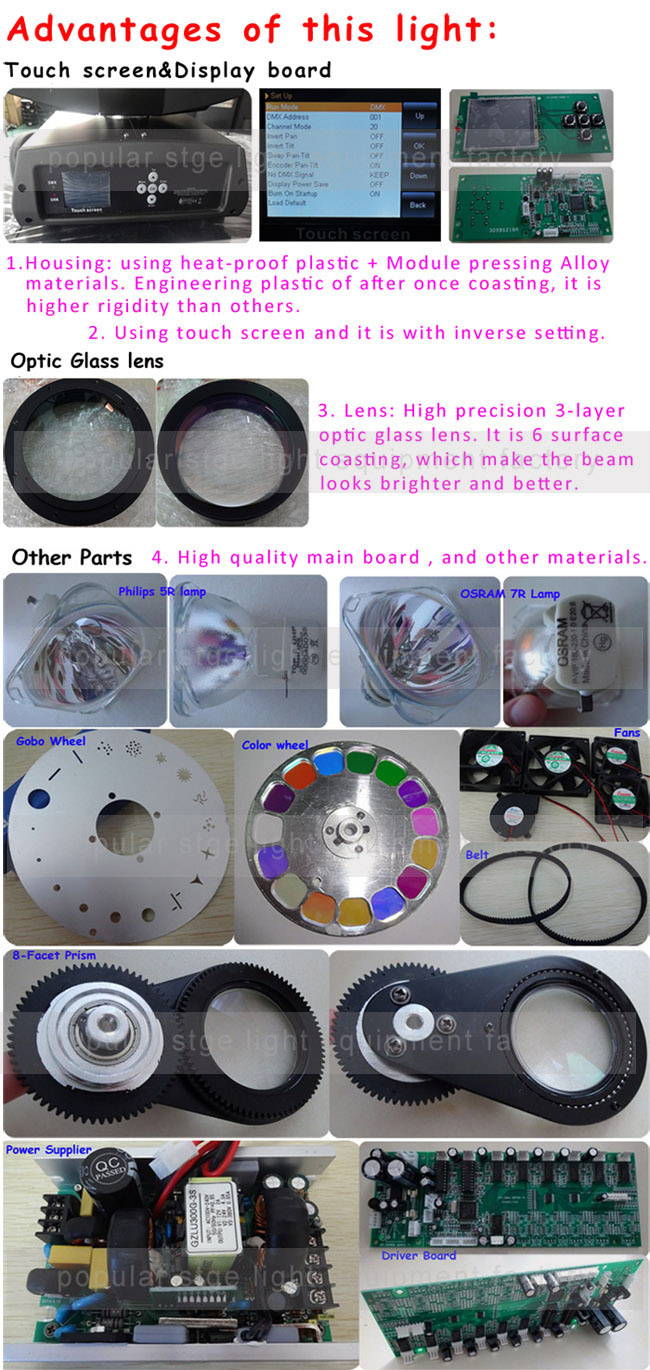

Touch Screen LCD Display: Can be changed 180° Reverse to fit for different Installation position. Auto-program: 8 pre-built programs can be selected Software-upload by optional accessory via DMX line.
Video link: http://v.youku.com/v_show/id_XNTMwMTY4OTYw.html?from=y1.2-1-95.4.1-1.12-1-2-0
Channel chart:
34 DMX Channel Chart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Pan
Pan Fine
Tilt
Tilt Fine
Color
Color Wheel Fine
Cyan
Cyan Fine
Magenta
MagentaFine
Yellow
Yellow Fine
Rotation Gobo
Rotation Gobo Indexing
Rotation Gobo Fine
Fixed Gobo
FixedGobo Index
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
3 Facet Prism
Rotation Prism
Rotating Prism Indexing Fine
Focus
Focus Fine
Zoom
Zoom Fine
shutter
Dimmer
Dimmer Fine
Iris
Iris Fine
Light show
