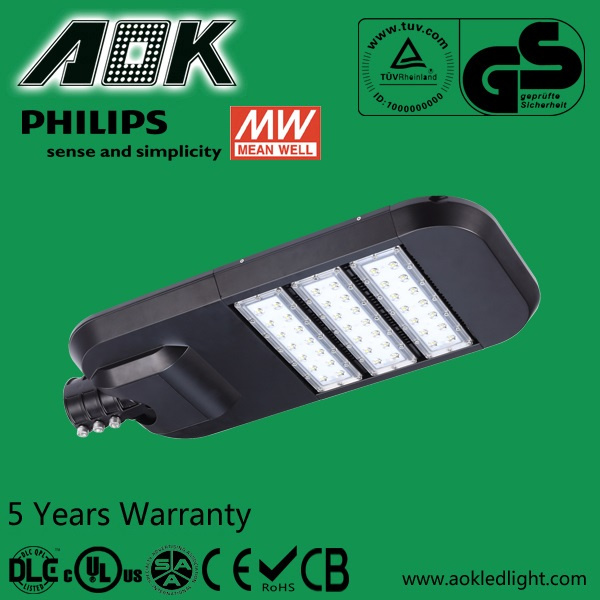

UV DLC UL Approval 160W Street Light LED with TM21 Report 62000 hours Lifespan
Main Parameters: LED Street Light |
LED Chip | Philips Luxeon T |
LED Module Quantity | 1-7 modules |
Operating Voltage | 100-240/277VAC;480VAC |
Power Efficiency | > 92% |
Power Factor | > 0.95 |
Lamp Rated Luminous Efficiency | 105-110lm/W |
Color Rendering Index | Ra>78 |
Color Temperature | 3000K,3500K,4000K,5000K,5700K,6500K |
Light Distribution Curve | Batwing light distribution curve |
Peak Lighting Angle | 150° |
Storage Temperatures | -40°C~50°C |
Working Environment | Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion | < 10% |
LED Life Span | About 62,000 hours |
Wind Index | Force 12 |
Body and Shell Materials | Aluminum alloy |
IP & IK Rating | IP67 & IK10 Street Light LED |
Warranty | 5 Years Street Light LED |
Description: Street Light LED |
AOK high quality adjustable dimming waterproofed Street Light LED is dimmable, adjustable and suitable for any street light project. It has widely power from 40-280W, modular design, fully capable for most of the street lighting situations. With IP67 protection, 5 years warranty and high quality Philips Luxeon T LED chips, we strongly believe our street light is providing excellent performance and reliability to the customers it served. The AOK Street Light LED is a professional light manufacturer, we sincerelly willing to cooperate with every customer who liked our lamps. Please do not hesitate to contact us to accquire more information if you ever interested. Sample test and OEM order is available. |
LED Street Lighting Product Details |
Model | Power | Luminous Flux | Equal to HID | Dimension (mm) | NW | GW |
AOK-40WiL | 40w | 4400lm | 80-100w | 303*151*183 | 3.5kg | 6.3kg |
AOK-80WiL | 80w | 8800lm | 160-200w | 303*232*183 | 5.2kg | 8.1kg |
AOK-120WiL | 120w | 13200lm | 250-300w | 303*311*196 | 6.15kg | 9.3kg |
AOK-160WiL | 160w | 17600lm | 350-400w | 392*303*196 | 7.15kg | 10.5kg |
AOK-200WiL | 200w | 22000lm | 400-500w | 473*303*196 | 8.5kg | 11.8kg |
AOK-240WiL | 240w | 26400lm | 500-600w | 554*303*196 | 9.25kg | 13.5kg |
AOK-280WiL | 280w | 30800lm | 600-800w | 635*303*196 | 10.5kg | 14.25kg |
AOK-160WiL Packing Information |
Packing Type: | 1 unit\carton; |
Packing Dimension | 730*360*180 mm; |
Packing weight | 9.5 kg |
AOK iL series LED Street Light use as Solar LED Street Light
UL DLC TUV SAA multipurpose LED Outdoor Light/LED Stadium Light/LED High Bay Light
DLC UL TUV SAA approval Gas Station Canopy Lighting,LED Canopy,Retrofit LED Canopy Light
AOK LED Light Company Limited
International Department
Contact Person: Shadow
Tel: +8618850444308
Website: www.aokledlight.com
Found in 2002, AOK Industrial Company Limited has been in LED lighting industry for more than ten years, in 2006, we achieve ISO9001: 2000 Certification. In the new decade from 2011, now we are a member of National Semiconductor Lighting Industry Alliance and has been one of the biggest export companies in China mainland.
Our company has covered the area of 30, 000 square meters and has 100 world class automatic LED production lines with equipment investment up to 12 million USD. At present our company has applied 35 National Patents in LED fields, which 27 items have been authorized. With ISO9001: 2000 Quality Management System, now most of our products have gotten CCC, CE, RoHS, GS, UL, cUL, ETL, GOST Certifications.
Moreover, we have undertaken a number of important projects, such as Energy saving projects in Fuzhou City, Carbon Emission Project and Olympic Sport Center Lighting Project in Fujian Province; One special contribution is our National Semiconductor Lighting Project which listed in our Government 12's five years' country development plan.
Creative and Quality are the core of each enterprise. As the leader of LED industry, AOK founded more than 50 people's term for new products' research and development, they develop more than 200 items products each year; Meanwhile, we also founded 30 people's term to keep our quality all reach relative standard and also clients requirement.
What we looking for are: Continually development, supply high value and high quality products to our clients, let our clients benefit from our cooperation. Welcome to contact us, we look forward to our first cooperation!
