Prod Model: |
LS-RSL27 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item Type: |
Downlights |
Working Temperature: |
-40-65 |
Lamp Power: |
27W |
Lumens: |
120lm/W |
Working Lifetime(Hour): |
80000h |
Beam Angle: |
20° |
For Application: |
40° |
Input Voltage(V): |
60° |
Lamp Body Material: |
Metal |
Source Number: |
Single Plug |
Installation: |
Embedded |
Lamp Installation: |
Screw Holder |
Switch Type: |
Touch On/Off Switch |
Warranty: |
5 Years |
Application: |
Home Furnishing |
IP Rating: |
IP65 |
Certification: |
UL |
Color Temperature: |
2800-7000k |
Product Description

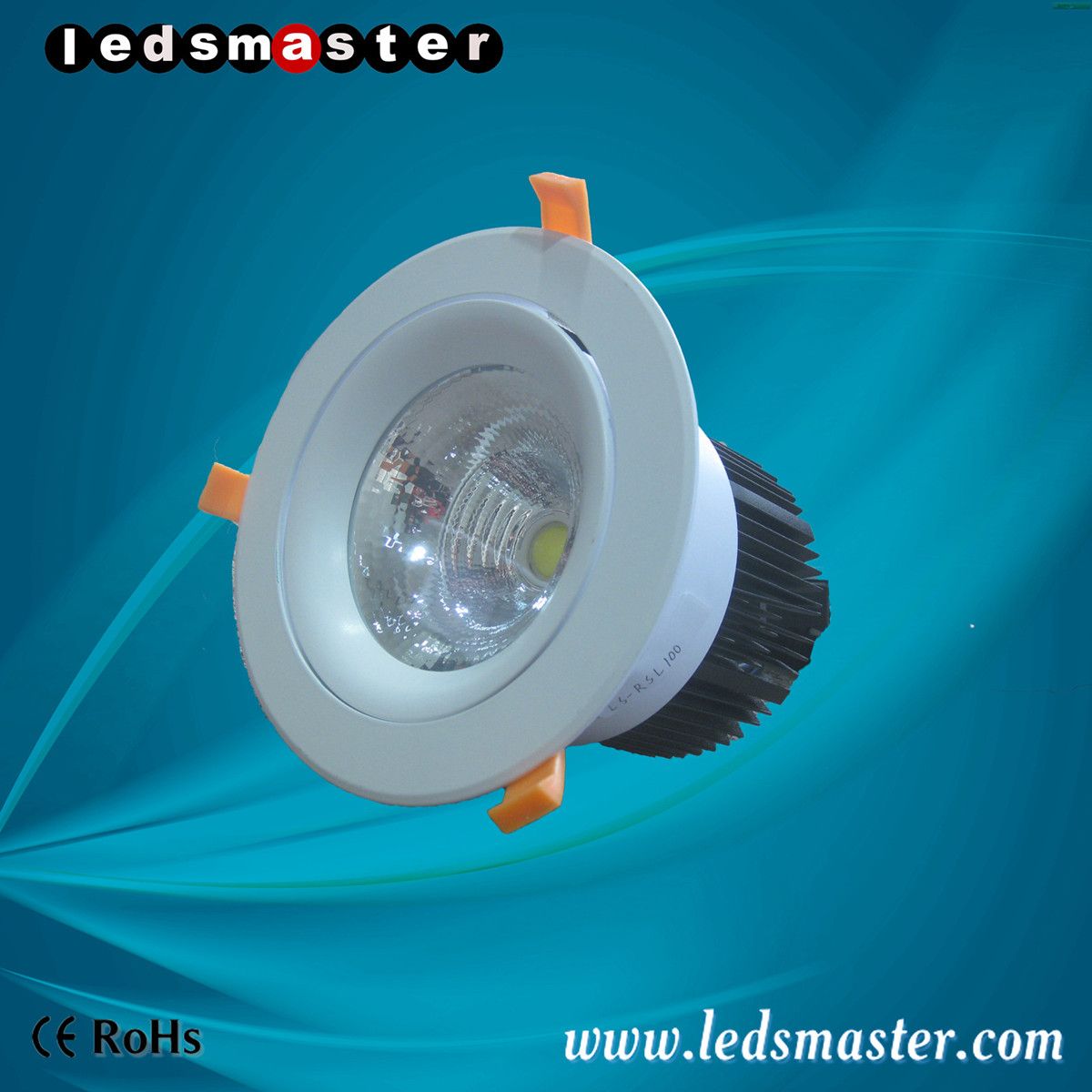

High Stability LED Downlight
Product Description
No. | Model No. | Power | Light efficiency | Lumen (White) | Equal Lumen (White) | Available Angle | Reference Direct Replacement MH | Color Temperature | Light Size | Working Voltage |
|
1 | LS-RSL15 | 15w | 120lm/W | 1800 | 3600 | 20,40,60degree | 30W | 2800-3500K 5000-6000K 6500-7500K | 3.5Inch | 110/220V AC |
2 | LS-RSL27 | 27W | 120lm/W | 3240 | 6480 | 50W | 4Inch | 110/220V AC |
3 | LS-RSL37 | 37W | 120lm/W | 4440 | 8880 | 70W | 5Inch | 110/220V AC |
4 | LS-RSL40 | 40W | 120lm/W | 4800 | 9600 | 80W | 6Inch | 90-295V AC |
5 | LS-RSL50 | 50W | 120lm/W | 6000 | 12000 | 100W | 8Inch | 90-295V AC |
6 | LS-RSL60 | 60W | 120lm/W | 7200 | 14400 | 120W | 8Inch | 90-295V AC |
7 | LS-RSL70 | 70W | 120lm/W | 8400 | 16800 | 140W | 8Inch | 90-295V AC |
8 | LS-RSL80 | 80W | 120lm/W | 9600 | 19200 | 160W | 8Inch | 90-295V AC |
9 | LS-RSL100 | 100W | 120lm/W | 12000 | 24000 | 200W | 8Inch | 90-295V AC |
Installation:
Please pay more attention to the below instructions while installation, in order to avoid any possible Fire
Hazard, Electric Shock or Personal harm.
Instructions:
1. Cut off Electricity before installation.
2. The product only used in DRY environment
3. Please do not block any objects on the lamp (distance scale within 70mm), which will definitely affect
heat emission while lamp's working
4. Please double check before getting electricity on if wiring is100% OK, make sure Voltage for lamp is right and no Short-Circuit.
Wiring:
The Lamp can be directly connected to City Electric Supply and there'll be detailed User's Manual and
Wiring Diagram.
Our Services
Features
Brightest Street Light in the world!
High Quality High Stability Led lamp
2-4 times brighter than conventional light
3rd Generation Direct Heat Path Technology, 2-5 times better stability
Anti-Glare System, suitable for any occasions
IP66, underwater use support
5 Years Warranty!
Company Information
About us:
With rich and good experience in the LED lighting field, we have successfully acquire more market shares in around the world. As a professional manufacturer and distributor, we have received the great reputation for our reliable professional and classic services, especially for the progress we made in innovative products in LED illumination field. We have dedicated ourself to the world's more beautiful decorative lighting products. At the same time, we would offer the most competitive price to our customer so as to provide maximum value.
We always hold the below principles, which will enable us to make it better.
The most competitive price:
The consolidate friendship and long-term business relationship with every customers is always our target, and we shall constantly dedicate ourbest efforts to provide the maximal value. With us, the most competitive price is provided while good quality is remained.
Q1: What is the Warranty for the lamps?
A1: 5 years warranty.If any quality problems on our side occured in this period ,we will affort the shipping cost and replacement.
Q2: What is colour temperature?
A2: ledsmaster offer lamps in warm, natural, cool white with colour temperatures measured in Kelvin Color temperature 2800-7500k
Q3: What is CRI?
A3: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For our light CRI can be reached at 95(custermize)
Q4: Will your LED light work on a dimmer switch?
A4: We have the dimmer light,but the dimmer light is not the same as the normal light, so please confirm the type of dimmer before purchase.
Q5: What is the AC Voltage tolerance for our LED light?
A5: Their AC voltage tolerance is +/- 10%.
Q6: Do your LED bulbs emit UV light?
A6: No. But you should never point an LED light into your eyes. The light is very bright and could cause damage.
Q7:Is there cheap shipping cost to import out and what is the payment terms for ledsmaster?
A7: For small order,express will be best.And for bulk order, shippment is best but take much time. payment terms: T/T; West union; paypal.
Q8:Can we get support if we have our own market position?
A8: Please inform us your detailed mind on your market demand,we can make the best solution for you. and customerized product can be done.
