| Prod Model: |

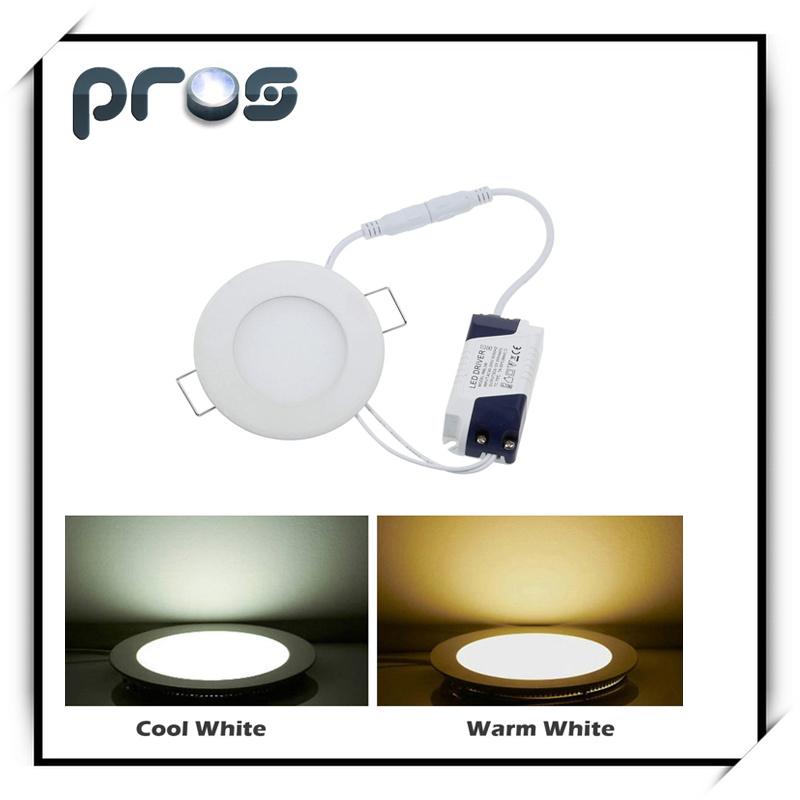

PL-P-S3W led panel light |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Panel Light Size: |
Dia.90mmx20mm |
| Input Voltage: |
with Outside Power Supply |
| Watt Consumption: |
3W |
| LED Panel Light Lumens: |
285lm |
| LED Panel Light Colors: |
White, Warm White |
| Application: |
Commercial Lighting |
| Certificate: |
CE, RoHS |
| Payment Term: |
T/T in Advance |
| Lead Time: |
3-5working Days |
| LED Light Type: |
Square/Round/Rectangle Panel Lighting/Lights/Lamp |
| Light Source: |
LED |
| Appearance: |
Round |
| Type: |
Ceiling |
| Emitting Color: |
White |
| Certification: |
RoHS |
| Voltage: |
85V-265V |
| Dimmable: |
Without Dimmable |
| Housing Material: |
Aluminum |
| Beam Angle: |
120d |
Product Description
LED light panel, LED ceiling lamp, LED ceiling light light
Advantage:
1. Easy installation, can be hanged on the wall, the ceiling or keep flat on the ceiling.
2. No radiation, no flicker, no interference;
3. Thin thickness, 20mm thickness
4. Certificates: CE/RoHS/FCC/TUV.
5. Elegant appearance, soft lighting and decoration efficiency;
6. Energy saving: 50% more energy saving than normal fluorescent light;
7. Special heat output design, life span up to 50, 000 hours;
LED Panel Light Feature:
1. Input voltage 85-265VAC with outside Power supply
2. Many size: Dia. 90mmx20mm, Dia. 110mmx20mm, Dia. 120mmx20mm, Dia. 150mmx20mm, Dia. 170mmx20mm, Dia. 195mmx20mm, Dia. 225mmx20mm
LED Panel Light Application:
Commercial Lighting
Office Lighting
Warehouse Lighting
Supermarket Lighting
|
Itemno. |
Input voltage |
Size |
Cutout size |
Power consumption |
LED quantity |
LED chip |
|
PL-P-R3W-W |
AC 85-265V |
Dia.85mmx85mm |
Dia.70mm |
3W |
15pcs |
SMD2835 |
|
PL-P-R4W-W |
AC 85-265V |
Dia.110mmx110mm |
Dia.90mm |
4W |
20pcs |
SMD2835 |
|
PL-P-R6W-W |
AC 85-265V |
Dia.120mmx120mm |
Dia.100mm |
6W |
30pcs |
SMD2835 |
|
PL-P-R9W-W |
AC 85-265V |
Dia.150mmx150mm |
Dia.130mm |
9W |
45pcs |
SMD2835 |
|
PL-P-R12W-W |
AC 85-265V |
Dia.170mmx170mm |
Dia.150mm |
12W |
60pcs |
SMD2835 |
|
PL-P-R15W-W |
AC 85-265V |
Dia.195mmx20mm |
Dia.175mm |
15W |
75pcs |
SMD2835 |
|
PL-P-R18W-W |
AC 85-265V |
Dia.225mmx20mm |
Dia.200mm |
18W |
90pcs |
SMD2835 |
Pros Light is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.
Our product range:
1. LED Street Light
2. LED Bulb & Spotlight
3. LED Downlight
4. LED Panel
5. LED WallWasher & Floodlights
6. LED Explosion proof Light
7. LED High bay light
8. LED Tube T8
9. OEM & ODM Projects
