Lamp:
Original Osram Lamp
Certificate:
CE, RoHS
Function:
Beam Spot Wash and Zoom
Colour:
13 Colours + Blank
Gobo:
14 Gobos + Blank
Dimmer:
0-100% Dimmer
Application:
Stage,Disco, DJ, Night Club, Bar, Studio, Concert
Light Source:
Gas Discharge Bulb
Material:
Aluminum Alloy
Emitting Color:
Changeable
Control Channel:
24CH
Strobe:
Adjustable Speed Strobe
Control Mode:
Dmx Signal Control
IP Rating:
IP20
Certification:
RoHS
Voltage:
AC90-240V
Product Description

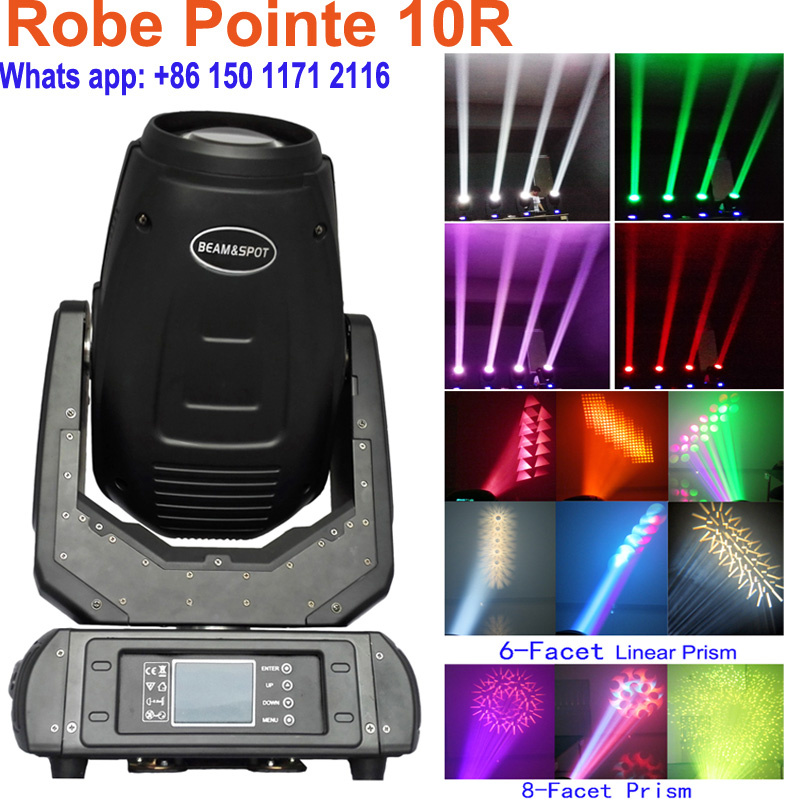

10R 280W Moving Head light
Beam + Spot + Wash 3 in 1 with linear zooming Original Osram Sirus Lamp or YODN Lamp
Features:
Beam, Spot and Wash 3 in 1 Bent design for colour wheel which decrease the lamp temperature and prolong lifetime With Voltage stabilizer inside, can work with unstable input volt. Colour touch screen, 180° reversed display 3-Pin XLR connector input/output; 5-Pin XLR connector input/output 3-phase motor Double prism and double focus
Light source: Power consumption: 470W Electronic ballast Lighting source: Original Osram 280W Input Volt: 100~240V/50-60Hz Luminous Flux: 150000LM at 10M 90, 000LM at 20M distance Colour Temperature: 8000K Lighting Effect:
Colour Wheel: 13 colours + blank Gobo: 14 gobos + blank, 9 ratating gobos Control: DMX512, Master/Slave, Sound and Auto Channel: 16/24 Channel Prism: 6-facet T prism and 8-facet prism Dimming: 0-100% linear dimming Strobe: double strobe (speed ajustable) Zoom angle: 2.5 - 10 ° Spot angle: 5-20° Wash Angle: 2.8-38°linear zooming Foucs: linear focus Pan scan: 540°(16bit) electric correction Tilt scan: 270°(16bit) electric correction Lens: High precsion optical lens Wash effect: adjustable wash effect angle
Packing: Fixutre size: 380×320×595MM Net. W: 15.5KG G. W (Paper CTN): 16.5kgs G. W(Flight case/1PC): 35kgs G. W(Flight case/2PCS): 60kgs Paper CTN Size: 465*450*685MM Flight case/1PC: 460*380*71MM Flight case/2PCS: 850*510*740MM
Accessaries: quick lock 2pcs clamp/hook: 2pcs safety rope: 1pc signal wire: 1pc power wire: 1pc user manual 1pc Many different power plugs for different countries and resigons Welcome to contact us at sandy Hou www.xiangjunlight.com
Beam:
Lighting Effects:
production:
DMX Channel
Standard
Simple mode
DMX
Function
1
1
0-255
X-axis0-540°
2
*
0-255
X-axisfine tuning
3
2
0-255
Y-axis 0-270°
4
*
0-255
Y-axis fine tuning
5
3
0-255
X Y-axis speed governing
6
4
0-19
blank
20-24
enervy saving mode(230W)
25-129
blank
130-139
on
140-149
X/Y axis reset
150-159
blank
160-169
Effect reset
170-199
blank
200-209
Fixture reset
210-229
reserved
230-239
off
240-255
blank
7
5
Colour wheel
0-8
white
917
deep red
18-26
deep blue
27-35
yellow
36-44
green
45-53
magenta
54-62
sky blue
63-71
red
72-80
deep green
81-89
amber
90-98
blue
99-107
orange
108-116
cool colour
117-127
Fluorescent blue + white
128-129
white
130-134
deep red
135-138
deep blue
139-143
yellow
144-147
green
148-152
magenta
153-157
sky blue
158-161
red
162-166
deep green
167-171
amber
172-176
blue
177-180
orange
181-185
cool colour
186-189
Fluorescent blue
190-220
from fast to slow (water flo)
221-250
from slow to fast
251-255
Auto random colour selection
8
*
Colour wheel fine position
9
6
Effect speed
10
7
stactic gobo
0-3
blank
49
gobo1
1015
gobo2
16-21
gobo3
22-27
gobo4
28-33
gobo5
34-39
gobo6
40-45
gobo7
46-51
gobo8
52-57
gobo9
58-63
gobo10
64-69
Penlight1
70-75
Penlight2
76-87
Penlight3
Gobo shaking from slow to fast
88-95
gobo1
96-103
gobo2
104-111
gobo3
112-119
gobo4
120-127
gobo5
128-135
gobo6
136-143
gobo7
144-151
gobo8
152-159
gobo9
160-167
gobo10
168-175
Penlight1
176-183
Penlight2
184-199
Penlight3
200-255
gobo from slow to fast
11
8
Ratating gobo
0-4
blank
57
gobo1
810
gobo2
1113
gobo3
14-16
gobo4
17-19
gobo5
20-22
gobo6
23-25
gobo7
26-28
gobo8
29-31
gobo9
gobo Anti-clockwise rotation
32-34
gobo1
35-37
gobo2
38-40
gobo3
41-43
gobo4
44-46
gobo5
47-49
gobo6
50-52
gobo7
53-55
gobo8
56-59
gobo9
gobo shaking from slow to fast
60-67
gobo1
68-75
gobo2
76-83
gobo3
84-91
gobo4
92-99
gobo5
100-107
gobo6
108-115
gobo7
116-123
gobo8
124-129
gobo9
gobo shaking from fast to slow
130-137
gobo1
138-145
gobo2
146-153
gobo3
154-161
gobo4
162-169
gobo5
170-177
gobo6
178-185
gobo7
186-193
gobo8
194-199
gobo9
200-221
from fast to slow(water flow)
222-223
Stop
224-243
from slow to fast(water flow)
244-255
water flow randomly
12
9
gobo auto-rotate
0-127
index
128-177
anti-clockwise from slow to fast
178-203
blackout
204-255
anti-clockwise from fast to slow
13
*
0-255
Gobo rotate fine
14
10
Prism
0-19
blank
20-75
6-facet prism
76-255
8-facet prism
15
11
prism auto-rotate
0-49
Index
50-75
6-facet prism rotate
76-104
Blank
105-127
8-facet prism rotate
128-191
clockwise from fast to slow
192-193
Blank
194-255
anti-clockwise from slow to fast
16
12
Frost
0-64
blank
65-255
Linear frost
17
13
zoom
0-255
Linear zoom
18
*
0-255
zooming fine
19
14
0-255
Focus
20
*
0-255
foucs fine
21
*
0-255
Autofocus
22
15
strobe
0-31
strobe close
32-63
strobe
64-95
strobe from slow to fast
96-127
strobe
128-143
from fast to slow slow off/fast on
144-159
from slow to fast fast off/slow on
160-191
strobe
192-223
random strobe/from slow to fast
224-255
strobe
23
16
dimming
0-255
Linear dimming(0-100%)
24
*
Dimmer fine
