| Prod Model: |
JJ-DL10W-L24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Factor: |
>0.9 |
| Lighting Efficiency: |
80lm |
| Voltage: |
DC12V or AC85V-265V or 110V or 220V |
| Size (Mm): |
91X 55, Cut out:81 |
| Light Source: |
LED |
| Installation: |
Embedded |
| Material: |
Aluminum |
| Application: |
Engineering |
| Source Number: |
Single Plug |
| Lamp Installation: |
Flushbonading |
Product Description

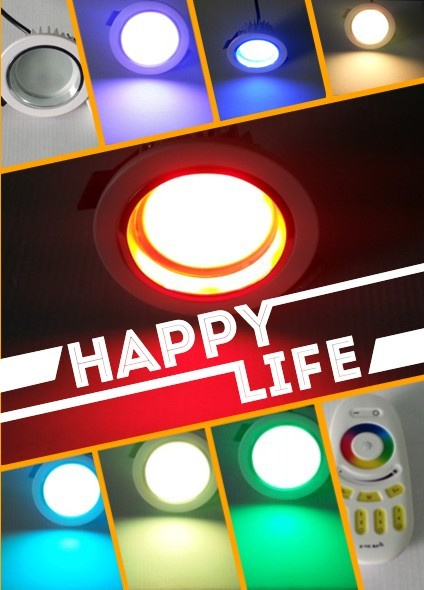

RGBW LED DOWN LIGHT / LED Down Light / Down Light
Model. No. JJ-DL10W-L24
Rated Power: 10W
Voltage: DC12V or AC85V-265V or 110V or 220V
Material: Aluminum with white color
Color Temperature: Warm white/nature white / cool white
Size (mm): 91*55, cut out: 81
PF>0.90; CRI>80
Lifespan: ≥ 50000H
Warranty: 3 Years
LED Type: SMD5630
LED Quantity: 24PCS
Lighting Efficiency: 90-100Lm/W
Beam angle: 160°
Certification: CE, RoHS, EMC, LVD, SGS
Lead Time: 5-7 working days
Payment: Western Union or T/T
Delivery: Express, Sea or Air
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Oceania, Eastern Asia, Western Europe
Product Description
Feature of 10W LED down light / ceiling light
LED Bulb light uses big power LED chips as its light source and its surface adopts high-quality aluminum with oxidation treatment.
Wide range of operating voltage, long life, low-light failure, easy assembly.
High luminous efficiency, energy saving.
Compatible with the traditional light bulb, directly replacing traditional light bulb, energy saving lamps.
A variety of light colors to meet the requirements of different applications.
Applications of Energy saving LED down / ceiling light
Hotels, guest houses, halls, clubs, villas and other places for the Lighting and decorative home
--Cautions--:
1. Switch off the power before replacing the lamp
2. Keep away from direct sunshine and high temperature
3. Indoor use only
4. If any doubt about the installation or use of this product, consult a competent electrician.
Application: Decoration of home, Entertainment Lighting project, Meeting room, Hotel, Restaurant, Bank hall, Supermarket, Exclusive shop, Office, Business building, Museum, Exhibition center, Underground garage, Industrial factory, Flow line production, Theatre, Gallery, etc.
|
Model Number |
Color Temperature |
Power Consumption |
Input Voltage |
Dimension mm |
LED source |
Lumen Output |
Cover |
PF |
|
External Diameter |
|
RGBW LED Ceiling Light, Red(630nm)/Green(520nm)/Blue(460nm)/White(6000-6500K) (RGBW Dimmable) |
|
JJ-DL3X4W-L3-RGBW |
RGBW |
3X4W |
DC12V |
91mm |
3Pcs Epistar 4W LEDs |
/ |
Frosted |
>0.90 |
|
JJ-DL9X4W-L9-RGBW |
RGBW |
9X4W |
DC12V |
162 mm |
9Pcs Epistar 4W LEDs |
/ |
Frosted |
>0.90 |
