Name:
Lm80 LED Down Light
LED:
Taiwan Imported SMD 5630
Lifespan:
30,000 Hours
CRI:
80
Light Source:
LED
Source Number:
Double Plug
Installation:
Embedded
Lamp Installation:
Screw Holder
Application:
Home Furnishing
Material:
Die-Cast
Product Description

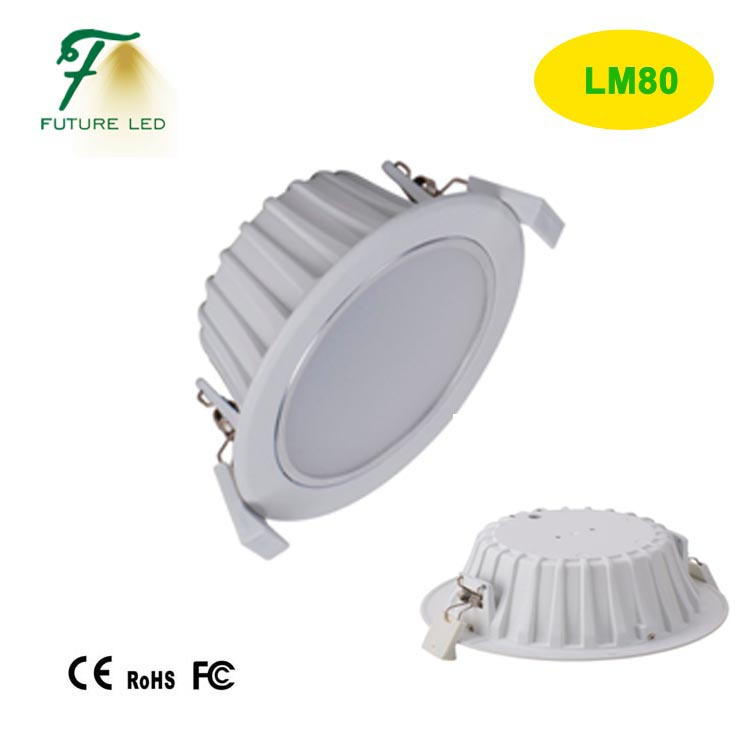

die casting led lm80 smd down light
1) High brightness, high efficiency, energy-saving, low electricity consumption. 2) Built-in reflector, high light output and uniformly light 3) Integrated heat dispersion structure, low lumens depreciation and long lifespan 4) Built-in constant current driver, universal available, Easy to install. 5) Aluminium alloy frame with high-thermal conductivity, simple and nice. 6) Unique patented heat sinking design 7) Vibration resistant Easy to transport and install. Specification:
Model
Power (W)
Voltage (V)
Beam Angle (°)
Color temperature (K)
Lumens(LM)
CRI (Ra)
Dimension (mm)
Cut-out Size(mm)
Light Source
Material
FT-DL1501-5
5W
AC85-265V
120°
2700-6500K
425LM ±5%
>80Ra
φ95*53 mm
φ78
10PCS LM80 5630 LEDs
Die-cast
FT-DL1501-7
7W
AC85-265V
120°
2700-6500K
600LM ±5%
>80Ra
φ115*55 mm
φ100
14PCS LM80 5630 LEDs
Die-cast
FT-DL1501-12
12W
AC85-265V
120°
2700-6500K
1000LM ±5%
>80Ra
φ140*60 mm
φ120
24PCS LM80 5630 LEDs
Die-cast
FT-DL1501-15
15W
AC85-265V
120°
2700-6500K
1300LM ±5%
>80Ra
φ170*65 mm
φ150
30PCS LM80 5630 LEDs
Die-cast
FT-DL1501-18
18W
AC85-265V
120°
2700-6500K
1500LM ±5%
>80Ra
φ190*65 mm
φ170
36PCS LM80 5630 LEDs
Die-cast
FT-DL1501-20
24W
AC85-265V
120°
2700-6500K
1700LM ±5%
>80Ra
φ230*50 mm
φ200
40PCS LM80 5630 LEDs
Die-cast
FT-DL1501-30
30W
AC85-265V
120°
2700-6500K
2500LM ±5%
>80Ra
φ230*50 mm
φ200
60PCS LM80 5630 LEDs
Die-cast
Product
Specifications:
Model
Size
Hole Size
Voltage
Lumen
CRI
CCT(K)
LED
Power
FT-DL1501-7
115*50MM
100MM
AC85-265V
600
RA>80
2700~6500
5630
7W
FT-DL1501-12
140*60MM
120MM
AC85-265V
1000
RA>80
2700~6500
5630
12W
FT-DL1501-15
170*65MM
150MM
AC85-265V
1300
RA>80
2700~6500
5630
15W
FT-DL1501-18
190*65MM
170MM
AC85-265V
1500
RA>80
2700~6500
5630
18W
FT-DL1501-20
230*55MM
200MM
AC85-265V
1700
RA>80
2700~6500
5630
20W
FT-DL1501-24
230*55MM
200MM
AC85-265V
2000
RA>80
2700~6500
5630
24W
FT-DL1501-30
230*55MM
200MM
AC85-265V
2500
RA>80
2700~6500
5630
30W

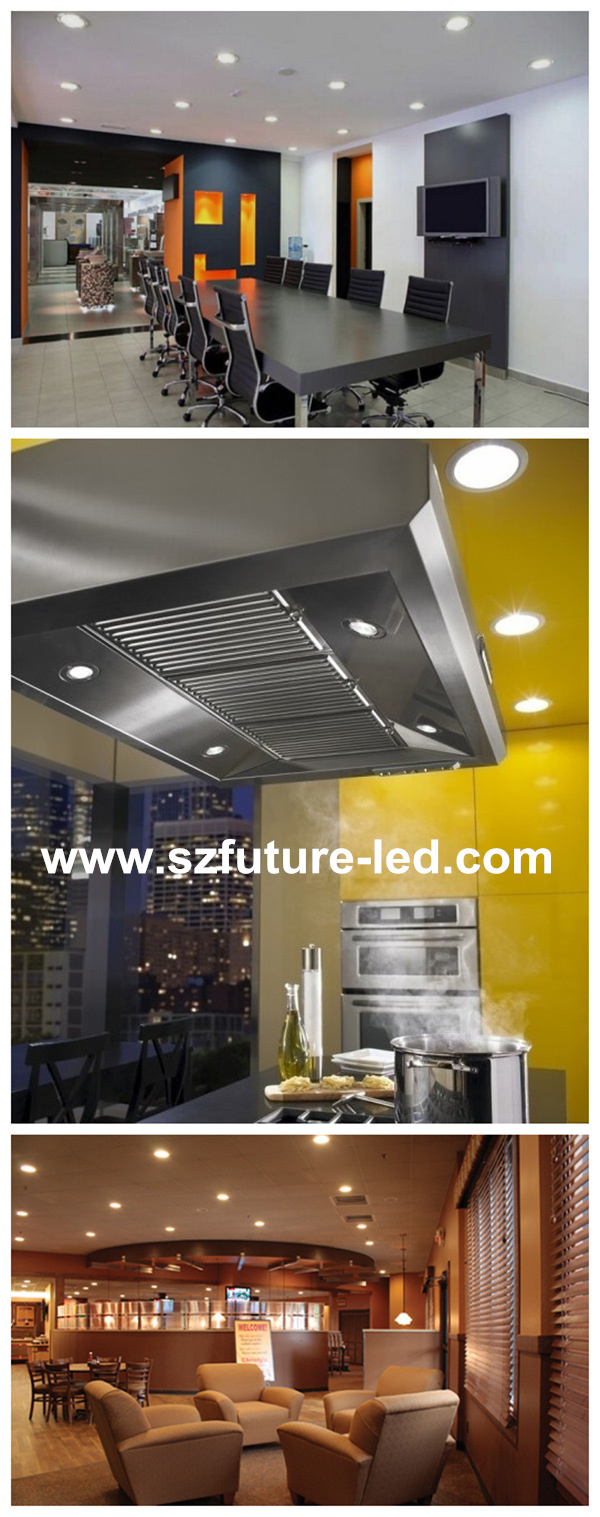

Application
1 ) Replacement to incandescent, halogen, energy saving lamp and metal halide lamp 2 ) meeting rooms/school classrooms/office buildings 3 ) hospitals/factories/, hotels 4 ) supermarkets/home lighting 5 ) other commercial and residential place
Shenzhen Feiyingte Lighting Co., Ltd., established on 2010, is a manufacturer of production, research and development, sales and service in one of the professional LED lighting products. In response to the national "energy saving" the call, the company is committed to energy-efficient lighting products R & D and innovation, combined with intelligent, has introduced a "more energy, more environmentally friendly, more green" lighting products, the main products include LED T8, T5 fluorescent lamps tube series, LED bulbs, LED Ceiling Lights, LED spotlight series, LED street light series, LED corn light series, LED mining lamp, LED ceiling lamp series, LED intelligent lighting and other products. Innovative products design aesthetics, advanced technology, high quality, using advanced COSTECH packaging technology, a breakthrough LED thermal bottleneck, increased luminous efficiency, the product has many features, such as high efficiency, high CRI, low energy consumption, Longer life, no radiation.
Our products got the cercificate of CE, RoHS, 3C, and produced based on ISO9001, Shenzhen Future Lighting Co., Ltd have a enormous basement on research and development and production, owned abundant professional knowledge and management experience, got a good reputation on LED industry.
We have a good and strong team who can offer R&D service, can solve your problems in time, can grow with you and win the markets for you, our main mission in this job is to make a win-win contract and a long term business relationship with our clients. Good Quality, exquisite & Sound Services and also competitive prices are our always object in all the business.
We are located in a place beside the main road to Shenzhen International Airport and the center of city, takes only 35 minutes by car from our company to the airport, easy and convenient for you to visit our factory.
Shenzhen Future Lighting Co., Ltd, looking forward to your visit.

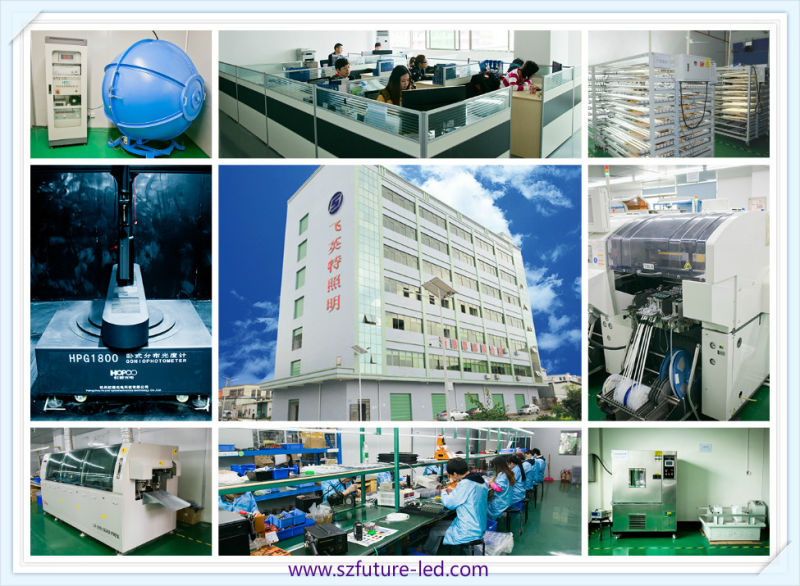

Our factory---Shenzhen Futureled lighting Co., Ltd.
