Prod Model: |
UB-300 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
368*250*625mm |
Weight: |
18.5kg |
Channel: |
20 Chs / 23 Chs |
Power: |
450W Max |
Channels: |
20/23 CH |
Light: |
300W LED White Lamp |
Lifespan: |
50000 Hours |
Color Temperature: |
7000-7500k |
Zoom: |
Linear Zooming Angle 11°-33° |
Control: |
DMX 512 |
Light Source: |
LED |
Material: |
Aluminum |
Emitting Color: |
Changeable |
Strobe: |
Adjustable Speed Strobe |
Control Mode: |
Dmx Signal Control |
IP Rating: |
IP20 |
Certification: |
UL |
Control Channel: |
20/23CH |
Voltage: |
100-240V |
Product Description

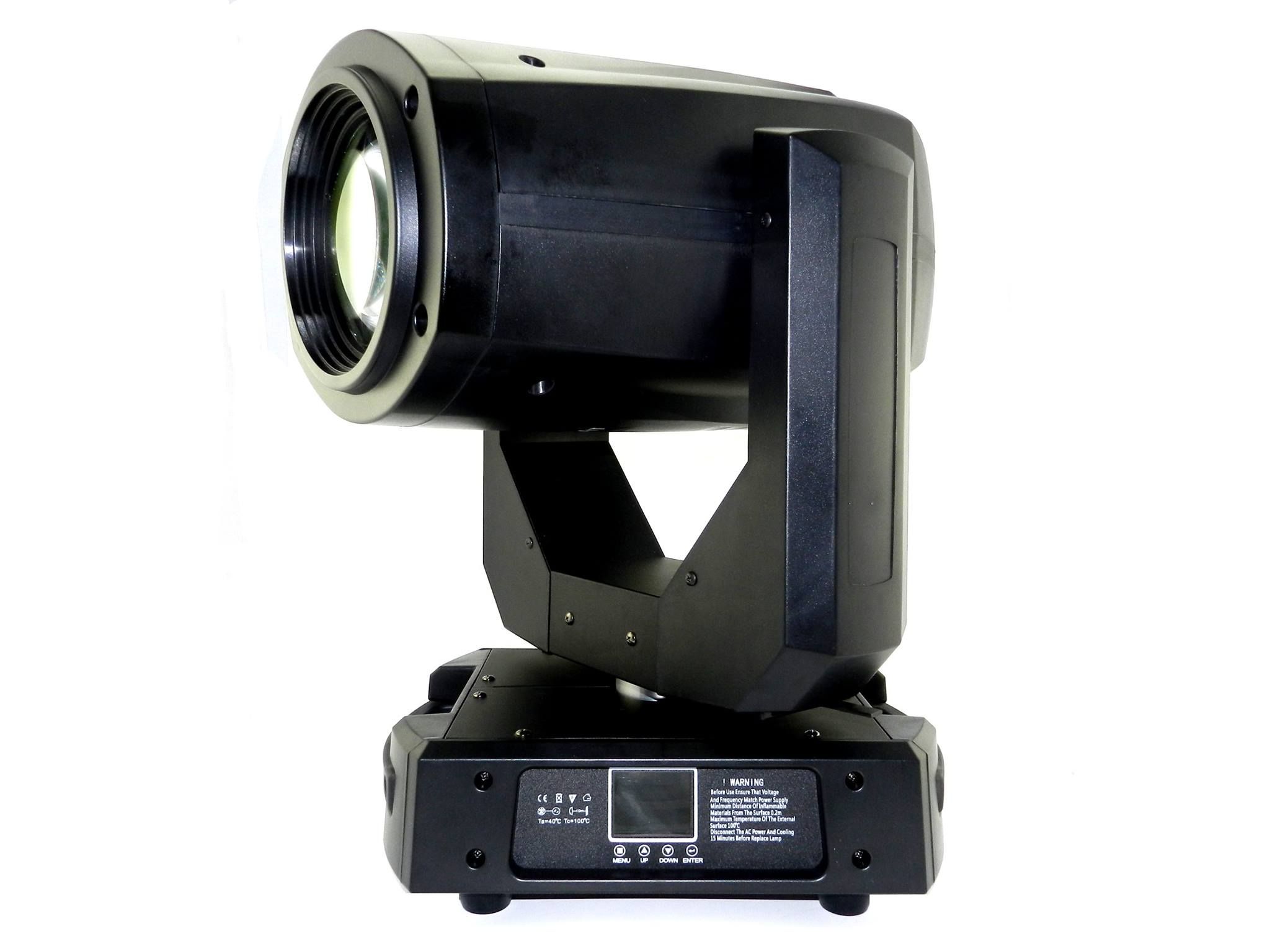

Professional Moving Head Beam 300W Light
1. 300W LED white lamp with 50000 Hours
2. Linear zooming angle 11°-33° zoom
3. 3 fase mute motors
Specification
Power | 450W max |
Voltage | AC100~240V 50/60Hz |
Light Source | 300W LED white lamp |
Lifespan | 50000 Hours |
Color Temperature | 7000-7500K |
Color Wheel | One color plate, 7 colors+ open, bidirectionally rainbow effect |
Gobo Wheel | One fixed gobo plate, 9 gobos, with shaking and flowing effect |
One rotating gobo wheel, 7 interchangeable gobos, with gobo indexing function. Shaking and flowing effect. |
Prism | One 3-facet prism. Bidirectionally rotating effect |
Frost | One frost plate |
Iris | 100-5% linear iris adjustment, pulse zooming function |
Zoom | Linear zooming angle 11°-33° |
Electric strobe | 0.5-20/sec, pulse and random strobe effect |
Dimmer | 0-100% linear dimmer, 3 dimmer curve optional |
Movement | Pan: 540°, Tilt: 270° speed adjustable. Auto-correction function |
Control | DMX 512 |
Channels | 20/23 Ch |
Other function | LCD display, English/Chinese optional. |
Housing | metal and plastic |
Protection grade | IP20 |
Feature
1. 3 fase mute motors ( total 15pcs moters)
2) 300W LED white lamp for 50000 hours
3.Safety:
1) we have professional machine to text them before delivery,
such as withstand voltage test(1500v and 5ma to test)
Insulation resistance test
Grounding resistance test
2) Anti-interference measures
3) 3 pin or 5 pin XLR all gilded (No oxidation and ensure good connection and sgnal)
4) waterproof switch and rubber fireproof shell
