Cabinet Material:
Steel or Aluminum
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Pixel Pitch:
16mm
Display Function:
Video Display
Scanning Mode:
Static Scan
Certification:
CCC
Pixel Density:
3906pixels/M2
Average Power Consumption:
440W/M2
Product Description
Specifications
P16 led screen display
1.CE&RoHS certificate
2.High Pixels and high quality
3.High resolution
4.Warranty:2 years

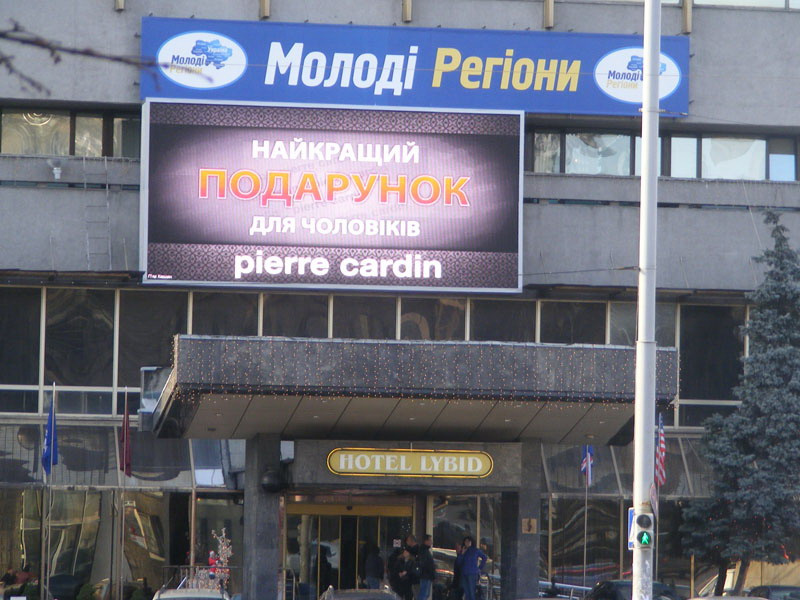

P16 full color big outdoor led display screen
Specifications
Pixel pitch 16mm LED screen
Waterproof for outdoor use
2 years warranty
P16 outdoor full-color high-contrast LED display
Item
Details
Parameters
Physical
16mm
Pixel
Pixel Configuration
1R1G1B
Chip
Wave
Brightness
Packaging
R
Epistar
625nm
1200mcd
Thru-hole346
G
Silan
520nm
2400mcd
Thru-hole346
B
Silan
470nm
600mcd
Thru-hole346
Module
Module resolution
16*16 pixels
Module size
256*256mm
Cabinet
Physical resolution
64*48 pixels
Cabinet Size
1024*768mm
Phisical Density
3072 pixels/cabinet
Module quantity
24pcs=4(w)*3(h)
Material
steel or aluminum
Weight
50kg or 42kg. Approx
Power supply(5V40A) Quantity
5pcs
Average power consumption
360W/cabinet
Max power consumption
900W/cabinet
Electricity Parameter
Brightness
7500nits
Brightness adjusted
100 grade by software or by Auto-optic induced
color processing
8 bits
Display color
16M
Color temperature(k)
7200k
Physical density
3906 pixels/m ²
Whole display flatness
≤1.2mm Juncture
Best view distance
9-65m
Best viewing angle
v≥120° H≥50°
Storage temperature
-40°C-+60°C
Working temerature
-30°C-+60°C
Driving Method
Constant driving current Scan: static
Refresh frequency
>300Hz
Frame rate
75Hz
Humidity(RH)
10%-90%
protection grade
Front IP65, Rear IP54 if not specified
Wording voltage
DC 5V
Power supply
AV 110V ± 10% /220V± 10%
Average power consumption
440W/ m²
Max power consumption
1100W/ m²
MTBF
10,000 hours
Screen lifetime
100,000 hours
Control System
Control System
Linsn
Signal Interface
DVI
Communication distance
CAT 5 cable:≤100m Fiber cable:≥ 500m
Signal transfer mode
dot to dot synchronized with computer monitor
About Hivision
Guilin Hivision Technology Co., Ltd. Was founded in 1994, starting as a spin-off of a Bank Database System with LED display project at Computer Science department of Guilin Electronic Engineering University. Through the years, Hivision has grown from a small startup to a full-fledge LED sign and light manufacturer.
Hivision is an ISO9001 certified LED manufacturer with extensive in-house R&D capabilities.
Why choose Hivisi?
In-house LED package ability
We complete the entire LED manufacturing process in-house. Our fully automated LED production process includes from die and wire bonding to package, populating, wave soldering and so on.
Three-step QC process with 1st class inspection equipments
Our strict QC process involves 3-step:
1. Incoming Quality Assurance -BOM
2. Inspection Process Quality Control -Producing
3. Final Quality Assurance - Finished product
Throughout these process, we conduct brightness, white balance, vibration and turning-in tests starting with modules, then panels and completed displays. Once finished, we perform high-pressure water resistance assessments to conform to IP65 standards.
Lastly, we assemble the LED cabinets for video aging and on-site simulations, as well as aesthetic inspections on cabinets and internal components. And prior to shipment, all spare parts are evaluated one last time.
Backed by heavy investment and a strong R&D team composed of 20 professionals with average ten years' experience covering software, firmware, hardware, and mechanical engineering, we are able to provide to you customized need.
Aftersales service
When you receive your shipment, you will find an array of materials to assist you with installation and operation. Documentation and user manuals, as well as software will provide you with all the information that you need to get your LED displays up and running.
Technical support
Free training for operation, maintenance and trouble shooting before the shipment in factory
Life-long free Technical support through Skype and Teamviewer (remote operating your computer).
We strive to understand, inspire and enable our customers and partners to turn their large image dreams into results with known outcomes. We are keeping the aim to add value, through our industry leading competence, with a complete range of high impact screens for permanent installations as well as the rental and staging markets. If you are looking for a reliable partner to realize your project, Hivisi is the right man for the job.
