| Prod Model: |
p5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lifespan: |
100,000 Hours |
| Warranty: |
3 Years |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/16 Scan |
| Application: |
Shopping Guide |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
5mm |
| Certification: |
CCC |
| IP Rating: |
IP65 |
| Pixel Density: |
16,0000 Dots/M&Sup2 |
| System Operating Platform: |
Winxp Win98,Win7 |
Product Description

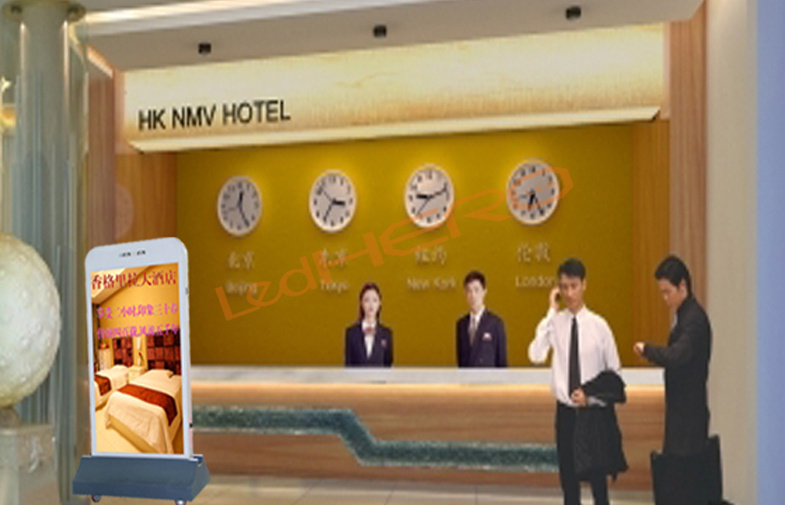

PH 5mm indoor led display used in hotel
Specifications
1. large viewing angle
2. Light weight
3, CE & ROHS Certificates
4.long lifespan
Part
No. Item Luminous Intensity Viewing Angle Wavelength Test Condition
1 Red Lamp 165-237 mcd 140°/140° 620~625nm 25°, 20mA
2 Green Lamp 467-672 mcd 140°/140° 522~528nm 25°, 15mA
3 Blue Lamp 80-115 mcd 140°/140° 472~478nm 25°, 10mA
LED Module Parameters
1Pixel Pitch 5 mm
2Pixel Encapsulation SMD2121
3Pixel Configuration 1R1G1B
4Module Size 192mm*96mm
5Module Resolution 64*32=2048 Dots
6Driving Method 1/16 Scan, Constant Current
7Driving IC MBI5024
LED Cabinet Parameters
1Cabinet Size ( L*H*D)768mm*672mm
2Cabinet Resolution 284*224=63,616
3Module Quantity each Cabinet28
4MAX Power Consumption 800 w
5Cabinet Material Aluminum
6Cabinet Weight 25Kg/pcs
Screen Parameters
No.Genaral Details
1Screen Area 3.072M*2.016M=6.2sq.m
2Screen Resolution 640*480=307,200
3Cabinet Quantity 4*3=12
No.Optical Details
1Density 111,111 dots/sq.m
2Brightness 1800 nits
3Optimum View Distance >2 m
4Gray Scale 16 bit
5Display Color 281 trillions(synchronized)
No.Power Supply
1Operation Power 110v~220v±10%
2Average Power Consumption 300w/
No.Control System
1Control Mode Synchronized
2Refresh Frequency >800HZ
3Fram Frequency >60HZ
4Surport Signal Input RF, S-video, RGBHV, YUV etc.
5Control Distance UTP140m, Single Mode Fiber 15km
6Brightness Adjustment 65536levels per color (autamatically)
No.Reliability
1Operating Temperature -30°C to 60°C
2Operating Humidity 10%~90%
3Life Span (50% Brightness)> 100,000hrs
4MTBF >10,000hrs
5Out of Control Pixel Rate <0.0001
About Hero
7-year's experience in LED screen, own factory has the ability of processing, researching and developing Led display to make sure the prolificacy, a strict quality control process to make sure the quality of display screens.
PH 5mm indoor led display used in hotel
Warranty
1. If the area is larger, we usually require customers or dealers to send someone to come to factory to study, training time a week, the main study screen operation, maintenance. Company training and providing accommodation are free of charge.
2. If the area is in more than 20 square meters of outdoor full color, it must have all accessories.
3. Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
