North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Type:
SMD3528
Module Size:
300X150mm
Transparency:
25%
IP Degree:
65
Module Unit Demension:
300X900mm
Display Type:
LED Video Display
Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
1/8 Scan
Certification:
CCC
Pixel Configuration:
1R,1G,1B
Application:
Shopping Guide
Pixel Pitch:
9.375mm
Pixel Density:
11377dots/Sq.M
IP Rating:
IP65
System Operating Platform:
Window 7,XP
Product Description
P9.375 Curved LED Screen Display with full color, good for stage background
Product Advantages:
1. Transparent design, light transmittance up to 25%, good lighting and wind transparent, good heat dissipation,special design for stage background
2. Super slim with minimum thickness of 7mm and maximum thickness of 17mm
3.Ligh weight, single unit weight only with 1.85kgs
4.Adopt of metal connection component, fastness and durable
5.Easy bend for defferent shapes,like S, Circle, Curve etc, also can Foldable from Horizontal and Vertical
6.Streamline design and beautiful appearance
7.Good waterproof IP65, can used for outdoor environment
8.Single module design, can dismantle by single module, fast and easy to maintain
9.High definition,high gray scale, high contrast ratio and refresh rate, meet the request of HD vidicon

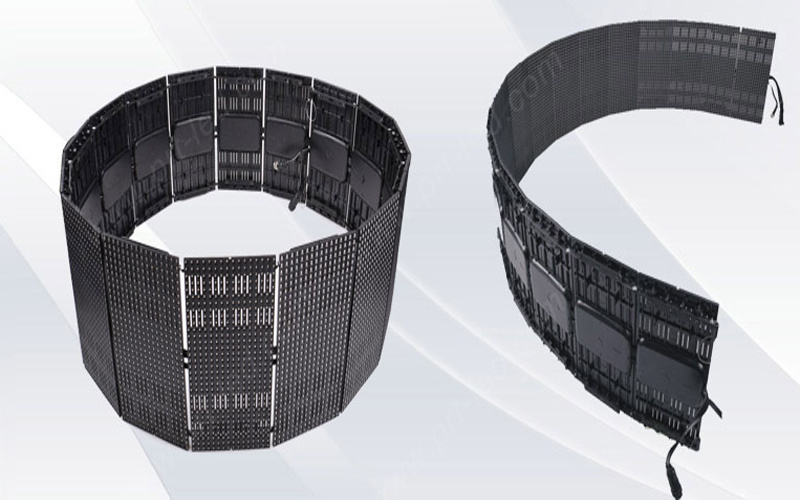

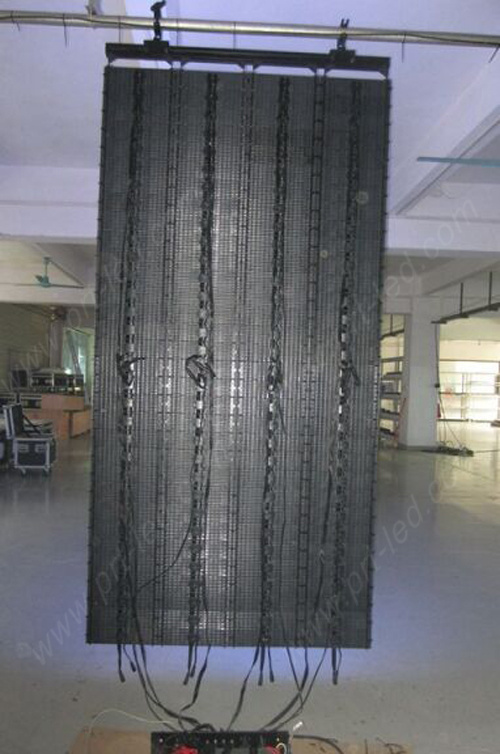

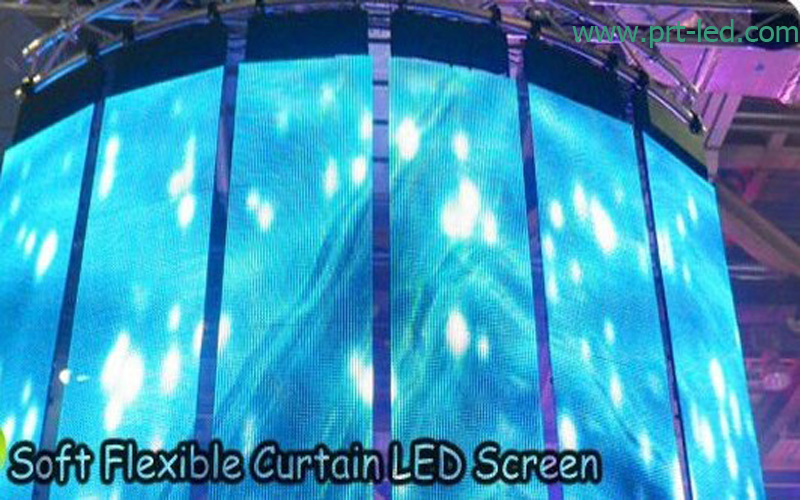

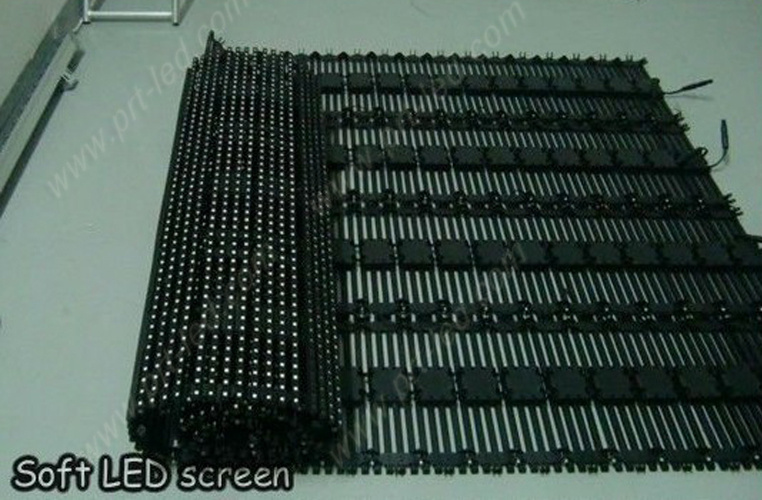

More pictures for reference:
Main parameter as below:
Specificaion:
Type Number
SLOR9375
Unit module composition
L1×H6module
Pixel pitch(MM)
9.375
Unit module pixel
L32×H96dot
LED Standard
SMD3528
Max.power consumption
135W
Pixel composition
3 IN 1
Module material
PC
Pixel density(dot/m2)
11377
Protection level
IP 65
Demensions(mm)
L300*W150
Viewing angle
110°
Module Power
25W
Working temperature
-20ºC~+50ºC
Module resolution(L×W)
32*16
Working humidity
10%~90% RH
Scan mode
1/8
Life span
≥30,000 hours
Grey
65536
Working voltage
AC 220 V / (110V) ±15% , 47~63 HZ
Refresh rate(Hz)
≥2000
Signal transfer
Lan cable
Brightness (CD/m2)
2000
Control system
LED FLASH Computer Control System
Best viewing distance(M)
9.5
Computer platform
Windows XP,Windows 7
Unit module dimension
L300×H900mm
Video Sources available
DVD, VCD, VCR, TV, camera with PAL/NSTC
Control case size
535×200×150mm
Control pixel
L128×H192dot/L64×H384dot
Control area dimension(mm)
L4×H2unit/L2×H4unit
Control case max.power
1200W
Control area dimension(mm)
W1200×H1800MM/W600×H3600MM
Effetive control distance
≤ 100 M (by LAN) , ≥ 100 M (by fiber optic with multi-module or single module)
