Moduel Size:
320*160mm
Module Points:
32*16dots
Brightness:
More Than 6500CD
LED Display Encapsulation:
346
Frame Frequency:
More Than 60Hz
Gray Color:
4096 Lever, Can Display 16.7m Colors
Drive Mode:
Constant Current Drive 1/4 Scan
Best Viewing Distance:
8~150m
Driving:
Driving IC Mbi5026 / Mbi5024
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Pitch:
10mm
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
600W / m²
Pixel Density:
10000 dot / m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
ETL
Product Description
Brilliant Optoelectronic Technology Co., Ltd
JINGCAI(FUJIAN)PHOTOELECTRICITY IS founded in 2005, company registered capital of 20.18 million ,It is own plant area 20000 square meters,having independent living and production area. The company specializes in Reacher department and manufacturing LED display system products,the strength of technology companies ranked in the forefront of the Southeast Region, Is vigorous strengh team.
Product Description
1) LED display is widely used in station, shopping centre, square, airport, advertising center and etc. 2) Environmental protection and energy saving advertising tool. 3) Advanced digital technology for video. Cartoon, graphics, text, pictures and etc display. 4) Outdoor waterproof and windproof LED display 5) High brightness and high definition LED display 6) Light weight and ultra thin 7) Good stability, five-star after-sale service. 8) Professional LED sign LED sign display LED outdoor display LED video display LED display LED Video Sign LED Video Screen LED Video Display manufacturer.

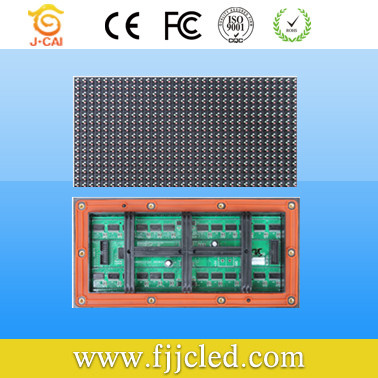

1,Last design forP10 full color led display module size:320*160mm, module size:320*160mm, brightness more than 6500CD ,
2,The led display module adapt lamp drive separation,The led module drive ic use MBI5024GF
2015 latest desighn Outdoor P10 full col
module number
P10-A
Outdoor P8 led module
Pixel pitch
10mm
8MM
Pixel Density
10000dots/sqm
15625dots/sqm
LED Configuration
1R1G1B DIP346
1R1G1B DIP246
cabinet size
960×960mm
768*768
Cabinet Resolution
96× 96dots
96*96dots
IP Rating (front/back)
IP65/43
IP65/43
Brightness
7000CD
8000cd
Ave .pover Consumption
250W/sqm
260W/sqm
Max. Power Consumption
750 W/sqm
780w/sqm
viewing Angle
110° /55°
110° /55°
Gray Scale
14bit
14bit
Operating environment
Outdoor
Outdoor
Operation power
AC100~240V 50/60HZ
AC100~240V 50/60HZ
Operating Temperature
-20ºC~+50ºC
-20ºC `+50ºC

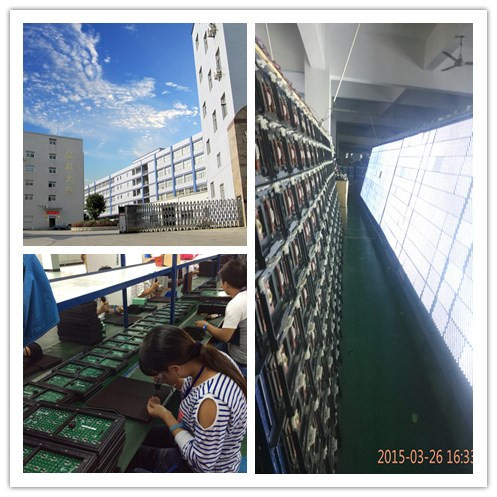

Jingcai (Fujian) Photoelectric Co., Ltd. Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
