North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Refresh Rate:
2000 Hz
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
600W / m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Application:
Stage Performance
Certification:
ETL
Pixel Pitch:
8mm
Pixel Density:
2828/Sqm
Product Description

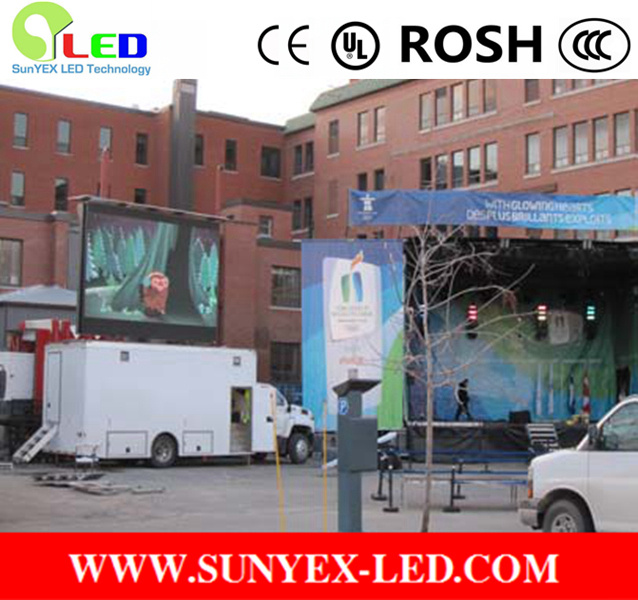

P8 LED Truck Display
LED
COLOR
WAVE LENGTH
BRIGHTNESS(mcd)
Viewing Angle H./V.
Red
620
800
140°/140°
Green
520
2100
140°/140°
Blue
470
480
140°/140°
PIXEL
Pitch
8
Model
SY-OF8-3C
Configuration
1R
1G
1B
MODULE
Specs
Width
Height
Total
Configuration
32
pixels
16
pixel
512
pixels
Size
256
mm
128
mm
32,768
mm²
CABINET
Configuration
96
pixel
96
pixel
9,216
pixels
Size
768
mm
768
mm
589,824
mm²
Weight(KG)
24
Consumption(max)(W/M²)
800
SCREEN
Brightness
>6000 nits
Color Depth
12 Bit
Brightness Control
By software
Colors
16.7 million
Viewing Distance
>10m
Gray Scale Rectificaiton
4096 grade
Power Supplier
220V/40MA
Drive Mode
1/4 scan
Refresh Rate
2000 HZ
Control Mode
Synchronization control
Lifetime
100,000 Hours
Running Temperature
-25ºC ~ +50ºC
Humidity
10% ~90%
Singal Available
DVI,S-VIDEO, RGB, VGA and ETC.
Running Files
Text, Animation, Picture, Video and etc
Water Proof
IP65
Warranty
3 Years
1Pice TermEXW
2Payment TermT/T: 30% Down Payment before Production, the Balance before Shipment.
3SoftwareEnglish
4User ManualEnglish
5Installation InstructionAvailable
6On-Site AsistantTwo Engineers Available
7Training Available either on-site or at SunYEX Factory
8WarrantyThree Years In-house Factory Repair/Replacement
9Mean Time20 Working Days Since Down Payment
10Quote Validity30 Days
