LED Encapsulation:
SMD3535
Module Size:
250X250mm
Cabinet Size:
500X500mm
Cabinet Material:
Die-Cast Aluminum
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
300W / m²
Display Type:
LED Video Display
Certification:
RoHS
Pixel Pitch:
8.928mm
Pixel Density:
12546dots/Sq.M
Scanning Mode:
1/7
Application:
Advertising,Stage Performance,Rental
Product Description

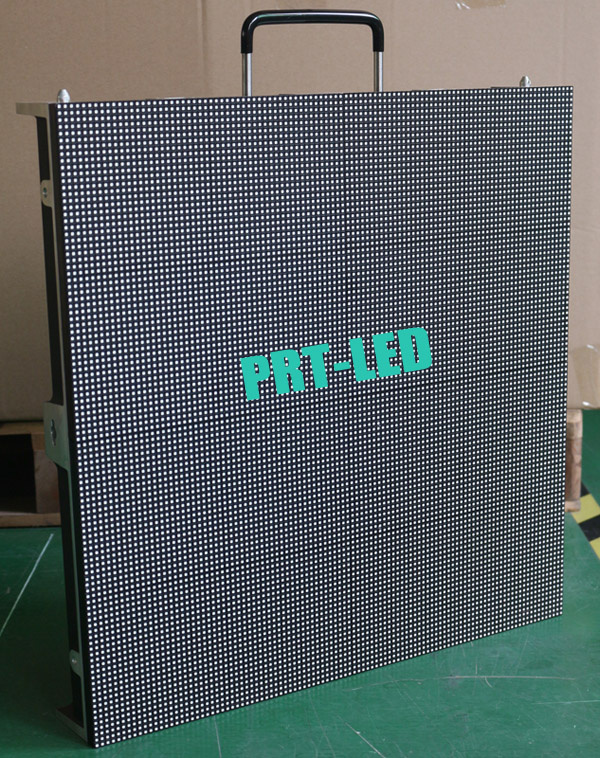

P8.928 Outdoor Full Color LED Display with die-casting aluminum cabinet 500x500mm or 500x1000mm for outdoor rental or permanent install,
1.SMD3535 led encapsulation confirm high brightness and wide view angle
2.Good waterproof IP65, long life span>100000Hours
3.Bigge pixe pitch, long view distance,can be seen from 100M away
4.With Die-casting aluminum cabinet, light weight and stability,can stand singly
5.With fast locks and aviation plugs for quickly connection, convenient to combine and dismantle
6.Only with one power supply,low power consumption, no fans low noise created,

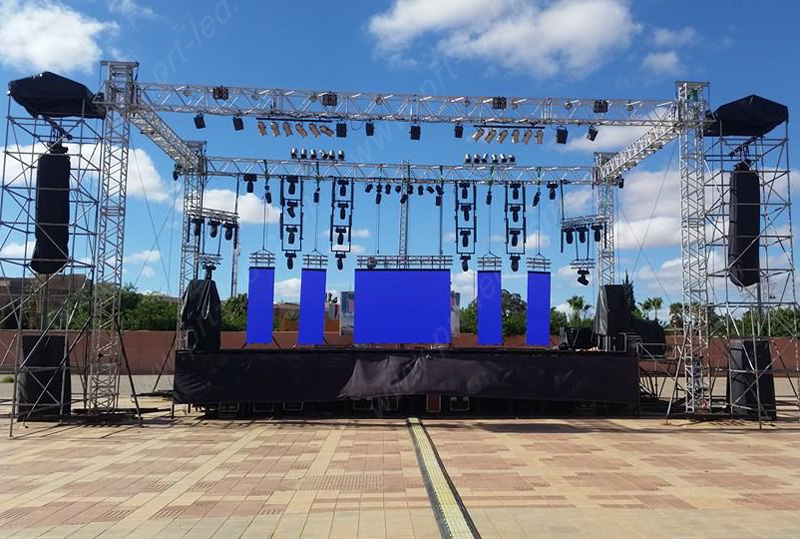

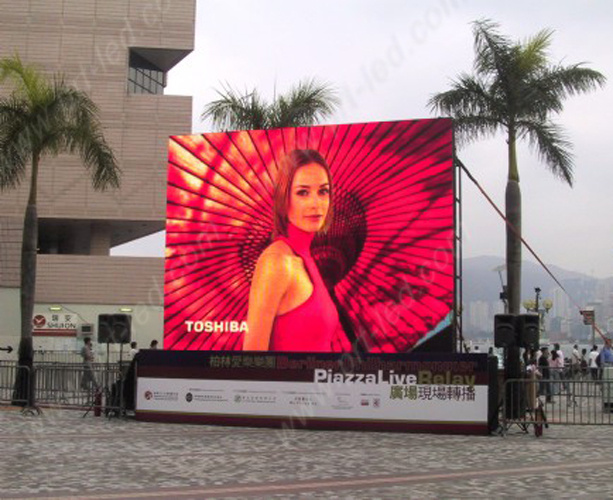

7.Widely used for stage, concert, show, banquet, wedding, rental display, outdoor advertising
P8.928 Outdoor full Color LED Screen Specification
Pixel pitch
8.928mm
Pixel Configuration
1R1G1B
LED component
SMD3535 black
Size of module
250mm x 250mm
Resolution of module
28x28
Size of cabinet
500mm x 500mm x 75mm
Resolution of cabinet
56x56
Material of Cabinet
Die-casting Aluminum
Weight of Cabinet
<8KGS
Brightness
>6000cd/m²
Density
12546dots/m²
Best viewing angle
140 /140
Best viewing distance
8-100M
Maximum power consumption
<800W/m²
Average power consumption
<300W/²
Driving method
1/5 scan
Control method
Synchronization
Gray scale
65536
Colors
256*256*256
Color temperature
3200-9300k
Uniformity
97%
Working voltage
AC220V/110V±10%
Working temperature
-20ºC~+50ºC±10%
Working humidity
10% ~ 90%
MTBF
10,000 hours
Frame frequence
50/60Hz
Refresh frequence
>1800Hz
IP grade
IP65
Life Span
100,000 hours
Data transafer method
RJ45
Pratical standard
CCC TUV-CE ETL etc.
Effectivce Communication Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor
PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform
WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
