DOT-by-DOT Calibration:
Signal Dual Backup
Matching Rtm Software:
High Density
Display Function:
Video Display
Pixel Pitch:
7.62mm
Pixel Configuration:
1R,1G,1B
Display Type:
LED Video Display
Application:
Monitoring, Education, Conference, Transportation
IP Rating:
IP54
Certification:
ETL
Pixel Density:
17222 Pixel/M2
Scanning Mode:
1/32 Scan
System Operating Platform:
All System
Product Description

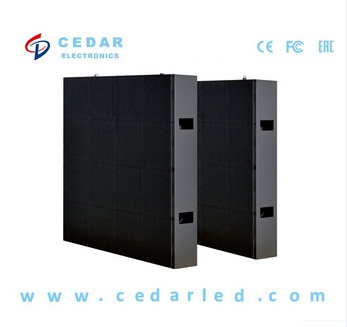

P7.62 SMD LED Display, Supper Clarity & Low Gray Level, Energy Saving for High Efficiency, Large Viewing Angle, High Uniformity, High Reliability, Excellent Color Mixing.
Parameters
NP7.62-SMD
Pixel
Pixel Set
3528 LED 1R1G1B
3528 LED 1R1G1B
Pixel Pitch(mm)
7.62
7.62
Pixel Density(Pixel/m2)
17222
17222
Module
Module Resolution(W/Pixel × H/Pixel)
32 × 32
32 × 32
Module Size(W/mm × H/mm)
244 × 244
244 × 244
Cabinet
Receiving Card Covering (W/Pixel × H/Pixel)
128 × 128
128 × 128
Cabinet Flatness(mm)
≤ 1
≤ 1
Maintenance
Frontside Maintenance
Frontside Maintenance
Optical
Do-by-Dot Calibration
Available
Available
Brightness Balanced(cd/m2)
≥ 800
≥ 1200
Brightness Adjustment
256 Grades Manually / Automatically
256 Grades Manually / Automatically
Color Temperature(K)
3000 - 10000 Adjustable
3000 - 10000 Adjustable
Horizontal View Angle( °)
120
120
Vertical View Angle( °)
120
120
Brightness Uniformty
≥ 95%
≥ 95%
Electrical
Max Power Consumption(W/m2)
400
450
Average Power Consumption(W/m2)
130
150
Input Voltage
AC110~240V(50-60Hz)
AC110~240V(50-60Hz)
System Process
Driving Mode
Constant(1/16 Scanned)
Constant(1/8 Scanned)
Frame Rate(Hz)
60
60
Refresh Frequency(Hz)
≥ 2400
≥ 2400
Grey Scale(Bit)
14
14
Color Capacity(Trillion)
4.4
4.4
Enviromental
Typical Lifetime(h)
80000
80000
Operating Temperature(ºC)
-20 ~ +50
-20 ~ +50
Storage Temperature(ºC)
-35 ~ +85
-35 ~ +85
Operating Humidity(RH)
10% ~ 90% , No Condensing
10% ~ 90% , No Condensing
Storage Humidity(RH)
10% ~ 90% , No Condensing
10% ~ 90% , No Condensing
Functional
Available for Dot-by-Dot Calibration
Available for Signal Dual Backup
Available for being controlled by Cedar RTM Software
Available for different signal format, such as AV,S-Video,VGA,DVI,HDMI,SDI,DP etc.
Most of parameters can be customized according to requirements or special enviroments
Changchun Cedar Electronics Technology Co., Ltd is a professional LED display and LED lighting product manufacturer in China. Belong to CIOMP under Chinese Academy of Science, which integrates R&D, production, marketing, services and postgraduate education. It is a member of China Solid State Lighting Alliance (CSA) and director of LED Display Application Branch, COEMA.
Cedar Electronics has obtained over 60 patents in LED imaging and LED lighting techniques since its establishment in 2001. Its products have got Chinese 3C, CE, RoHS, UL, FCC and GOST-R Certifications.
Cedar Electronics owns 30, 000 square meter LED comprehensive experimental and producing base equipped with world-class facilities and fully automatic production lines and has established LED display and lighting product testing laboratories, such as luminosity distribution testing laboratory, high-low temperature and humid environment adaptability laboratory, electrical characteristics and optical component testing routine laboratory to ensure the quality of product. Cedar has formed a complete industrial chain from product R&D, device encapsulation, mold structure design, manufacture, inspecting & testing to installation and after-sale service.
For LED display, Cedar has three product types: Integrated 3-in-1, SMD, Individual Inserted Lamp. Cedar LED display product has unique advantages in brightness, uniformity, clarity, color richness, especially in large area display. LED display are widely used in outdoor advertising, television studio hall, public security, fire protection, hospitals, airport terminals, schools, railway stations, stadiums, large plaza and other public places.
For LED lighting product, Cedar has over ten product categories and thirty product types such as LED tube, bulb, candle, down light, spotlight, PAR light, panel light, ceiling light, high bay light and street light, etc. Its LED lighting products are widely used in industry, commerce, transportation and household field.
Cedar has successfully completed many LED display and LED lighting projects at home and abroad, domestic projects such as Shanghai Jinmao Tower, the National Grand Theater, Shanghai World Expo, Shanghai Metro, Beijing Metro, Beijing -Shanghai Express Railway, Beijing-Shenyang Highway etc.; Abroad projects such as Maryland church-USA, Stellar Wholesale City-South Africa, Moscow Chain Supermarket-Russia, Belarus Homeland Company Advertising Screen.
Cedar export markets include Russia, Belarus, Ukraine, USA, Canada, Italy, Japan, Indonesia, UAE, Iran, and South Africa.
Cedar dedicates to make world-class product and provides professional LED solutions for customers with all-round supporting service.
