Product Description

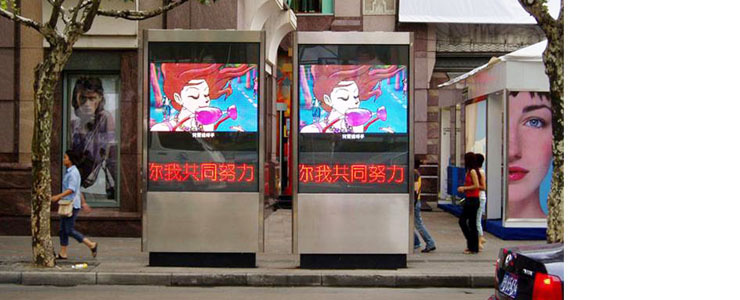

This serial of SMD Outdoor Full Color LED Display Screen is a revolutionary development that Orient contributes to outdoor full color LED display, which made the outdoor LED display with precise picture and super viewing angle be possible. Its key component is the integrated high density outdoor full color DOT-matrix module, which is different from the traditional outdoor full color LED display that is composed by single LED diode. It is a revolution from point light source to sphere light source. There is integrated LED chip with Red, Green and Blue colors in the LED cup of every pixel. Thus, every pixel will be lighting in mixed color. The module outside is covered by a plastic mask, while inside is sealed up by silica gel.
Module Size(W * H)
192mm*96mm
Pixel Configeration
1R1G1B
Pixel P itch(mm)
6mm
Pixel Density
27777dots/ m 2
Display Resolution
32dots*16dots
Driving Method
1/4 duty
Cabinet Size(W * H)
1344mm*1440mm
Module Qty
105pcs
Cabinet Resolution(W* H)
224dots*240dots
Cabient Pixel
53760dots
Weight
200kg/pc
Area
1.935m 2
Avarage Power Consuption
450W/m 2
Standard Max Consuption
1050W/m 2
Protection Grade
IP65
Brightness
4800CD/m 2
System Operating Humility
10% ~ 90% RH
Oprating Temprature
-20& ordm; C~+60& ordm; C
Optimal Viewing Distance
2m-60m
Display Color
1.070, 000, 000
Gray Scale
16384
Frame Frequency
60HZ
Refresh Speed
> 2000HZ
Power Supply
110V 220V/50HZ
MTBF
≥ 10000HOURS
Life Span (50% brightness)
≥ 100, 000HOURS
Control Mode
synchronization with PC
Oprating System
WINDOWS(98/2000/XP/Vista)
Input Signal Format
VGA, DVI, RGBHV, PbPr(HDTV), Composite, S-Video, TV
Orient Screen Technology Co., Ltd.Is an integrated service supplier, which is specializing in the R&D, production and market of LED display products.The company has many automatic production line, advanced manufacturing equipments and perfect testing devices, guarantee a monthly capacity of 5000 square meters.
Most of our engineers have more 10 years experience, which laid a solid foundation for orient's new product research and development.For years, Orient has been providing with superior quality LED display products and services.Moreover, our products are exported to oversea markets around European countries and Middle East area, such as the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain etc., more than 80 countries and regions.Currently, our company has passed ISO9001:2000, CE, RoHS certification.
Orient responds to national energy-saving and emission reduction call voluntarily, complying with the development trend of green environmental protection, rely on the high-quality management team, modern management and the powerful resources of Shenzhen, Orient is dedicated to offering the best LED display solution services to our clients, which is played an important role in global environmental protection and energy-saving development.
