P6 Outdoor Waterproof DIP Rental Full Color LED Wall, LED Screen, LED Display

Prod Model:	p6 outdoor led display
Markets:	North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Module Size:	192*96mm
Mbtf:	9000hours
Refresh:	2200Hz
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Average Power Consumption:	350W / m²
Scanning Mode:	1/8 Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	FCC
Pixel Pitch:	6mm
Pixel Density:	27777dots/M2

Product Description

Product Description

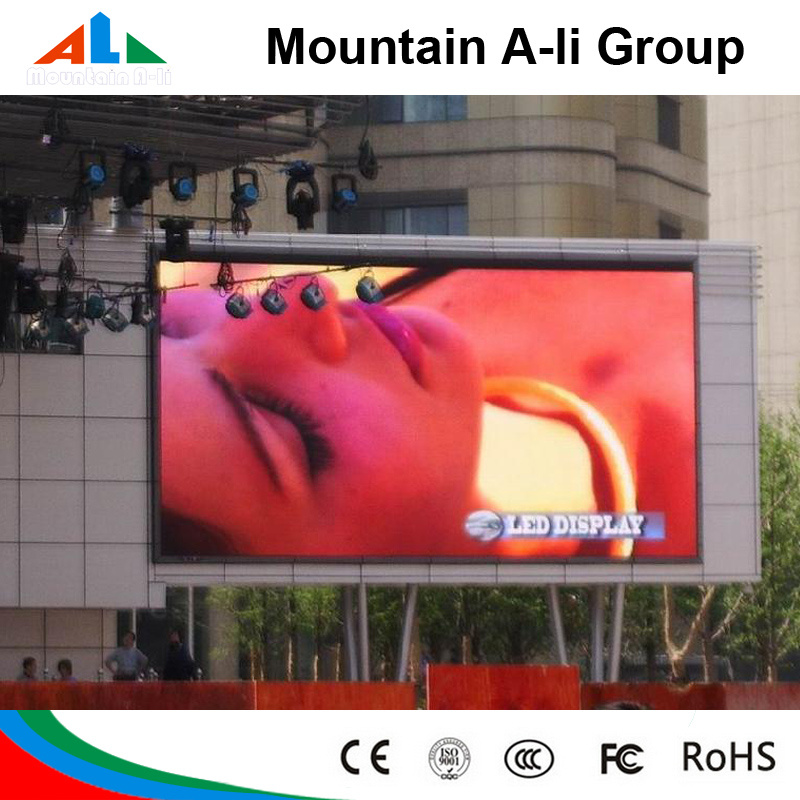

Outdoor Full Color LED Display (P6 advertising LED Display Screen)/LED sign/LED wall
1. Full color outdoor LED display/led display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.

(LED stage display, LED Outdoor video wall, Wedding LED display, The stage LED electronic screen, LED large screen full color display, advertising led display, outdoor led display, indoor led display)

2. P6 Outdoor LED display Features of the product:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.

3. Description: LED Display /led display screen/LED sign/LED video wall

1). Model No.: P6mm, P7mm, P8mm, P10mm, P12mm, P16mm, P20mm(DIP LED)
2). Display Color: 256*256*256
3). LED Chips: Nichia, Cotco, CREE, AXT, Taiwan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight box, wooden box package
7). Guarantee: 3 year with parts

8)Payment term: 30% T/T in advance and balance before delivery.
9)Delivery time: 7-10 working days after 30% advance payment.
10). Quality warranty: Two years quality warranty and lifetime technology support and
Maintenance from the second year. If you improperly operate or something wrong
With our products, we are responsible for the maintaining and repairs instruction
Or guide free of charge.
11) Free training: You can send your engineers who have knowledge of electronics
And information to our factory and we provide free technical training, which
Contains training operation and maintenance of the LED display at our factory. We
Also offer the instruction manual, software, test report, drawing steel structure and
So on.
12) Installation: We offer you the engineer to install the LED display, you have to offer
Him the two-way air tickets and accommodation as well as visa.
Or we offer you the training on the LED display installation and
Repairing for free after you live in our company, or we can guide you to install the
Screen by remote control.

Certification(Mountain A-Li LED DISPLAY)

3C certification
CE certification
ISO9001
ROHS certification
IP65 certification
EMC certification

The Technical Parameters of  p6 led screen Dip 3 in 1 The specifications of modules Items Parameter Product Model  P6 Full Color Led Module Module size 192mm*96mm  Pixel pitch  6mm  Pixel density   27777dots/m2 Pixel configuration RGB 3 in 1  Module resolution 32dots(W)*16dots(H) Module maximum power consumption 20W  Module Thickness 2.7CM Module Weight 0.4kg Driving method Constant Current Driving Scanning method 1/8 scan Interface HUB75B Brightness   ≥7000cd/m2  The specifications of cabinets Cabinet size 768mm x 768mm  Module quantity 32pcs  Power supply 5V/40A  5V/60A Cabinet resolution   128*128dots  Optimal viewing distance 5M ~ 50M Optimal viewing angle 160°(W) 120°(H)  RHWorking temperature (Work :-40 degree~ +60 degree )   System operating humility 10%-95% The specifications of power supplier Operating Voltage AC220V±10%  Average power consumption 350W/H  Maximum power consumption ≤600W/ m2  Electric current  ≤20mA(single LED) The specifications of control card Control Panels  Pentium4 or above  Operating system  WIN98/2000/NT/XP Control model Synchronization with PC The specifications of the main technical parameters  Driving device Constant Current Driving  Refresh rate ≥2200HZ  Grey scale RGB Each 256, can display 16.7M colors) MTBF ≥9000hours Power switch Automatic Switch Display Mode 800*600/1024*768/1280*900
