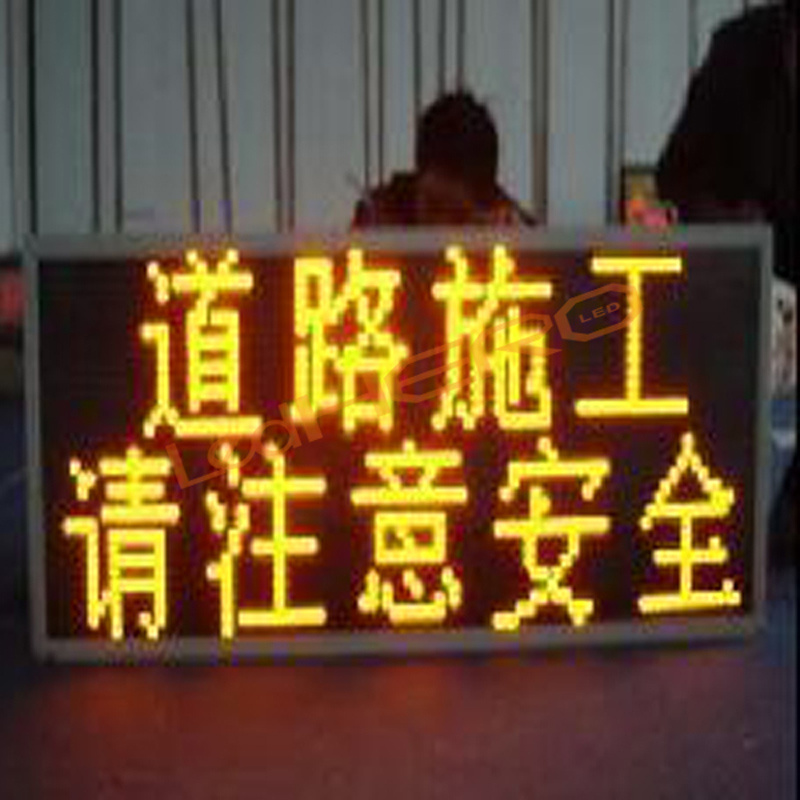

P6 outdoor traffic LED display for guidance
specification:
Part Number | HERO-OD |
Resolution | 16(H)×8(V) |
Pixel Pitch | 6mm |
LED Configuration | 1R1G1B DIP346 |
Pixel Density | 3906pixels/ m2 |
Module Size | 258*128mm |
Driving IC | MBI5024 |
Driving Method | Static Scan, Constant Current |
Cabinet Weight | 65kg/pcs |
Mechanical Ratings |
Hanging Weight Support | 2T |
Surface Flatness | ±0.25mm |
Optical Ratings |
Brightness | 8500~10500cd/ m2 |
View Angle | 110°/70° |
Gray Scale | 16bits |
Display COLOR | 281 trillion |
Brightness Adjustment | 0~100% |
Power Supply |
Operation Power | AC220V/50HZ or AC110V/60HZ |
Max. Power Consumption | 880W/ m2 |
Average Power Consumption | 352W/ m2 |
Control System |
Control Mode | Synchronous display with control PC by DVI |
Frame Update Frequency | 60~85Hz |
Screen Refresh Frequency | 300~1000Hz |
Gamma Correction | -5.0~+5.0 |
Support Input | Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
Control Distance | Ethernet cable<120m or Fiber Optic<10Km |
Support VGA Mode | 1024×768, 1280×1024, 1600×1200, 1920×1280 |
Brightness Correction | Pixel, Module, Cabinet |
Environmental |
Operating Temperature | -20°~+60° |
Operating Humidity | 10~95% RH |
Operating Life | 100,000hours |
MTBF | 10000hours |
Protection Level | ~ |
Out of Control Rate | <0.02% |
Description:
Traffic LED display contain photosensitive control system and it can adjust the brightness automatically according to outdoor environment,it's 1/3 energy-saving environment-protect,it reduce the cost greatly and make viewing effect better.
1.with high refresh rate and gray scale,deliver vivid picture.
2.program of advertisement in display is changeable,it can display difference sings 24/7.
3.support double signal cable for hot backup,when one network cable break off,another one will work automatically.
4.it adopt highly efficient fiber-optic transmission system to reduce signal delay or decline,which ensure theconsistency of the display.
5.controlled by remote IP and clustered-control.
Applications:
Widely used in stage rental events ,exhibition,wedding,fashion show,upscale disco,large hall,film,television studio and digital stage and so on.
Packing and transportation:
Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.
About Hero:
7-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.
After-sale service:
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.
Officer website: Http://www.led-hero.com
Shenzhen LED-HERO Electronic Telechnology Co., Ltd was found in early 2007. Hero committed to the next generation of LED optoelectronic products development, production, sales and service. It is leading the trend of LED industry and providing a full range of solutions to its customers. It has become a modern, large scale, professional LED Photoelectric comprehensive product integration supplier. The products sell well in over 50 countries and regions in Europe, America and Middle East, besides more than 20 provinces across China.
"Hero' S products and solutions include various of indoor and outdoor LED display screen and lighting products with its advanced technology, superior technology design, personalized design elements, large-scale production capacity and diversified cooperation strategy to provide full LED integrated solutions.
"Beat by wisdom, win in morals"is still our insistent faith, Quality is the life of a company. From material purchasing to product researching, development, production, testing, packaging and shipment, Hero abides ISO9001: 2000 international quality control process to make strict control and scientific management, and to achieve perfection. The products have passed the RoHS, CCC, CE and other international quality certification which ensure that each product are stable, reliable, environmental protective.
Excellent talent is the soul. Hero relies on the humanized management, promoting hero culture, exerting employees to have masters spirit. It has established a systematized, specialized production procedure. And it has built a strategic alliance with LED raw materials suppliers and vendors which has realized the resource sharing, division, cooperation, mutual complementarities and high-efficient operation for providing an effective guarantee to Hero' S scale production and diamond quality.
To select Hero, you will win the promise of a hero!
