DOT-by-DOT Calibration:
Signal Dual Backup
Matching Rtm Software:
High Density
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Display Type:
LED Video Display
Certification:
FCC
Pixel Pitch:
6
Average Power Consumption:
270W/M2
Pixel Density:
27777 Pixel/M2
Scanning Mode:
1/32
Application:
Monitoring Center, Conference, Education, TV
Product Description

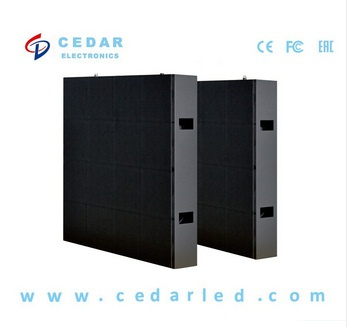

P6 SMD LED Display, Supper Clarity & Low Gray Level, Energy Saving for High Efficiency, Large Viewing Angle, High Uniformity, High Reliability, Excellent Color Mixing.
Parameters
WP6-SMD
Pixel
Pixel Set
3535 LED 1R1G1B
Pixel Pitch(mm)
6
Pixel Density(Pixel/m2)
27777
Module
Module Resolution(W/Pixel × H/Pixel)
32 × 16
Module Size(W/mm × H/mm)
192 × 96
Cabinet
Cabinet Resolution(W/Pixel × H/Pixel)
128 × 128
Cabinet Size(W/mm × H/mm)
768 × 768
Cabinet Material
Iron
Cabinet Area(m2)
0.5898
Cabinet Flatness(mm)
≤1
Maintenance
Backside Maintenance
Optical
Dot-by-Dot Calibration
Available
Brightness Balanced(cd/m2)
≥5500(@9300K, Cablibrated)
Brightness Adjustment
256 Grades Manually / Automatically
Color Temperature(K)
3000 - 10000 Adjustable
Horizontal View Angle( °)
160
Vertical View Angle( °)
120
Brightness Uniformty
≥ 95%
Electrical
Max Power Consumption(W/Cabinet;W/m2)
480/820
Average Power Consumption(W/Cabinet;W/m2)
160/270
Input Voltage
AC110~240V(50-60Hz)
System Process
Driving Mode
Constant(1/4 Scanned)
Frame Rate(Hz)
60
Refresh Frequency(Hz)
≥ 2400Hz
Grey Scale(Bit)
14
Color Capacity(Trillion)
4.4
Enviromental
Typical Lifetime(h)
50000
Protection
IP65
Operating Temperature(ºC)
-20 ~ +50
Storage Temperature(ºC)
-35 ~ +85
Operating Humidity(RH)
10% ~ 90% , No Condensing
Storage Humidity(RH)
10% ~ 90% , No Condensing
Functional
Available for Dot-by-Dot Calibration
Available for Signal Dual Backup
Available for being controlled by Cedar RTM Software
Available for different signal format, such as AV,S-Video,VGA,DVI,HDMI,SDI,DP etc.
Most of parameters can be customized according to requirements or special enviroments
