Module Size:
192mm*96mm
Module Resolution:
32dots(W)*16dots(H)
Max Power Consumption:
20W
Module Thickness:
2.7cm
Module Weight:
0.4kg
Interface Way:
Hub75b
Driving Device:
IC Constant Current Driving
Control Mode:
Synchronization with PC
Power Switch:
Automatic
Display Mode:
800*600/1024*758/1280*900
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
350W / m²
Scanning Mode:
1/8 Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC,EMC,IP65
Pixel Pitch:
6mm
Pixel Density:
27777
Product Description
Product Description

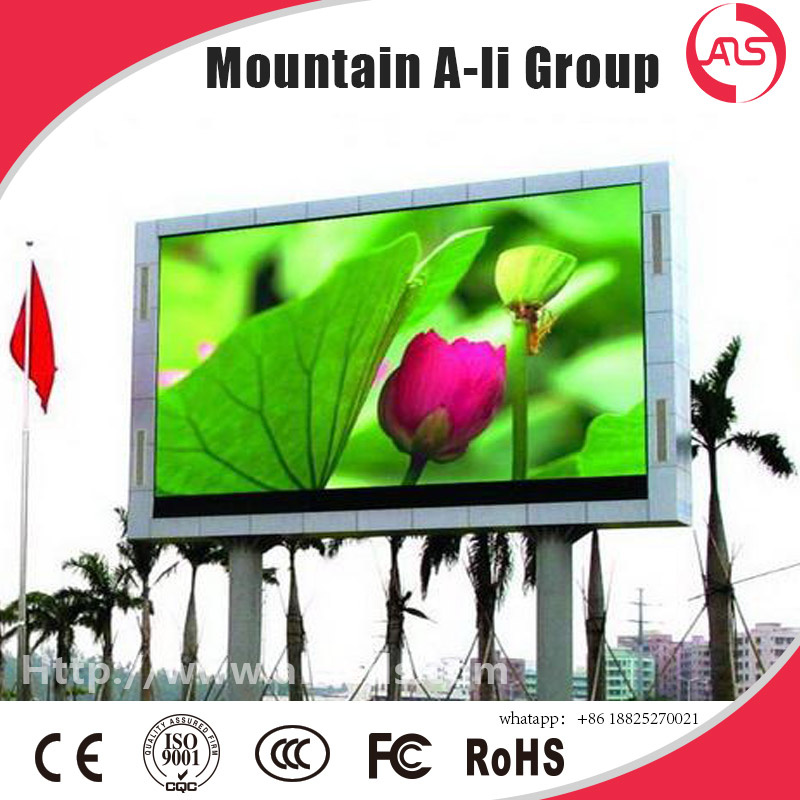

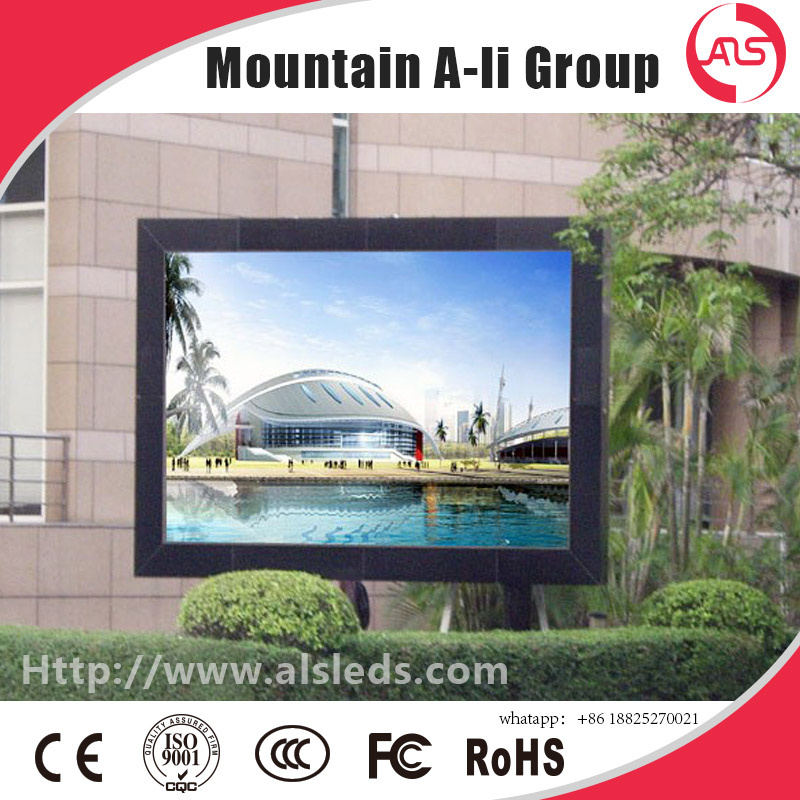

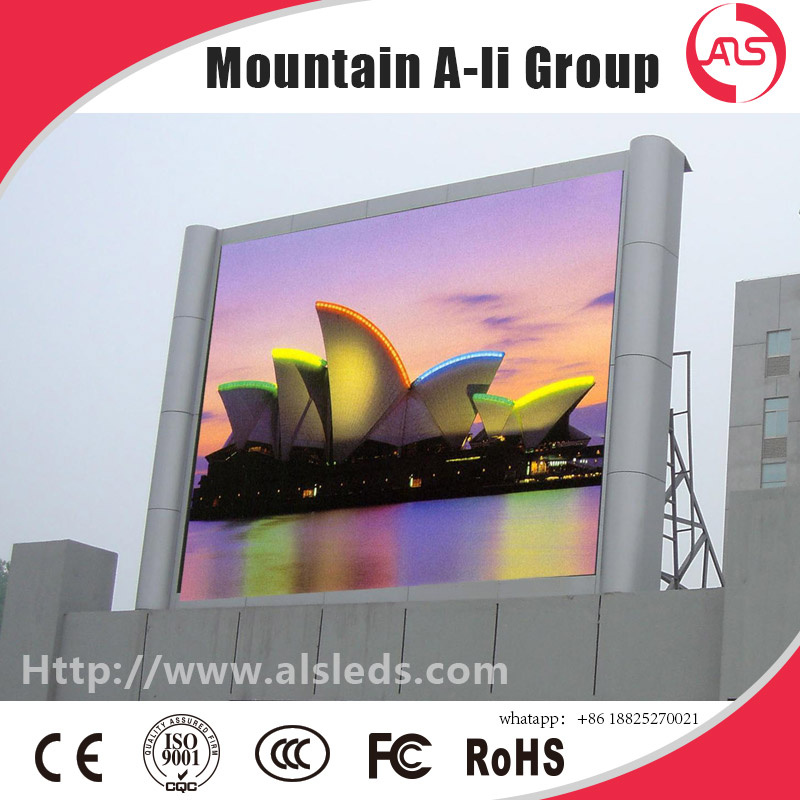

P6 outdoor full color LED display is used hotel hall, stage, and so on. P6 outdoor full color LED display is most recently researched and developed the market at present, it attract a lots customers consult
P6 outdoor full color LED display have many advantages: 1.Low energy consumption 2. Long lifespan 3. Hight Brightness 4.Better waterproof, better radiation,better dust proof. 5. It can moving, hang install, seat install, steel structure design 6. Meet synchro full color video or out-sync full color video display 7. Have designed a good heat dissipation, keep globose the LED display working. p6 full color led display technical parameters
Number
Item name
Parameter and index
unit module
1
Module Size
192mm*96mm
2
Module Resolution
32dots(W)*16dots(H)
3
Pixel Pitch
6mm
4
Pixel composition
1R1G1B
5
Pixel pitch
4mm
6
Brightness
≥7000cd/m²
7
Scan Method
1/8 Scan
unit cabinet
1
Cabinet Size
768mm*768mm
2
Cabinet Resolution
128*128dots
Power
1
Operation Voltage
AC220V±10%
2
Average Power
350W/H
3
Max Power Consumption
≤600W/m²
4
Current
≤20mA(single LED)
